5.2.5 Dynamic DHCP Snooping Table
This page display the dynamic IP assigned information after DHCP Snooping mode is disabled.
All DHCP clients obtained the dynamic IP address from the DHCP server will be listed in this table
except for local VLAN interface IP addresses.
Entries in the Dynamic DHCP snooping Table are shown on this section

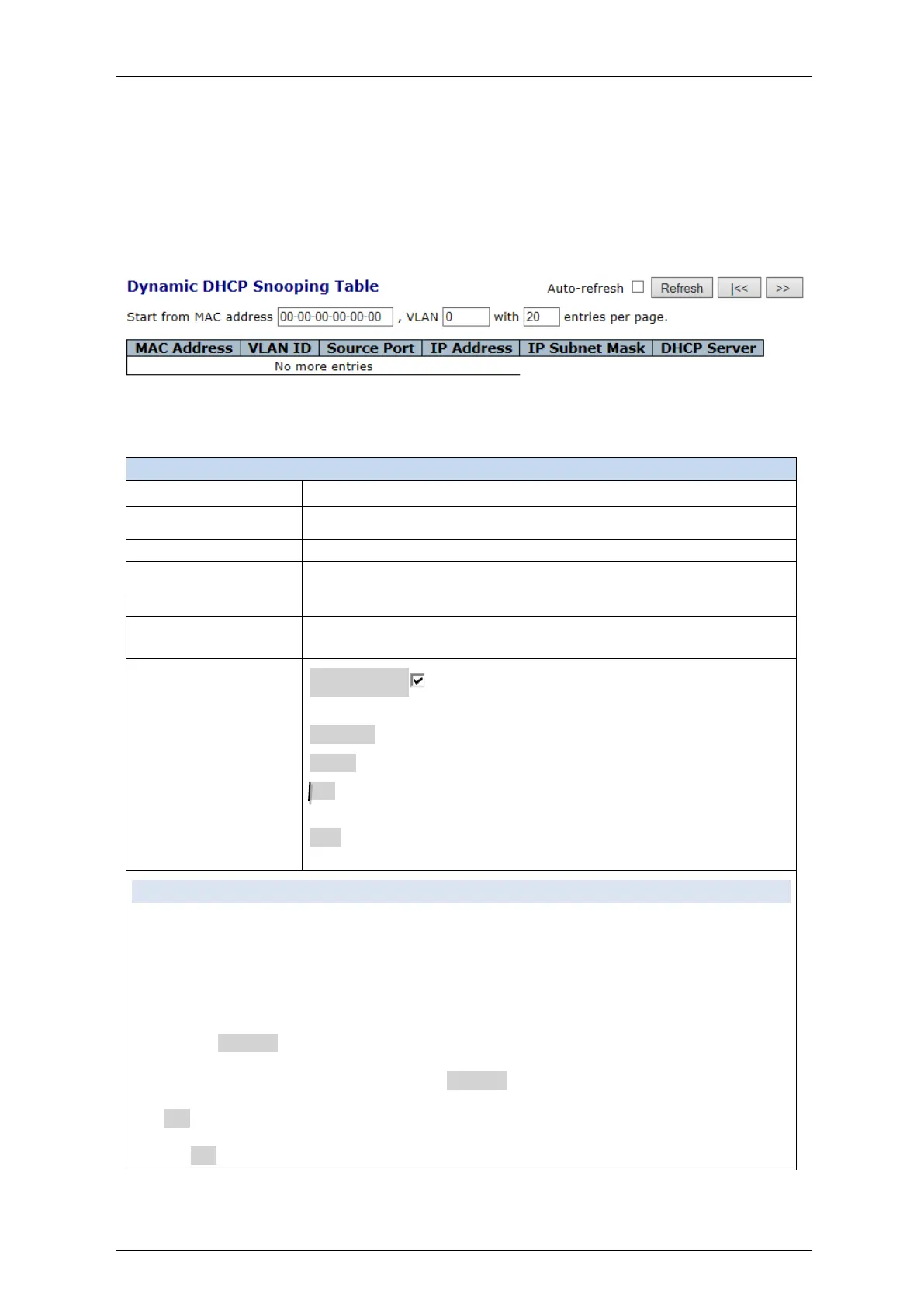

Figure 5-11: Dynamic DHCP Snooping Table
Table 5-10: Dynamic DHCP Snooping Table Parameters
Dynamic DHCP snoopingTable
MAC Address
User MAC address of the entry
VLAN ID
VLAN-ID in which the DHCP traffic is permitted
Source Port
Switch Port Number for which the entries are displayed
IP Address
User IP address of the entry
IP Subnet Mask
User IP subnet mask of the entry
DHCP Server
Address
DHCP Server address of the entry
Buttons
Auto-refresh : Check this box to refresh the page
automatically. Automatic refresh occurs every 3 seconds
Refresh: Refreshes the displayed table starting from the input fields.
Clear: Flushes all dynamic entries
<<: Updates the table starting from the first entry in the Dynamic
DHCP snooping Table
>>: Updates the table, starting with the entry after the last entry
currently displayed.
Navigating the DHCP snooping Table
Each page shows up to 99 entries from the, Dynamic DHCP snooping table, default being 20,
selected through the “entries per page” input field
When first visited, the web page will show the first 20 entries from the beginning of the
Dynamic DHCP snooping Table.
The “MAC address” and “VLAN” input fields allows the user to select the starting point in the
Dynamic DHCP snooping Table.
Clicking the Refresh button will update the displayed table starting from that or the closest
next MVR Channels (Groups) Information Table match
In addition, the two input fields will – upon a Refresh button click – assume the value of the
first displayed entry, allowing for continuous refresh with the same start address.
The >> will use the last entry of the currently displayed table as a basis for the next lookup.
When the end is reached the text “No more entries” is shown in the displayed table.
Use the <<button to start over.
