Falcon
M-Class
| User Guide
430
6.5
Maintenance
The Maintenance
includes the follo
wing procedure:
Restart Device
Factory Default
System Update
Configuration (Sav
e/Upload)
6.5.1
Restart Device
You can restart
the switch
here. After rest
art, the switch
will boot normally.

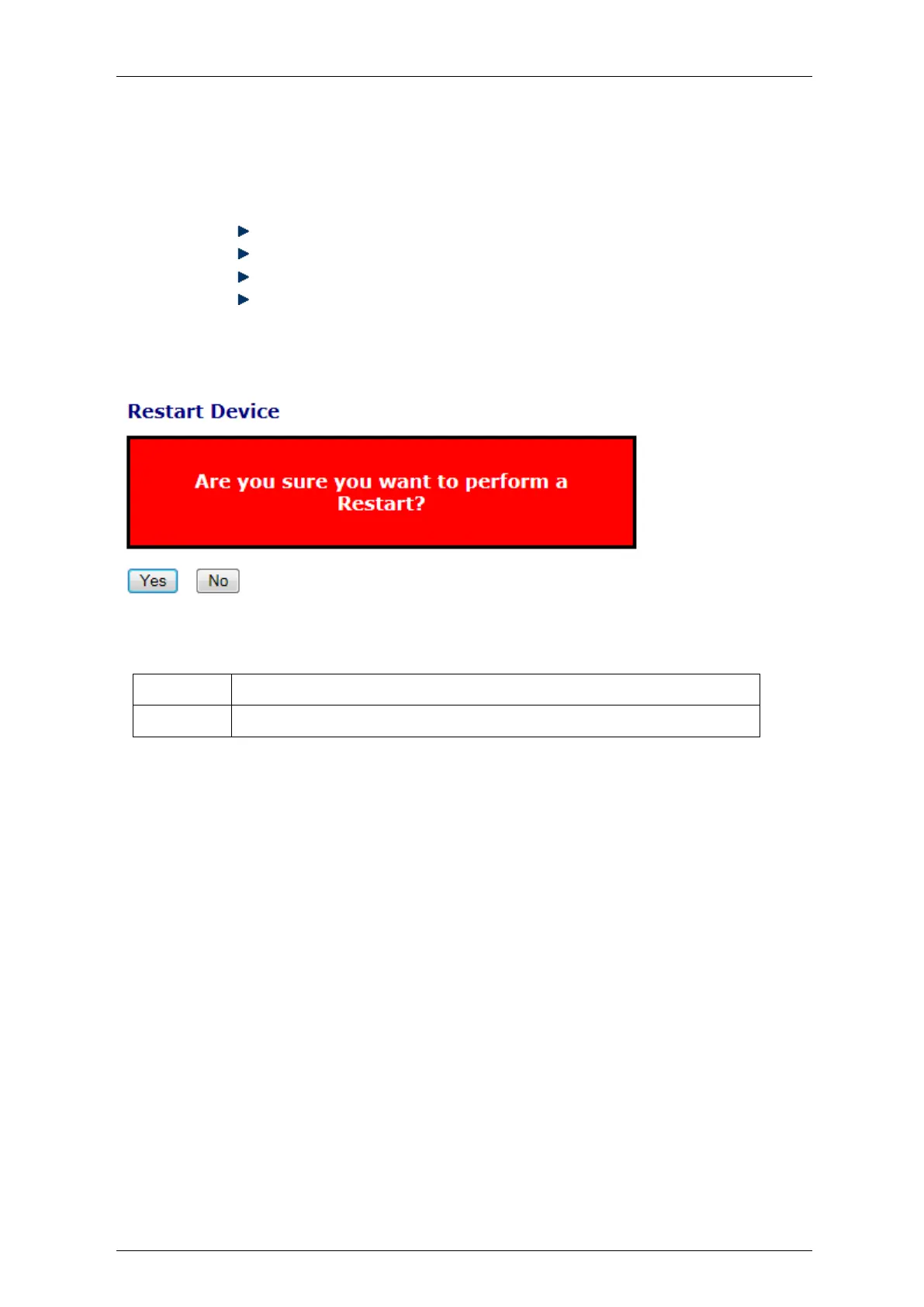

Figure 6-
10
:
Restart Device Screen
Table 6-7
:
Restart D
evice Parameters
Yes:
Click to restart device.
No:
Click to return to the Port State page without restarting
429
431
Table of Contents
Proprietary Information
2
Table of Contents
3
Introduction
9
M-Class Series Overview
9
Falcon-MX
9
Μfalcon-MX
9
Nfalcon-M
9
Interfaces
10
Falcon-MX
10
Μfalcon-MX
10
Nfalcon-M
12
Models Lists
13
Typical Applications
14
Falcon-MX Typical Application - Business Ethernet
14
Μfalcon-MX Typical Application in Fixed Mobile Convergence
14
Nfalcon-M Typical Application in Business Access
15
Scalability
15
System Description
16
Block Diagram
16
M-Class Series Key Features
17
Management
17
Management Integration
17
OAM & Diagnostics
17
Netace - Key Features and Benefits
18
Falcon M Cass Series Ports Features
18
Getting Started
20
Quick Setup Outline
20
Console Connection and Configuration
21
Initial Configuration
22
Web Management Initial Display
22
Web User Interface Buttons
23
Functional Description
24
Overview
24
Frame Processing Overview
24
System Information
25
System Information Configuration
25
IP Configuration
26
IP Interfaces
27
IP Routes
29
NTP Configuration
30
Time Zone
31
System Log Configuration
34
Dying Gasp Configuration
35
Events
36
Dhcp
37
Ports Configuration and Monitoring
38
Port State
41
SFP Information
42
SFP Operational Range
43
SFP Monitoring
44
Traffic Overview
45
Qos Statistics
46
Qos Control List Status
47
Detailed Port Statistics
49
Green Ethernet
51
Thermal Protection
51
Learn MAC Table
52
Configuring the MAC Address Table
52
Monitoring the MAC Address Table
54
Navigating the MAC Table
55
Vlans and Provider Bridges
57
VLAN Configuration
58
VLAN Membership Status for Combined Users
66
VLAN Translation
68
Provider Bridges (Qinq)
72
Private Vlans (Pvlans)
73
Voice VLAN
82
Multicast VLAN Registration (MVR)
86
Quality of Service (Qos)
93
Qos Ingress Port Classification
93
Qos Ingress Port Policers
95
Qos Ingress Queue Policers
96
Qos Egress Port Schedulers
97
Qos Egress Port Shapers
99
Qos Egress Port Tag Remarking
101
Qos Port DSCP Configuration
103
DSCP Based Qos Ingress Classification
104
DSCP Translation
106
Qos Control List Configuration
109
QCE Configuration
110
Rate Limiters
112
Global Storm Policer Configuration
114
Ethernet Services
115
EVC Port Configuration
115
L2CP Port Configuration
116
Bandwidth Profiles Configuration
117
EVC Control List Configuration
119
EVC Configuration
121
ECE Control List Configuration
123
ECE Configuration
125
EVC Statistics
127
Security Features
129
Switch
129
Network Security
141
Address Resolution Protocol
176
Authentication Server Configuration (AAA)
182
Synccenter Configuration
193
Synccenter
194
Sync Source
194
Sync Center Configuration
195
Sync Output
196
Synccenter Status
197
Synccenter Monitoring
199
Synccenter
199
Sync Source Status
200
Synccenter Configuration
200
Synccenter Status
201
Sync Output
202
External Configuration
204
GPS Receiver
206
GPS Antenna Cable Configuration
206
GPS Status
208
GPS Alarms
208
Monitoring GPS Status
209
GPS Alarms
209
Satellite Status
210
GPS Antenna Cable Status
211
Sky View
212
Satellite Count
213
4.14.10 Rubidium Module
215
IEEE1588 Precision Time Protocol
217
PTP External Clock Mode
219
PTP Clock Configuration
220
PTP Monitoring
223
Synchronous Ethernet (Synce)
226
Synce Ethernet Port Configuration
228
Spanning Tree
231
Understanding RSTP and MSTP
231
Bridge Settings
235
MSTI Configuration
237
MSTI Priority Configuration
238
CIST Port Configuration
239
MSTI Port Configuration
241
Spanning Tree Monitoring
242
IP Multicast
247
IGMP Snooping Configuration
247
IGMP Snooping VLAN Configuration
249
IGMP Snooping Port Group Filtering Configuration
251
IGMP Snooping Status
253
IGMP Snooping Groups Information
254
IGMP SFM Information
255
MLD Snooping Configuration
257
MLD Snooping VLAN Configuration
259
MLD Snooping Port Group Filtering Configuration
262
4.18.10 MLD Snooping Status
263
4.18.11 MLD Snooping Groups Information
264
4.18.12 MLD SFM Information
265
Link Aggregation
267
Static Link Aggregation
268
Link Aggregation Control Protocol (LACP) Port Configuration)
270
LACP Monitoring
271
LLDP-Link Discovery
274
LLDP Configuration
275
LLDP-MED Configuration
278
LLDP Monitoring
283
Link OAM
293
Link OAM Port Configuration
294
Link Event Configuration for Selected Port
295
Detailed Link OAM Statistics for Selected Port
297
Detailed Link OAM Status for Selected Port
299
Detailed Link OAM Link Events Status for Selected Port
301
Service OAM Standards
304
OAM Service Multi-Domain Levels
305
Ethernet Connectivity Fault Management
306
MEP Configuration Management
314
MEP Configuration Displays
316
Ethernet Continuity Check
323
Continuity Check Messages with Network Fault
324
Fault Detection Management
325
Performance Monitor
336
Delay Measurements Bins
343
4.22.10 Delay Measurements Bins Forfd
344
4.22.11 Delay Measurements Bins for IFDV
344
RMON (Remote Network Monitoring)
345
ARMON Alarm Configuration
345
RMON Event Configuration
346
RMON Statistics Configuration
347
RMON History Configuration
348
Loop Guard
349
Loop Guard Status
350
EPS (Ethernet Protection Switching)
351
Ethernet Ring Protection Switching
352
Loopback Configuration
353
Link Protection
354
Link Protection Configuration
354
Link Protection Status
355
GVRP Configuration
356
Sflow Consideration
357
Sflow Configuration Displays
357
Sflow Statistics
360
Upnp Configuration
362
UDLD Configuration
363
UDLD Port Configuration
363
Detailed UDLD Status Forport 1
364
Management
365
General Introduction
365
System Information
365
System Status
366
CPU Load
368
IP Status
369
System Log Information
370
Detailed System Log Information
372
DHCP (Dynamic Host Configuration Protocol)
373
DHCP Server Mode Configuration
373
DHCP Serverexcluded IP Configuration
374
DHCP Server Pool Configuration
375
DHCP Snooping Configuration
377
Dynamic DHCP Snooping Table
378
DHCP Relay Configuration
379
DHCP Relay Statistics Configuration
380
DHCP Server Statistics
381
DCHP Server Binding IP
383
DHCP Server Declined IP
384
DHCP Detailed Statistics Port 1
384
Green Ethernet and Thermal Protection
386
Port Power Savings Configuration
386
Thermal Protection Configuration
389
Dying Gasp Configuration
391
Simple Network Management Protocol (SNMP)
392
SNMP System Configuration
392
Trap Configuration
393
Snmpv3 Community Configuration
395
Snmpv3 User Configuration
396
Snmpv3 Group Configuration
398
Snmpv3 View Configuration
399
Snmpv3 Access Configuration
400
Supported SNMP Mibs
401
Command Line Interface (CLI)
402
SSH Configuration
402
HTTP Secure (HTTPS)
402
Events Configuration
404
Events Configuration Table
404
Web Interface
406
Port Configuration
408
User Configuration & Edit User
408
Authentication Method Configuration
410
Authentication Servers Configuration
411
Access Management Configuration
411
RMON Overview
412
RMON Alarm Overview
412
RMON Event Overview
413
RMON History Overview
414
RMON Statistics Status Overview
415
Maintenance
417
Diagnostics
417
ICMP Ping
417
Ping 6
418
Link OAM MIB Retrieval
419
Veriphy Cable Diagnostics
419
Rfc2544
422
Test Configuration
423
RFC2544 Test
425
Falcon Report Configuration
426
Mirroring
427
Maintenance
430
Restart Device
430
Factory Defaults
431
Software
432
Configuration
435
Power Supply Overview
438
AC Power Supply
438
DC Power Supplies
439
Laser Safety
441
Warranty Information
442
Warranty Limitation
442
Glossary of Terms
443
General Glossary of Terms
443
Alphabetical Glossary of Terms
453
