4.21.3 Detailed Link OAM Statistics for selected port
This section provides detailed OAM traffic statistics for a specific switch port. Use the port select
box to select which switch port details to display.
The displayed counters represent the total number of OAM frames received and transmitted for
the selected port. Discontinuities of these counters can occur at re-initialization of the
management system.

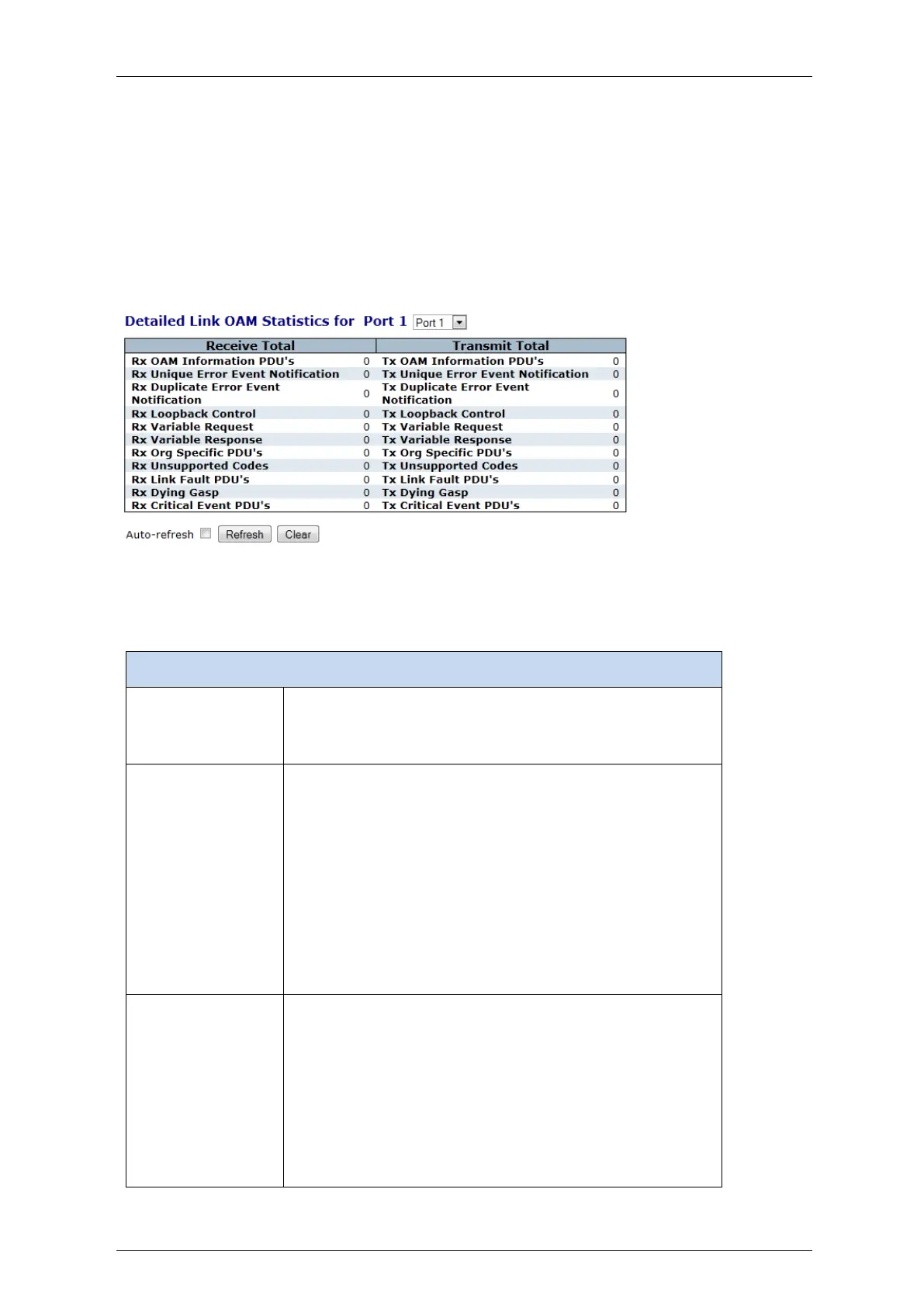

Figure 4-165: Detailed Link OAM Statistics for selected port
Table 4-157: Detailed Link OAM Statistics for selected port Parameters
Receive Total and Transmit Total
Rx and Tx OAM
Information
PDU's
The number of received and transmitted OAM Information
PDU's. Discontinuities of this counter can occur at re-
initialization of the management system.
Rx and Tx
Unique Error
Event
Notification
A count of the number of unique Event OAMPDUs received
and transmitted on this interface. Event Notifications may be
sent in duplicate to increase the probability of successfully
being received, given the possibility that a frame may be lost
in transit.
Duplicate Event Notification transmissions are counted by
Duplicate Event Notification counters for Tx and Rx
respectively. A unique Event Notification OAMPDU is
indicated as an Event Notification OAMPDU with a Sequence
Number field that is distinct from the previously transmitted
Event Notification OAMPDU Sequence Number.
Rx and Tx
Duplicate Error
Event
Notification
A count of the number of duplicate Event OAMPDUs received
and transmitted on this interface. Event Notification
OAMPDUs may be sent in duplicate to increase the
probability of successfully being received, given the
possibility that a frame may be lost in transit.
A duplicate Event Notification OAMPDU is indicated as an
Event Notification OAMPDU with a Sequence Number field
that is identical to the previously transmitted Event
Notification OAMPDU Sequence Number.
