Falcon M-Class | User Guide
235
4.17.2 Bridge settings
Spanning Tree protocol version (STP, RSTP or MSTP) is selected according to the networking
environment.
M-Class series devices allows STP, RSTP, MSTP system settings configuration as detailed below.

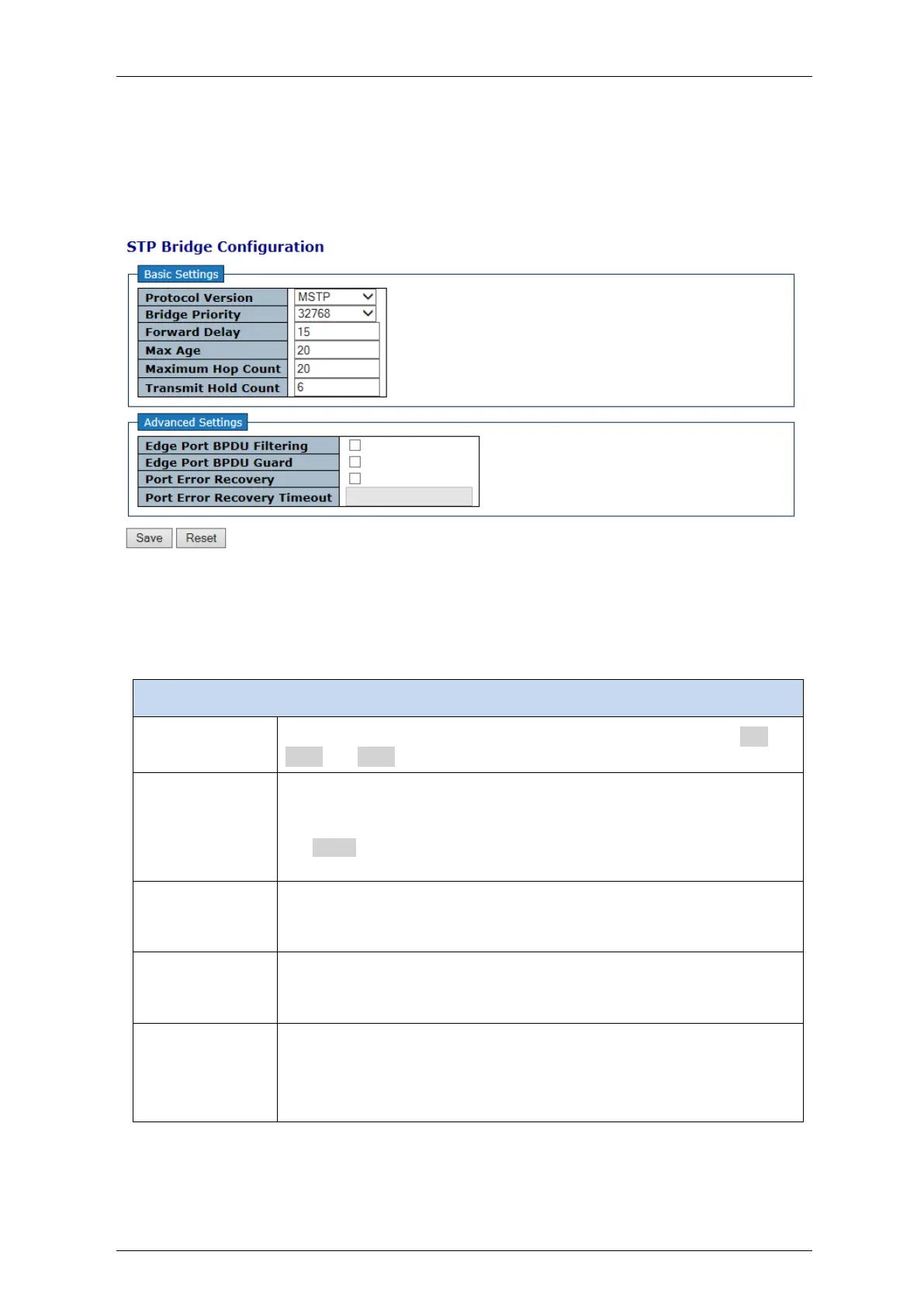

Figure 4-130: STP Bridge Configuration
Table 4-124: STP Bridge Configuration Parameters
Basic Settings
Protocol
version
The MSTP / RSTP / STP protocol version setting.. Valid values are STP,
RSTP and MSTP.
Bridge Priority
Controls the bridge priority. Lower numeric values have better priority.
The bridge priority plus the MSTI instance number, concatenated with the
6-byte MAC address of the switch forms a Bridge Identifier.
For MSTP operation, this is the priority of the CIST. Otherwise, this is the
priority of the STP/RSTP bridge.
Forward Delay
The delay used by STP Bridges to transition Root and Designated Ports to
toForwarding (used in STP compatible mode). Valid values are in the
range 4 to 30 seconds.
Max Age
The maximum age of the information transmitted by the Bridge when it is
the Root Bridge. Valid values are in the range 6 to 40 seconds,
and
Max
Age must be <= (FwdDelay-1)*2.
Maximum Hop
Count
This defines the initial value of remaining Hops for MSTI information
generated at the boundary of an MSTI region.
It defines how many bridges a root bridge can distribute its BPDU
information to.Valid values are in the range 6 to 40 hops.
