Controls whether the loopback support is enabled for the
switch port.
Link OAM remote loopback can be used for fault localization
and link performance testing. Enabling the loopback support
will allow the DTE to execute the remote loopback command
that helps in the fault detection
Controls whether the Link Monitor support is enabled for the
switch port. On enabling the Link Monitor support, the DTE
supports event notification that permits the inclusion of
diagnostic information.
Controls whether the MIB Retrieval Support is enabled for the
switch port. On enabling the MIB retrieval support, the DTE
supports polling of various Link OAM based MIB variables'
contents.
If the Loopback support is enabled, enabling this field will start
a loopback operation for the port.
Save: Click to save changes.
Reset: Click to undo any changes made locally and revert to
previously saved values.
4.21.2 Link Event Configuration for selected Port
This section allows the user to inspect the current Link OAM Link Event configurations, and
change them as well.

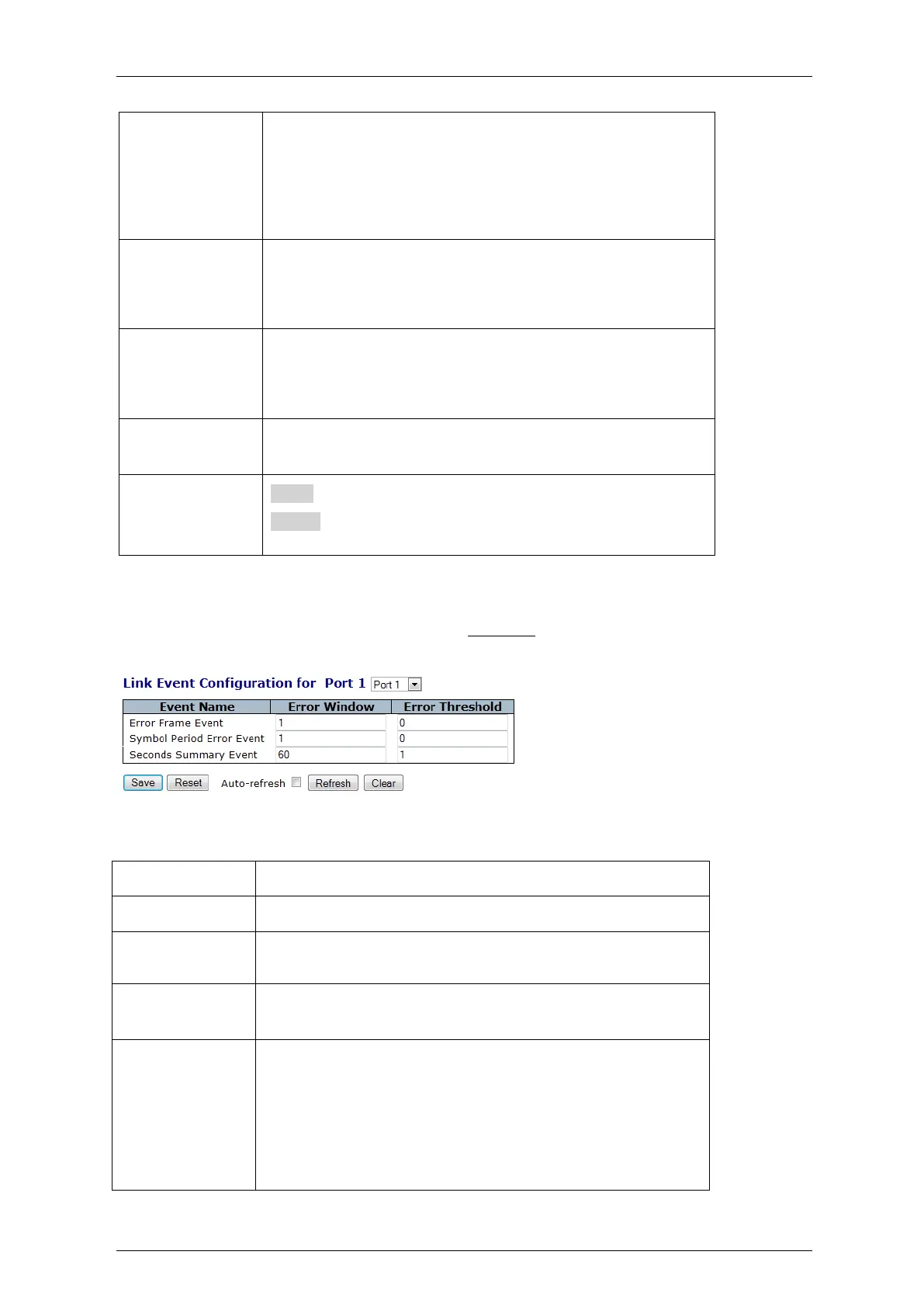

Figure 4-164: Link Event Configuration for selected port
Table 4-156: Link Event Configuration for selected port Parameters
Name of the Link Event which is being configured.
Represents the window period in the order of 1 sec for the
observation of various link events.
Represents the threshold value for the window period for the
appropriate Link event so as to notify the peer of this error.
The Errored Frame Event counts the number of errored frames
detected during the specified period. The period is specified by
a time interval (Window in order of 1 sec). This event is
generated if the errored frame count is equal to or greater than
the specified threshold for that period (Period Threshold).
Errored frames are frames that had transmission errors as
detected at the Media Access Control sublayer. Error Window
