4.9.6 ECE Control List Configuration
This section displays the current EVC Control Entries (ECEs). The settings can also be configured
here.

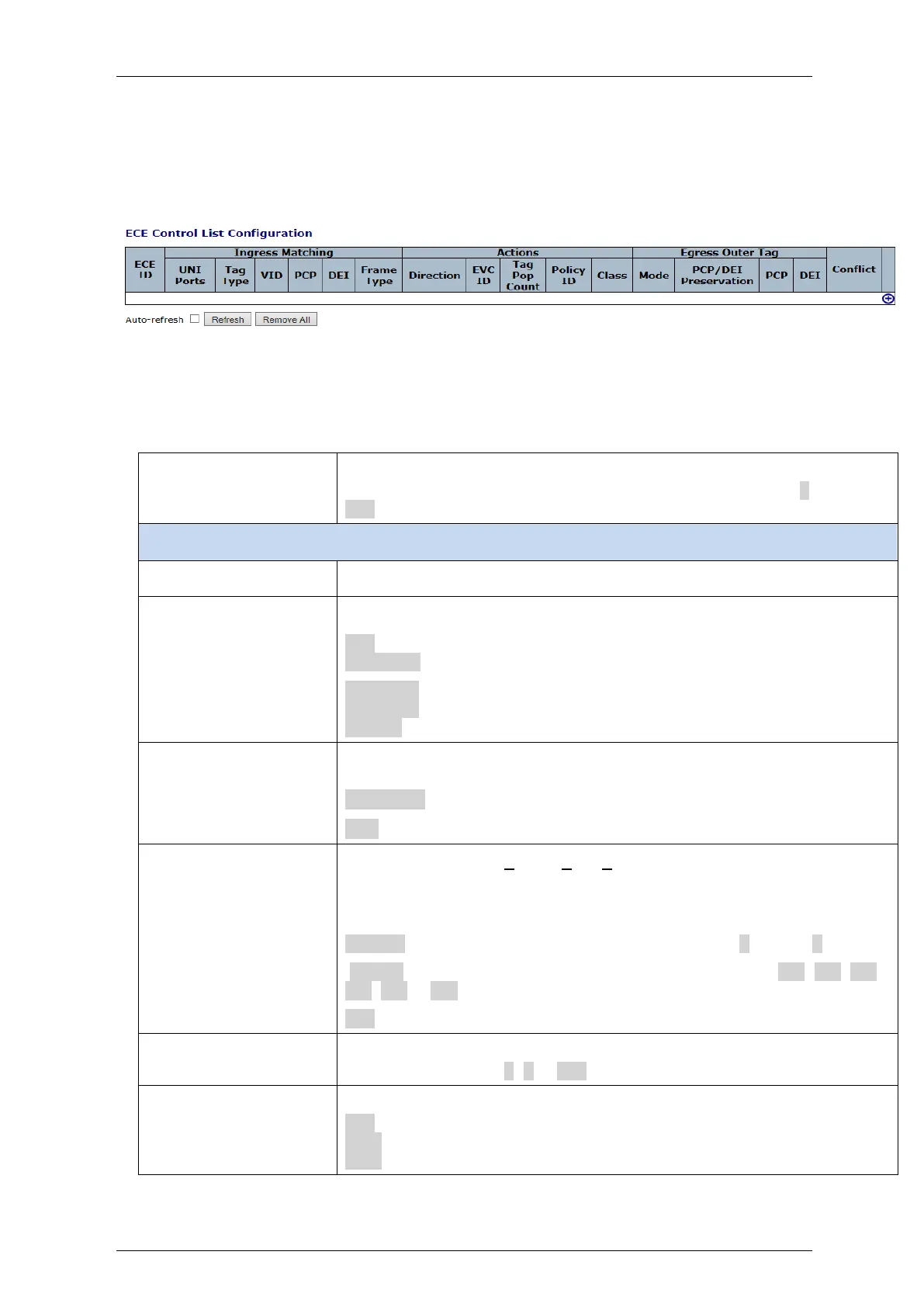

Figure 4-67: ECE Control List Configuration
Table 4-64: ECE Control List Parameters
ECE ID
The ECE ID identifies the ECE (EVC Control Entry). Unique ECE IDs are
automatically assigned to ECEs added. The possible range is from 1 through
256.
Ingress Matching
UNI Ports
The list of User Network Interfaces for the ECE.
Tag Type
The tag type for the ECE. The possible values are:
Any: The ECE will match both tagged and untagged frames.
Untagged: The ECE will match untagged frames only.
C-Tagged: The ECE will match custom tagged frames only.
S-Tagged: The ECE will match service tagged frames only
Tagged: The ECE will match tagged frames only.
VID
The VLAN ID for the ECE. It only significant if tag type 'Tagged' is selected.
The possible values are:
Specific: The range is from 1 through 4095.
Any: The ECE will match any VLAN ID.
PCP
PCP is an acronym for Priority Code Point. It is a 3-bit field storing the
priority level for the 802.1Q frame. It is also known as User Priority.
The PCP value for the ECE. It only significant if tag type 'Tagged' is selected.
The possible values are:
Specific: The ECE will match a specific PCP in the range 0 through 7
. Range: The ECE will match PCP values in the selected range 0-1, 2-3, 4-5,
6-7, 0-3 or 4-7.
Any: The ECE will match any PCP value.
DEI
The DEI value for the ECE. It only significant if tag type 'Tagged' is selected.
The possible values is: 0, 1 or Any.
Frame Type
The frame type for the ECE. The possible values are:
Any: The ECE will match any frame type.
IPv4: The ECE will match IPv4 frames only.
IPv6: The ECE will match IPv6 frames only.
