Falcon M-Class | User Guide
71
By clicking on button, the Mapping Configuration is displayed
The settings can be configured here.

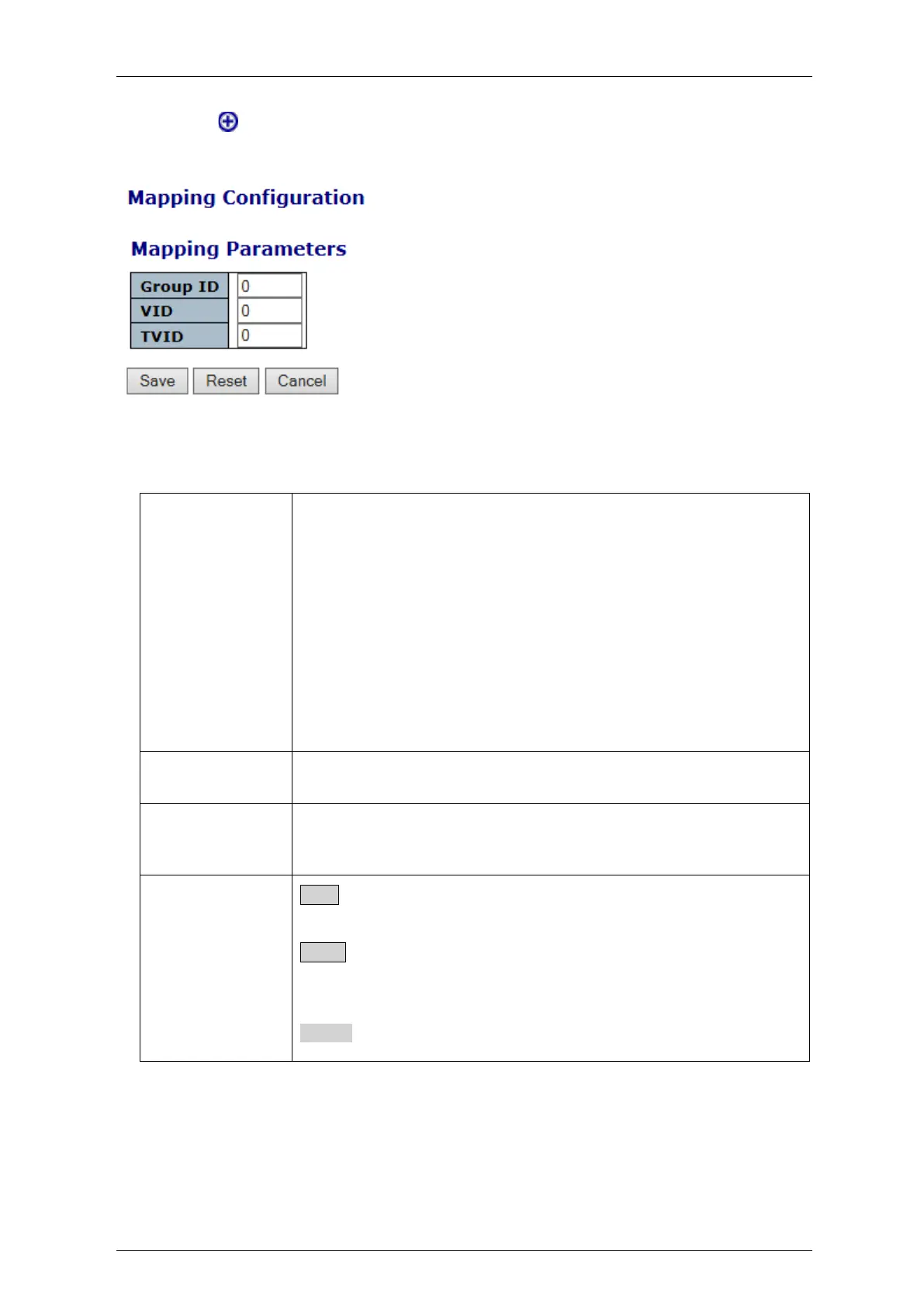

Figure 4-31: Mapping Configuration display
Table 4-29: Mapping Configuration parameters
The VLAN Translation mappings are organized into Groups, identified by
the Group ID.
This way a port is configured to use a number of VLAN Translation
mappings easily by simply configuring it to use a given group.
Then number of possible groups in a switch is equal to the number of
ports present in this switch.
A port can be configured to use any of the groups, but only one at any
given time. Multiple ports can be configured to use the same group. A
valid Group ID is an integer value from 1 to 10.
Note: By default, each port is set to use the gIndicates the VLAN of the
mapping (i.e. 'source' VLAN). A valid VLAN ID ranges from 1 to 4095.
roup with Group ID equal to the port number. For example, port #1 is
by default set to use group with GID = 1.
Indicates the VLAN ID to which VLAN ID of an ingress frame will be
translated to (granted that the mapping is enabled on the ingress port
that the frame arrived at). A valid VLAN ID ranges from 1 to 4095.
Save:
Click to save changes.
Reset:
Click to undo any changes made locally and revert to previously saved
values.
Cancel: Return to the previous page; any changes made locally will be
undone.
