Fluke 54200 - Page 82

54200
Users Manual
4-16
•
Key in the requested value using numerical keypad, for example,
2 0 3 2 5
. For
frequencies <100 MHz, use the decimal point key "
•
", for example,
8 9 . 2 5
.
•
Keyed in digits can be erased with the
rubout
softkey (F2).

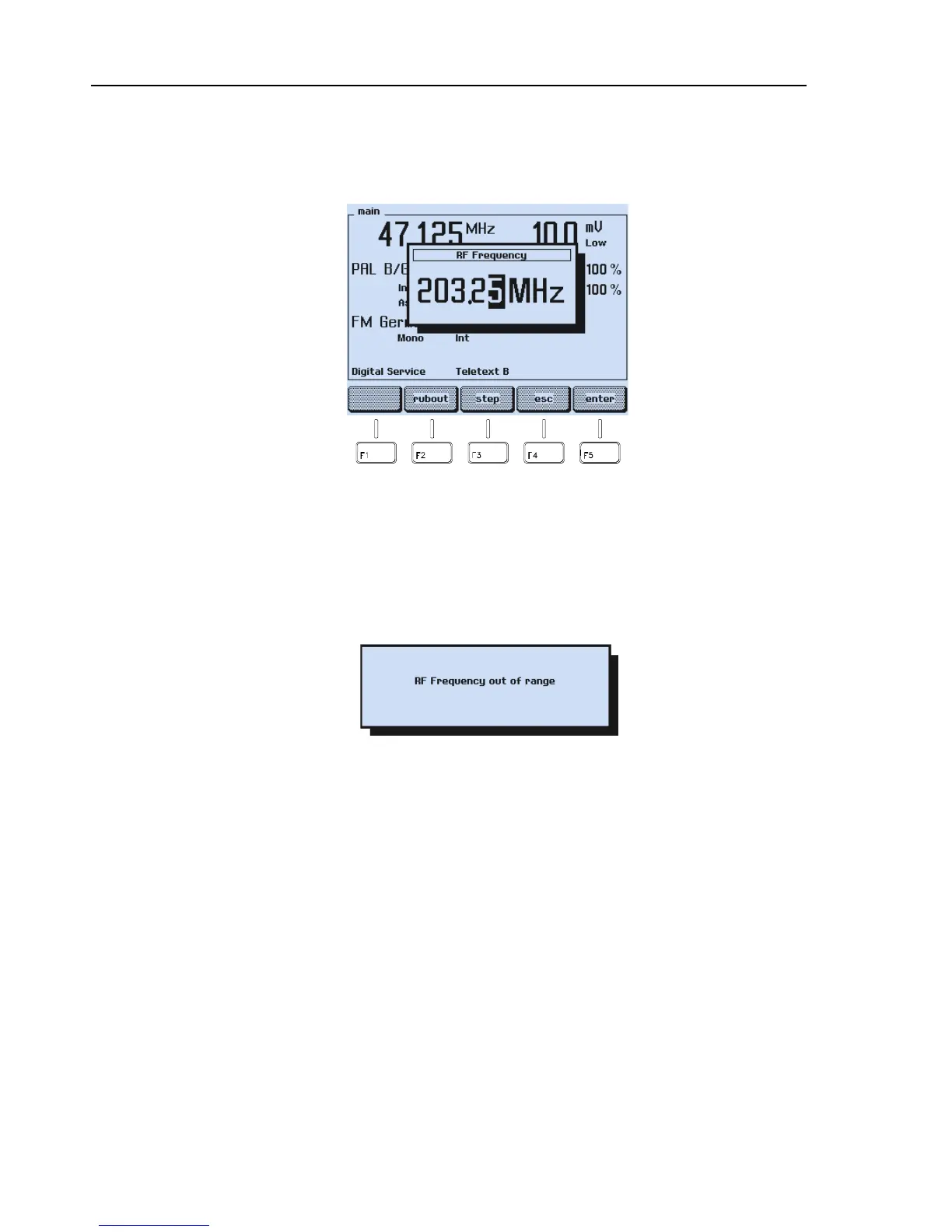

Figure 4-23. Value Input for the Carrier Frequency
•
If you want to skip the input, press the
esc
softkey (F4).
•
Press the
enter
softkey (F5) to confirm your input.
If you key in values <32 MHz or > 900.00 MHz, the display shows the message:
Figure 4-24. Frequency Out of Range Message
•
Press the
enter
softkey (F5) for acknowledgment. The instrument returns to the last
setting.
•
Press the
FREQ
key.
•
Key in a value within the allowed setting range using the numerical keypad.
•
Press the
enter
softkey (F5) to confirm your input.
