Fujitsu PRIMERGY TX140 S1

TX140 S1 Upgrade and Maintenance Manual 191
Hard disk drives / solid state drives

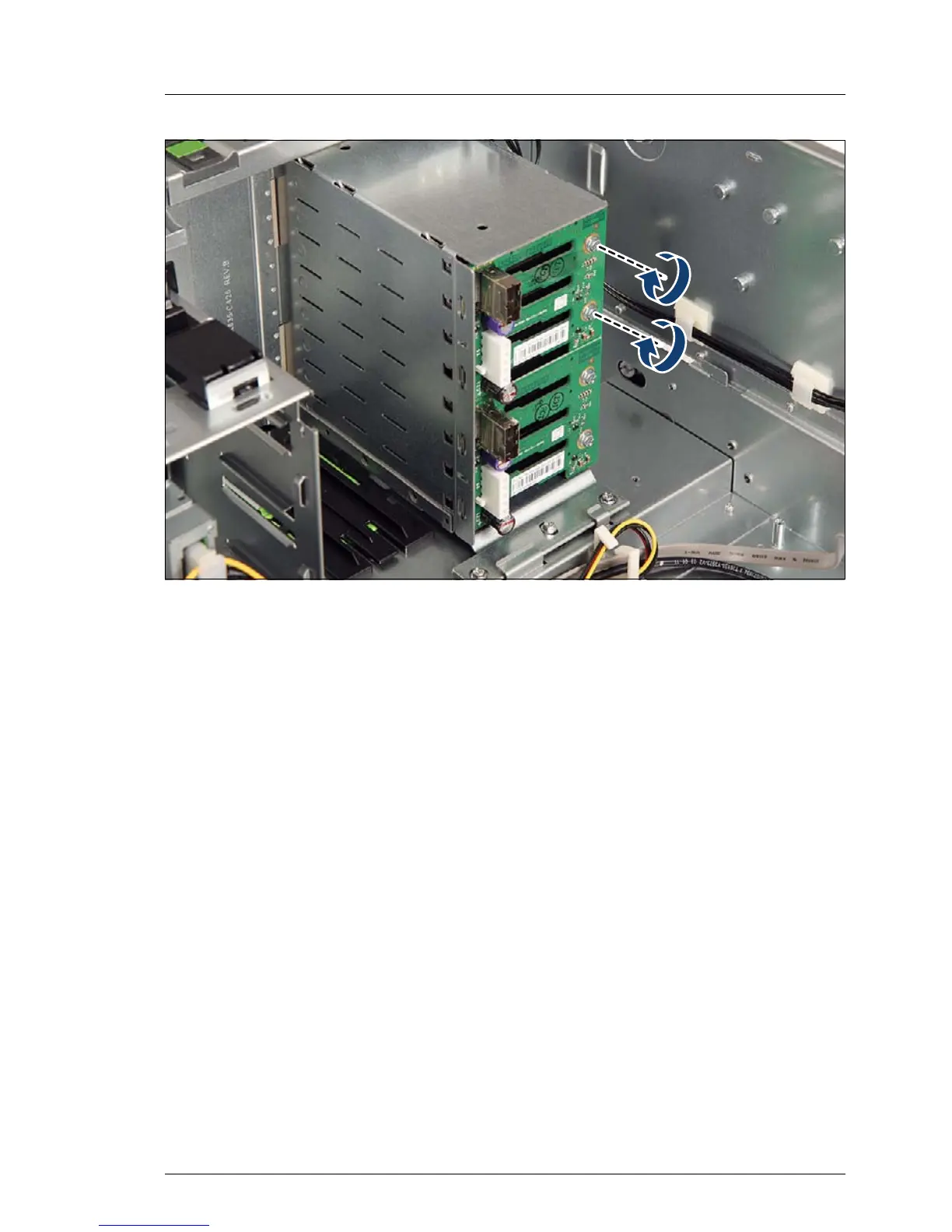

Figure 85: Installing the 2.5-inch HDD SAS / SATA backplane (B)
Ê Secure the 2.5-inch HDD SAS / SATA backplane on the drive cage with the
two screws (M3 x 4.5 mm).
