192 Upgrade and Maintenance Manual TX140 S1
Hard disk drives / solid state drives

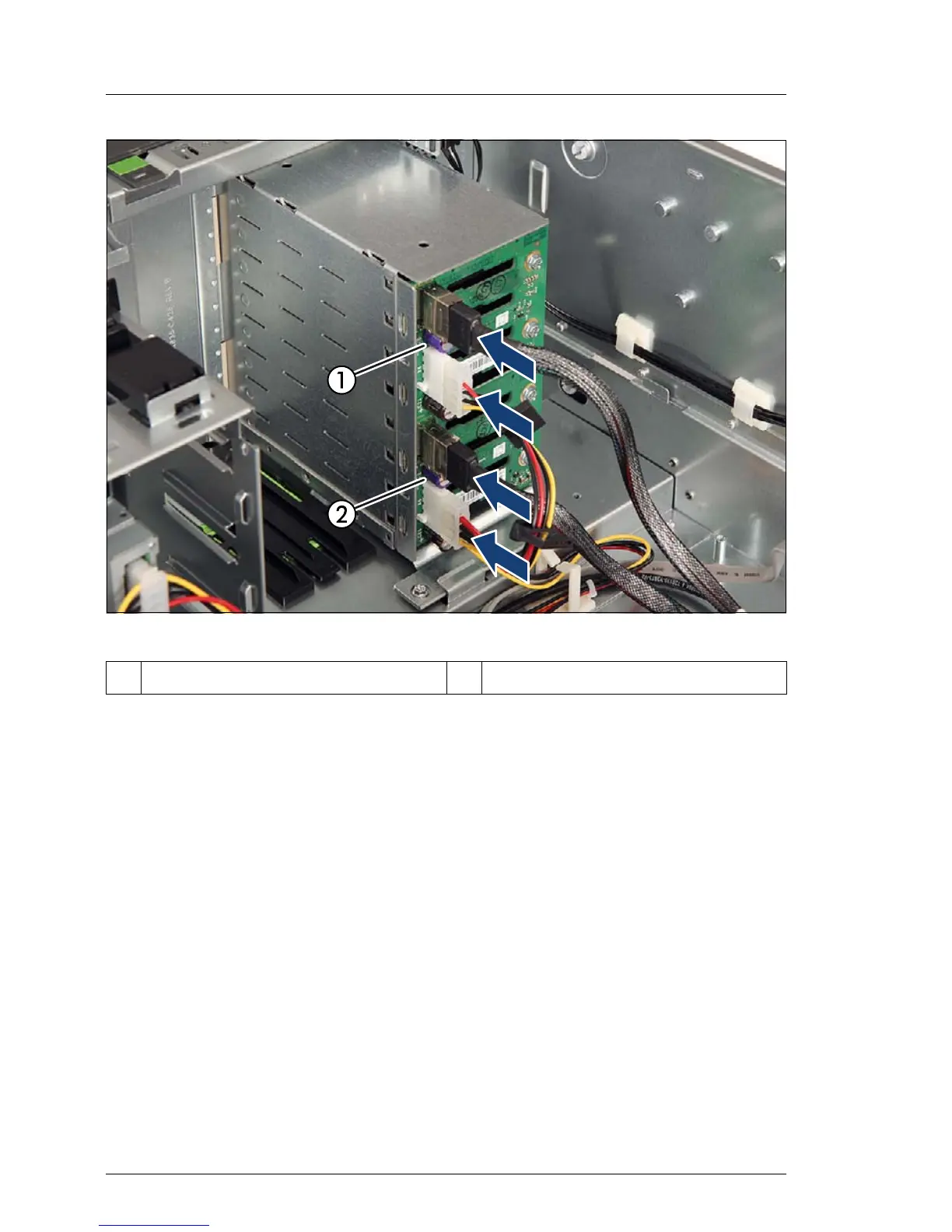

Figure 86: Reconnecting cables to the 2.5-inch HDD SAS / SATA backplane
Ê Reconnect all cables to the 2.5-inch HDD SAS / SATA backplane:
– SAS / SATA cable T26139-Y3963-V101 connected to SAS controller
connector MLC1 to primary backplane connectors X1
– SAS / SATA cable T26139-Y3963-V101 connected to SAS controller
connector MLC2 to secondary backplane connectors X1
– Power cable T26139-Y4012-V501 connector P9 to primary SAS / SATA
backplane connector X6
– Power cable T26139-Y4012-V501 connector P6 to secondary
SAS / SATA backplane connector X6
I For a complete cabling overview, please refer to section "Cabling
overview" on page 490.
1 primary HDD backplane 2 secondary HDD backplane
