Fujitsu PRIMERGY TX140 S1 Upgrade And Maintenance Manual

202 Upgrade and Maintenance Manual TX140 S1
Hard disk drives / solid state drives

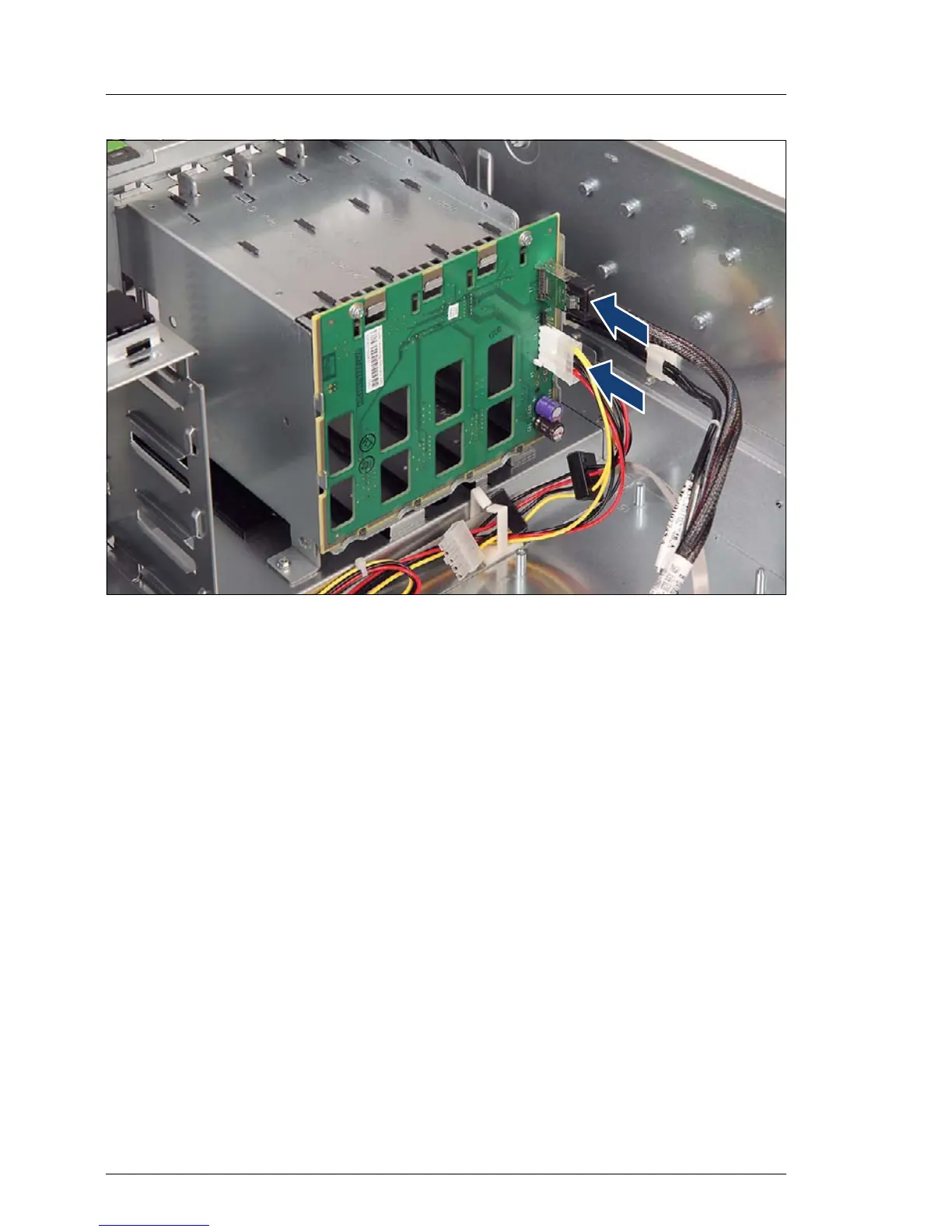

Figure 94: Reconnecting cables to the 3.5-inch HDD SAS / SATA backplane
Ê Reconnect all cables to the 3.5-inch HDD SAS / SATA backplane:
– Power cable T26139-Y4012-V501 connector P6 to SAS / SATA
backplane connector X6
– SAS / SATA cable T26139-Y3963-V101 (connected to system board
connector SATA MLC 1) to SAS / SATA backplane connector X1
I For a complete cabling overview, please refer to section "Cabling
overview" on page 490.
