Fujitsu PRIMERGY TX140 S1 - Page 201

TX140 S1 Upgrade and Maintenance Manual 201
Hard disk drives / solid state drives

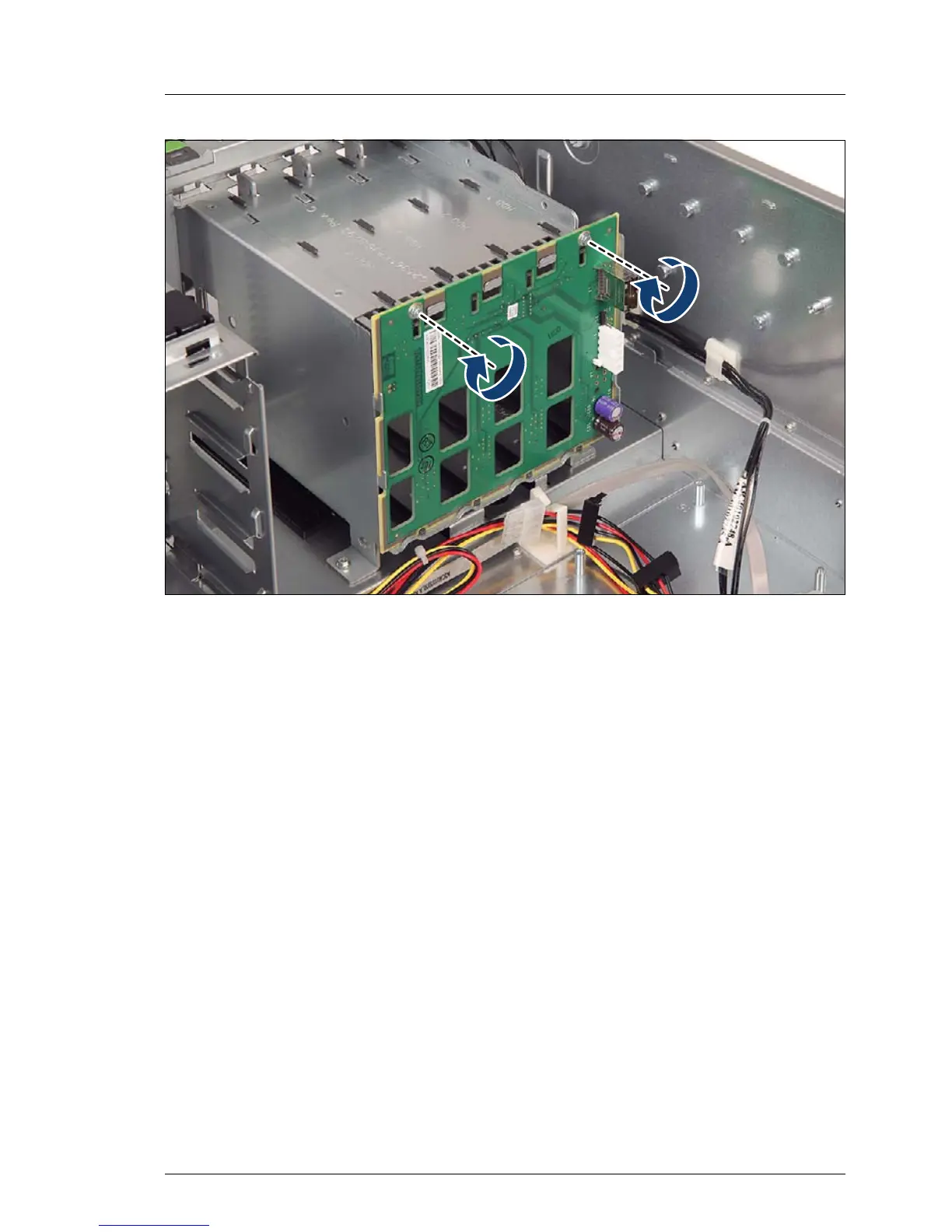

Figure 93: Installing the 3.5-inch HDD SAS / SATA backplane (C)
Ê Secure the 3.5-inch HDD SAS / SATA backplane on the drive cage with the
two screws (M3 x 4.5 mm).
