TX140 S1 Upgrade and Maintenance Manual 211
System fan and air duct

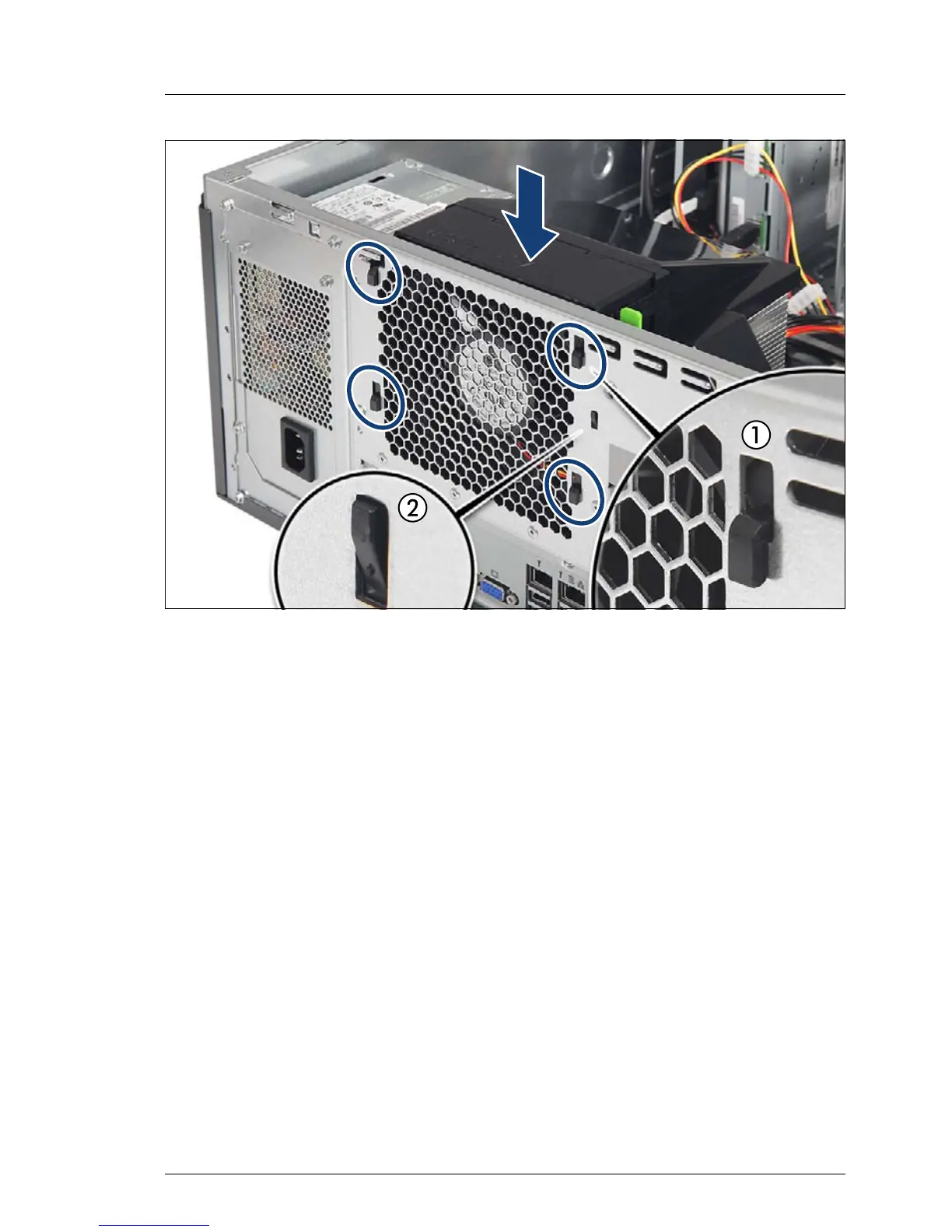

Figure 99: Installing the fan module
Ê Fit the four hooks on the fan module into the slots in the chassis (see blue
circles) (1).
Ê Press down on the fan module until the latch on the locking lever properly
engages in the slot on the server rear (2).
Ê Ensure that the new fan module is properly seated in the chassis.
