268 Upgrade and Maintenance Manual TX140 S1
Expansion cards and backup units

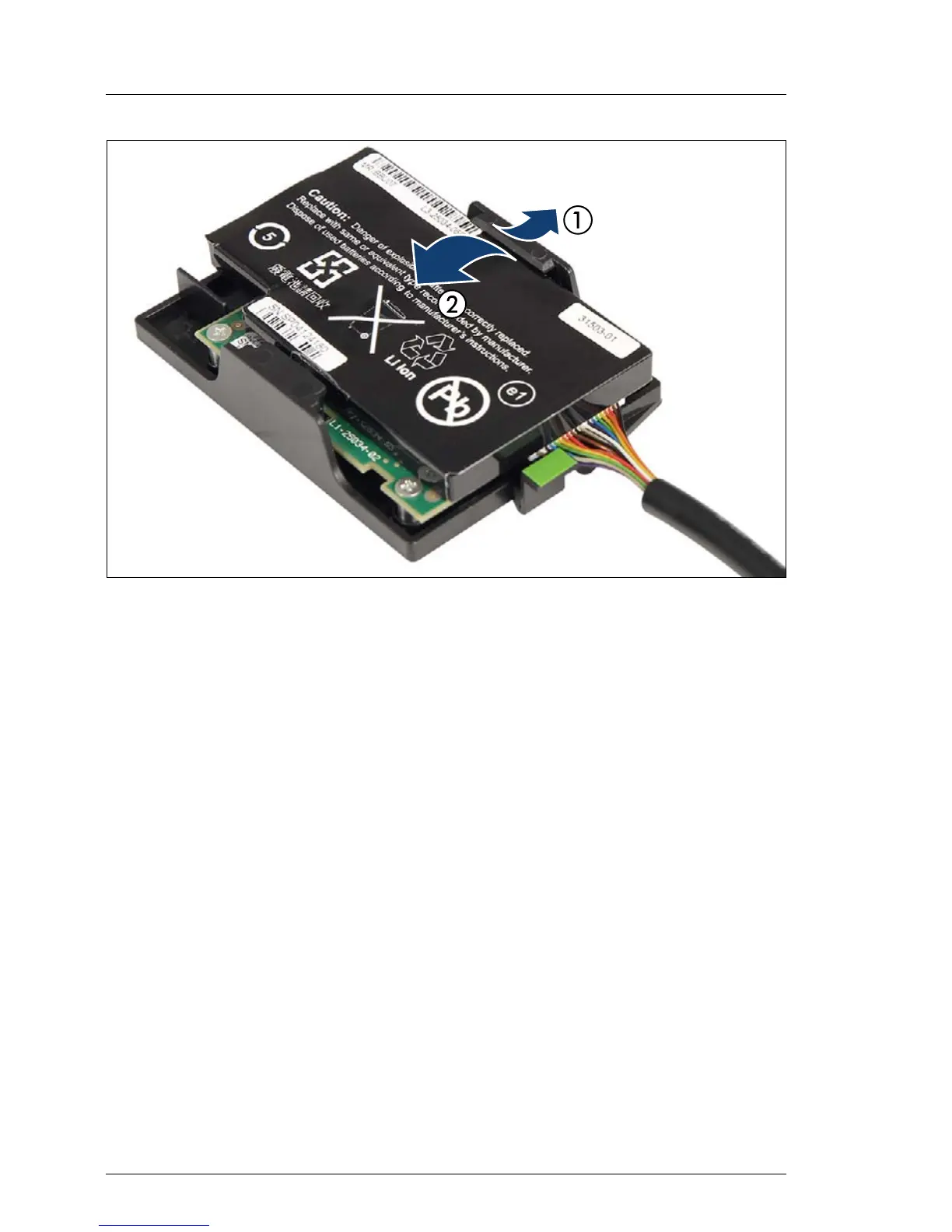

Figure 138: Removing the BBU from the BBU holder
Ê Press out on the right retaining bracket on the BBU holder (1) to disengage
the locking mechanism while pulling up on the BBU (2).
