TX140 S1
Upgrade and Maintenance Manual
269
Expansion cards and back
up un
its

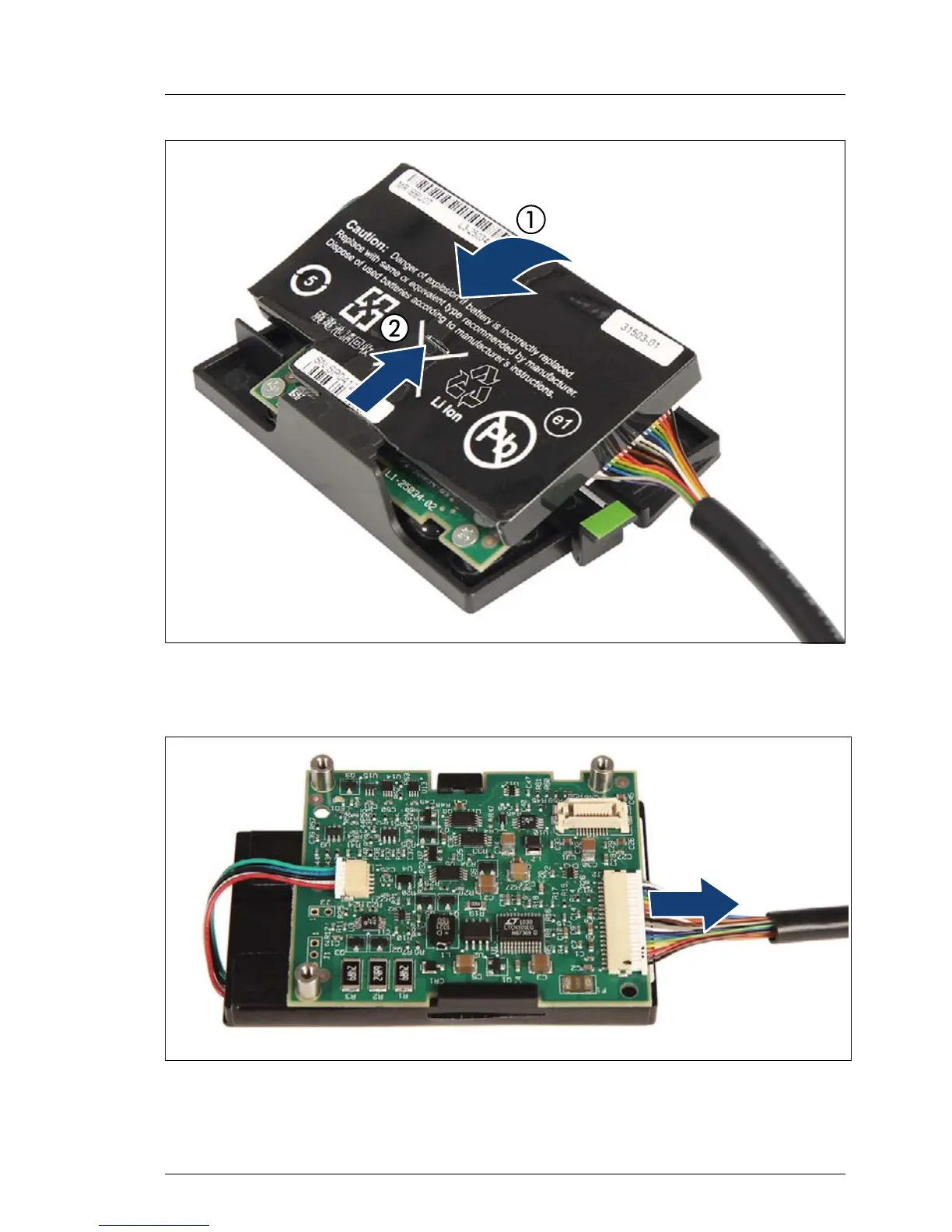

Figure 139: Re
moving the BB
U from t
he BBU holder
Ê
Fold up the BBU (1) and at a slight angle remove it from the BBU hol
der (2).
Figure 140: Disconnect
ing the
BBU cable
from
the BBU
Ê
Carefully disconnect the BBU cable from the BBU.
268
270
