286
Upgrade and Mai
ntenance Manual
TX140
S1
Exp
ansion cards and backup un
it
s
Inserting the SFP+ transceiver m
odule

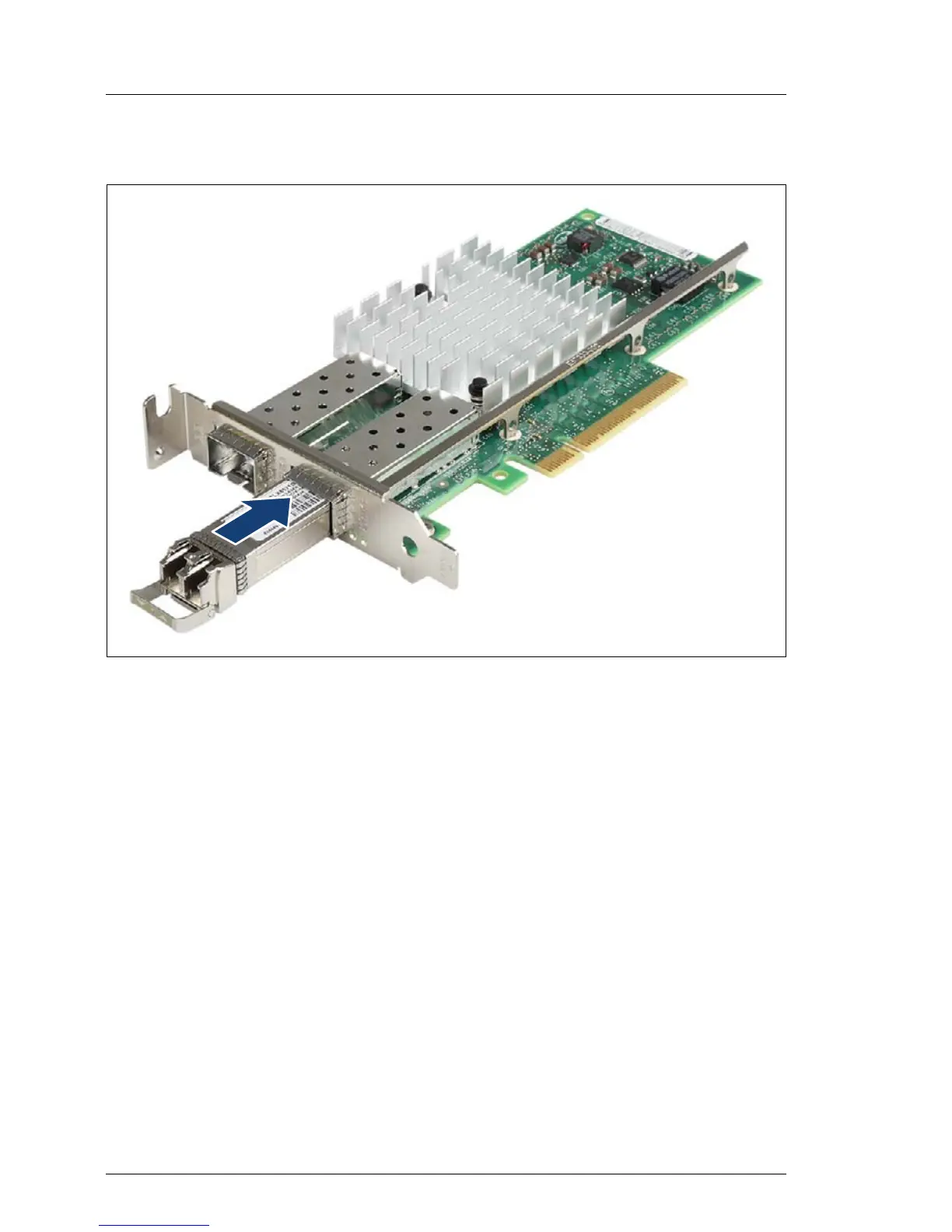

Figure 155: Insert
ing the SF
P+ transceiver
module
Ê
Insert and slide the SFP+ transceiver module into the socket connector as
far as it will go.
I
If only one slot i
s equipped with a SFP+
transceiver module, use the
primary right connector as shown.
285
287
