TX140 S1 Upgrade and Maintenance Manual 287
Expansion cards and backup units

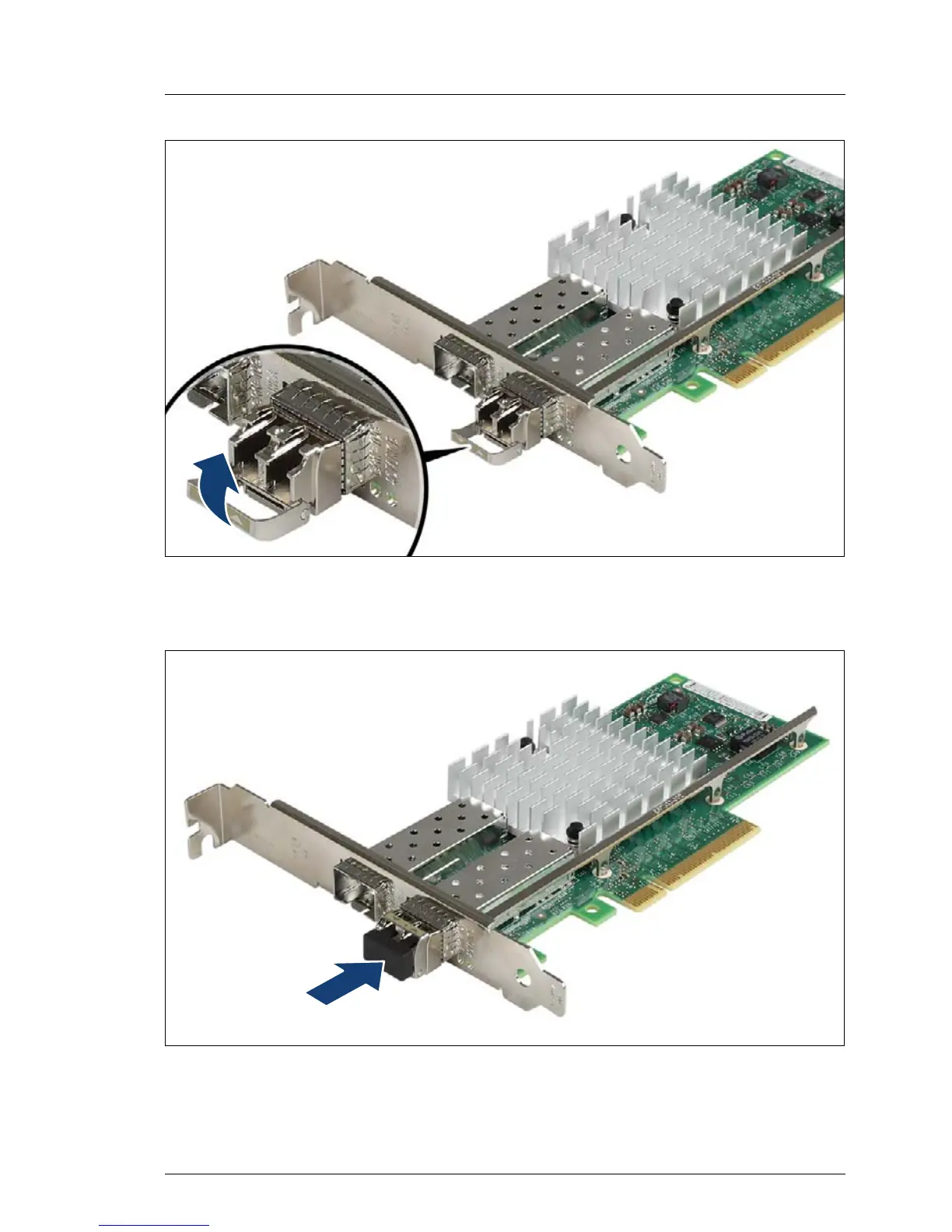

Figure 156: Latching the locking bail
Ê Carefully fold up and latch the locking bail.
Figure 157: Attaching the protective optical port plug
