TX140 S1 Upgrade and Maintenance Manual 339
Accessible drives

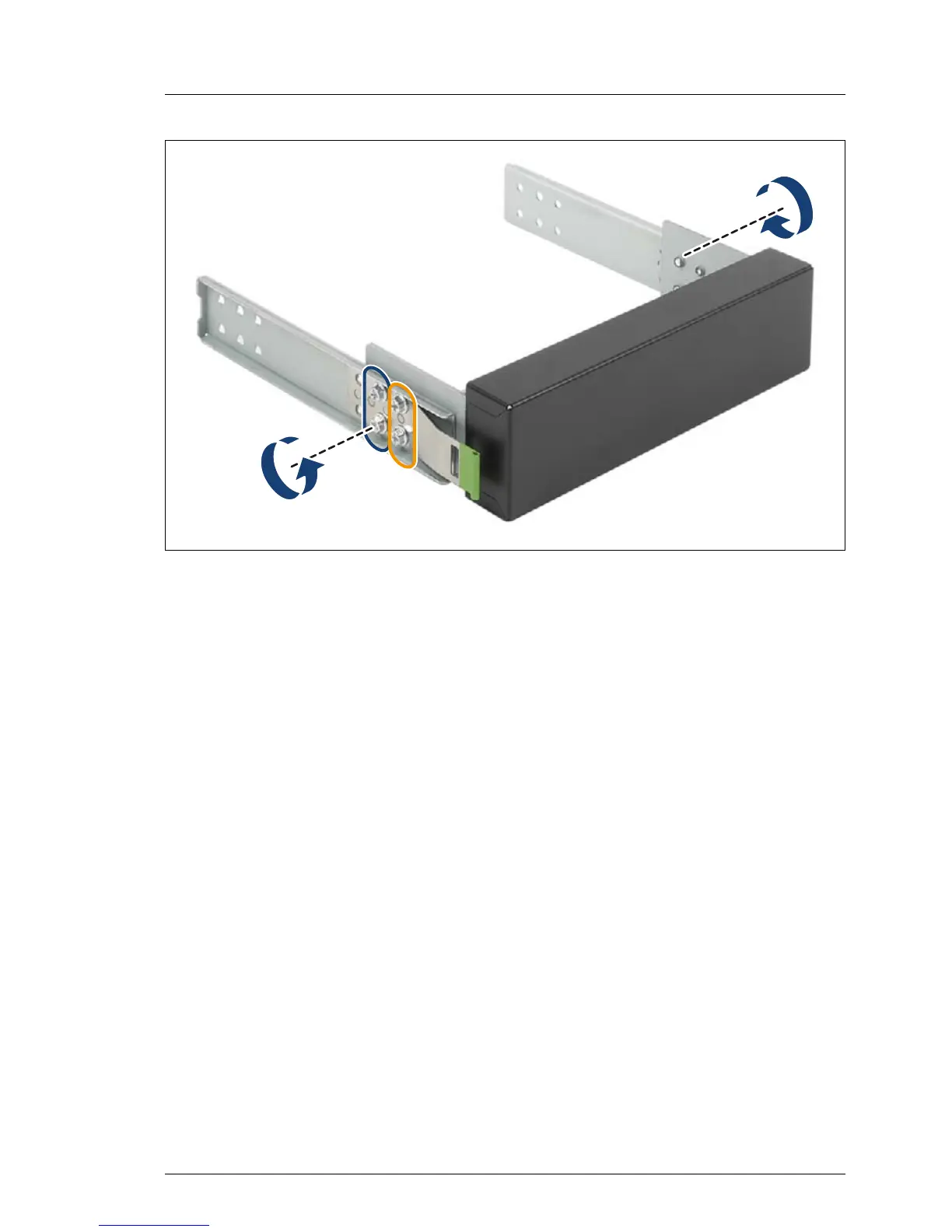

Figure 193: Removing EasyClick rails from the dummy module
Ê Remove four screws from each side of the dummy module to detach the
EasyClick rails.
I Note that there are two M3 x 4.5 mm screws with M3 thread (orange
circle) and two 6-32 x 4.8 mm screws with UNC thread (blue circle)
on each side.
Save unused screws for future use.
