340 Upgrade and Maintenance Manual TX140 S1
Accessible drives

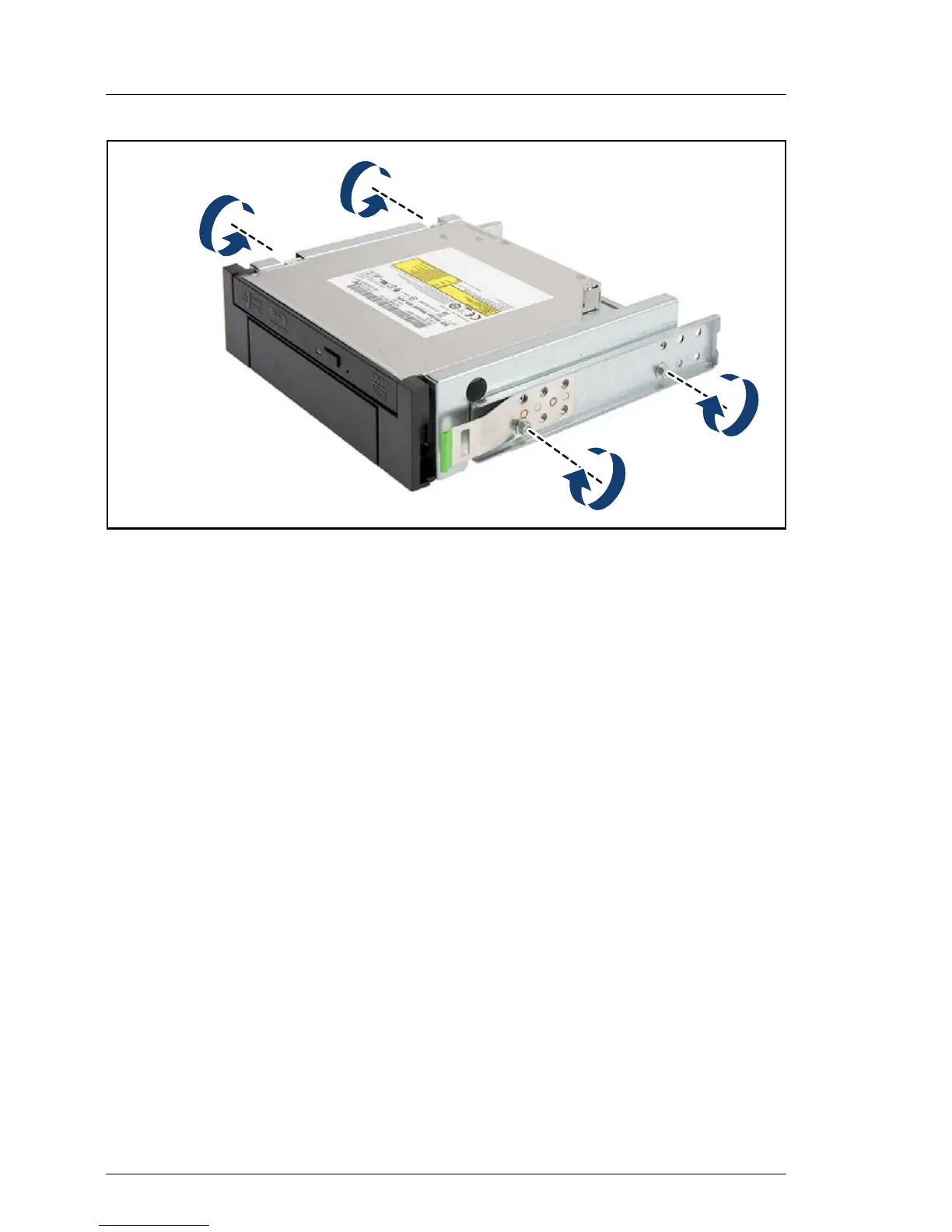

Figure 194: Attaching EasyClick rails to the slide-in unit
Ê Attach EasyClick rails on either side of the slide-in unit, each with two M3 x
4.5 mm screws.
I – Use the first holes in the bottom row of the perforated rail as
shown.
– Use the screws which are provided with the packaging contents of
the slide-in unit.
