TX140 S1
Upgrade and Maintenance Manual
395
Front panel and ext
ernal conn
ectors

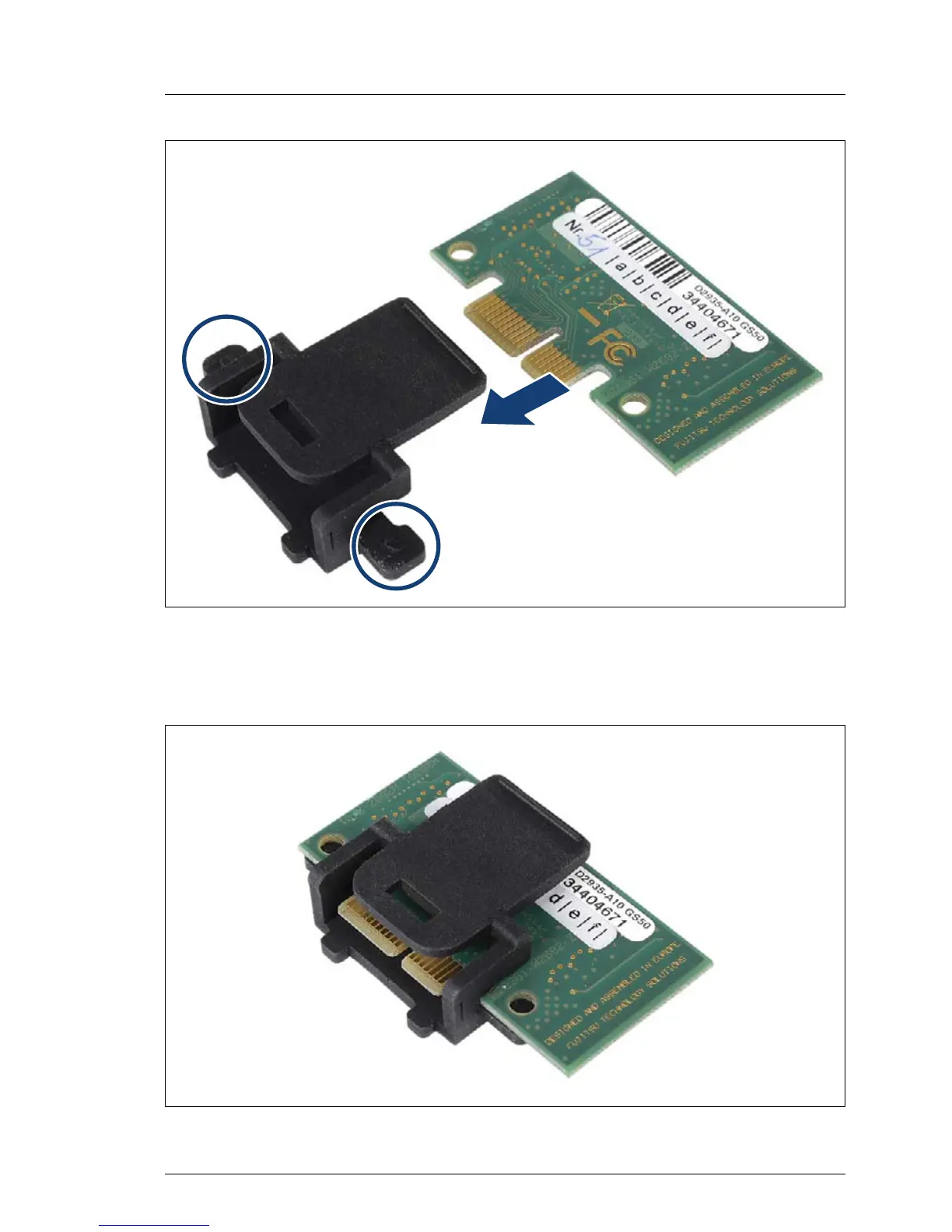

Figure 246: Asse
mbling the f
ront LAN boa
rd (A)
Ê
Insert and push the front LAN board into the front LAN holder
(A3C40126757) until the two locking pins
in the holder snap in place.
Figure 247: Asse
mbling the f
ront LAN boa
rd (B)
394
396
