396 Upgrade and Maintenance Manual TX140 S1
Front panel and external connectors
Ê Assembled front LAN board in front LAN holder

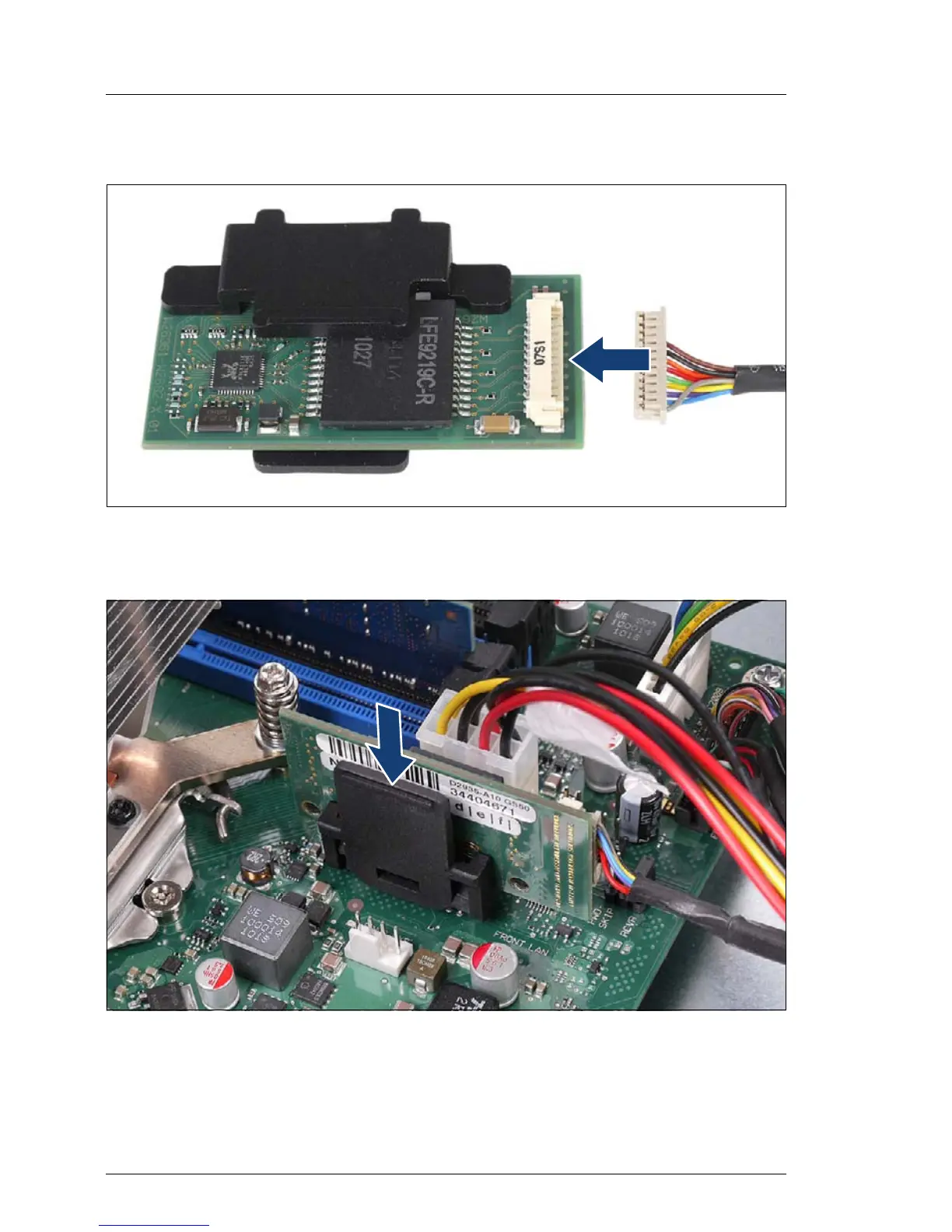

Figure 248: Connecting the front LAN cable to the front LAN board
Ê Connect the front LAN cable to the front LAN board.
Figure 249: Connecting the front LAN board to the system board
Ê Connect the front LAN board to system board connector FRONT LAN.
I Ensure that the front LAN board holder snaps in place.
