TX140 S1 Upgrade and Maintenance Manual 439
System board and components

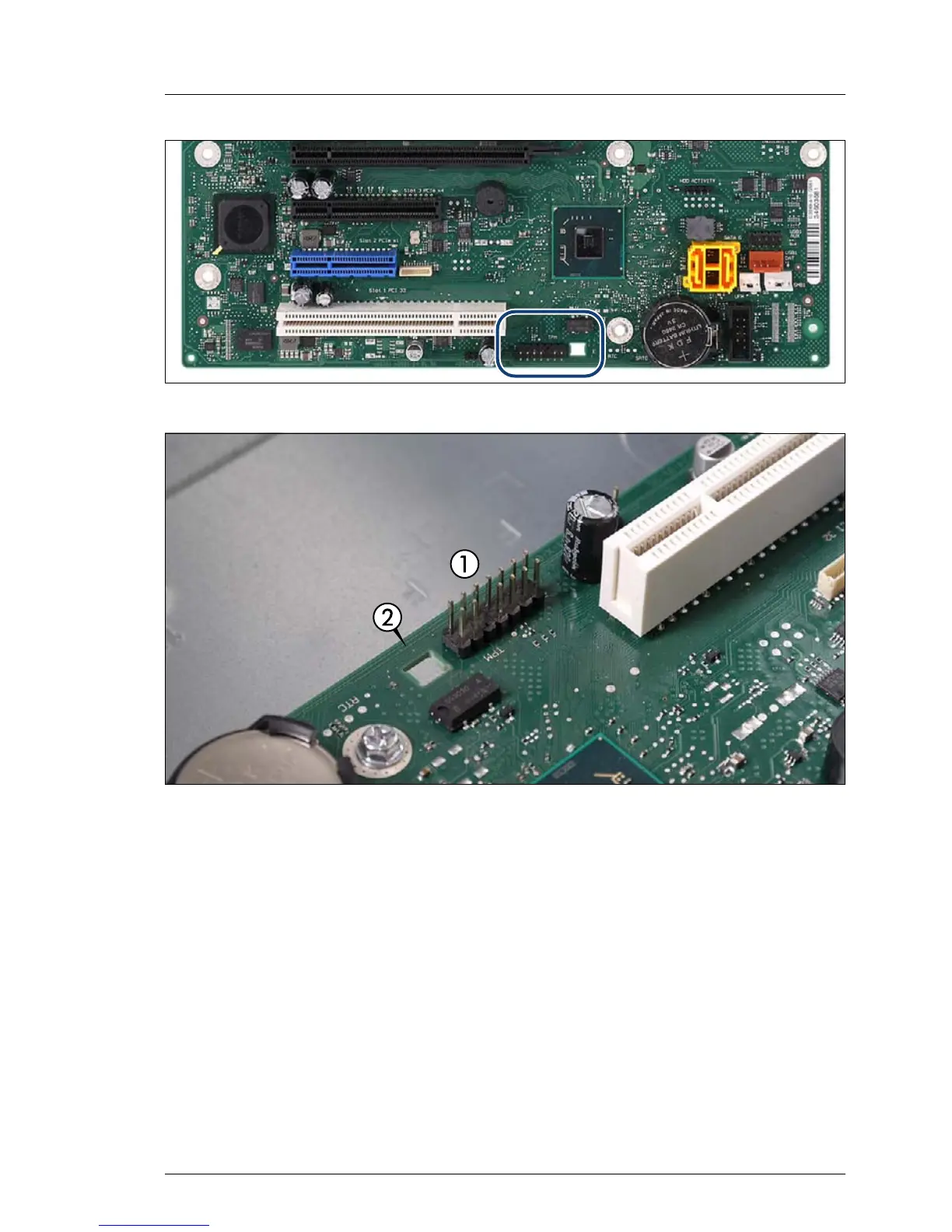

Figure 281: TPM mounting location
Figure 282: TPM mounting location (detail)
TPM mounting location on the system board:
1 TPM connector
2 Cut-out for TPM spacer
