Fujitsu PRIMERGY TX140 S1 Upgrade And Maintenance Manual
4
of 1
of 1 rating
588 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
440
Upgrade and Mai
ntenance Manual
TX140
S1
System board and compo
nent
s

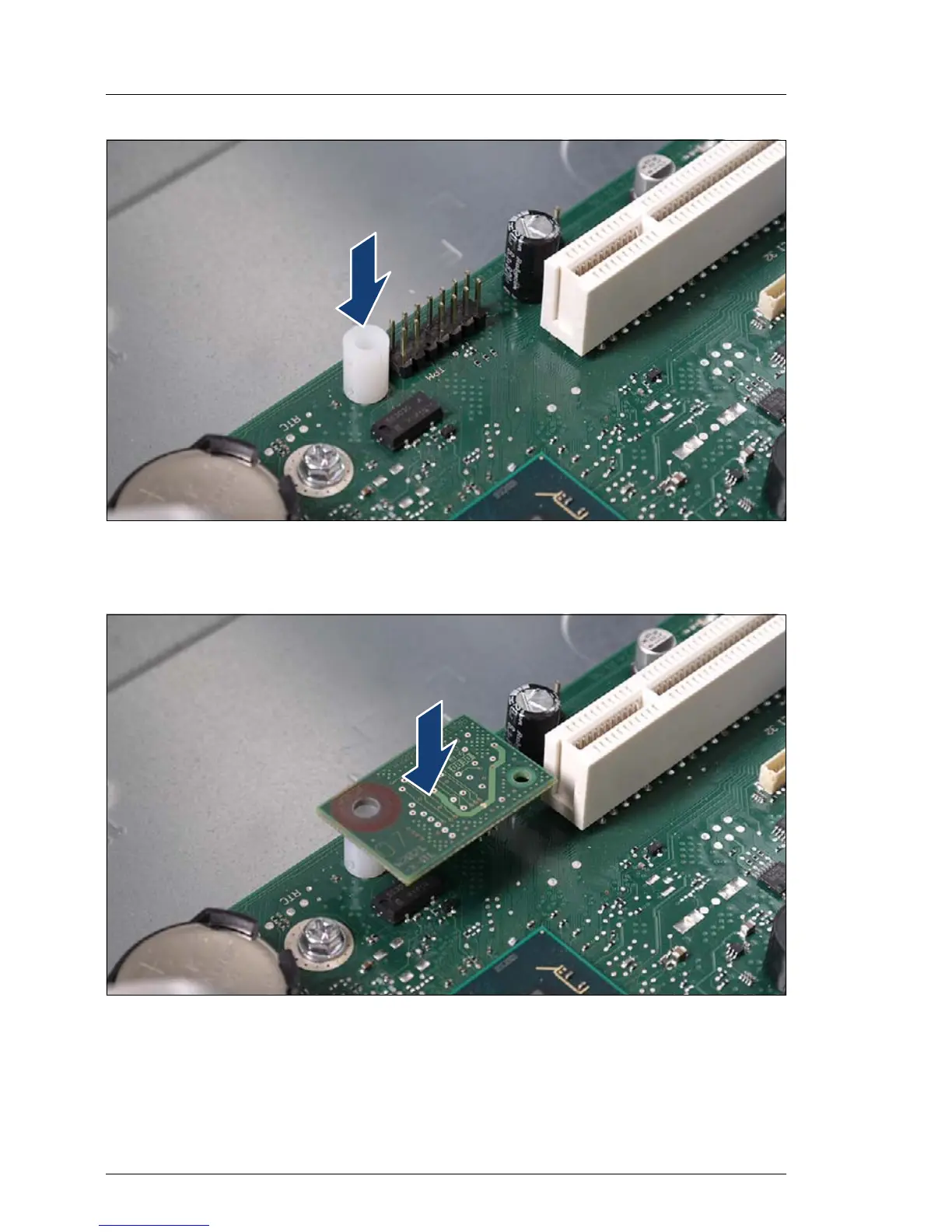

Figure 283: Instal
ling the TPM spacer
Ê
Snap the TPM spacer into the cut-out in the system board.
Figure 284: Instal
ling the TPM board
Ê
Connect the new TPM board to the system board.
439
441
