514 Upgrade and Maintenance Manual TX140 S1
Cabling

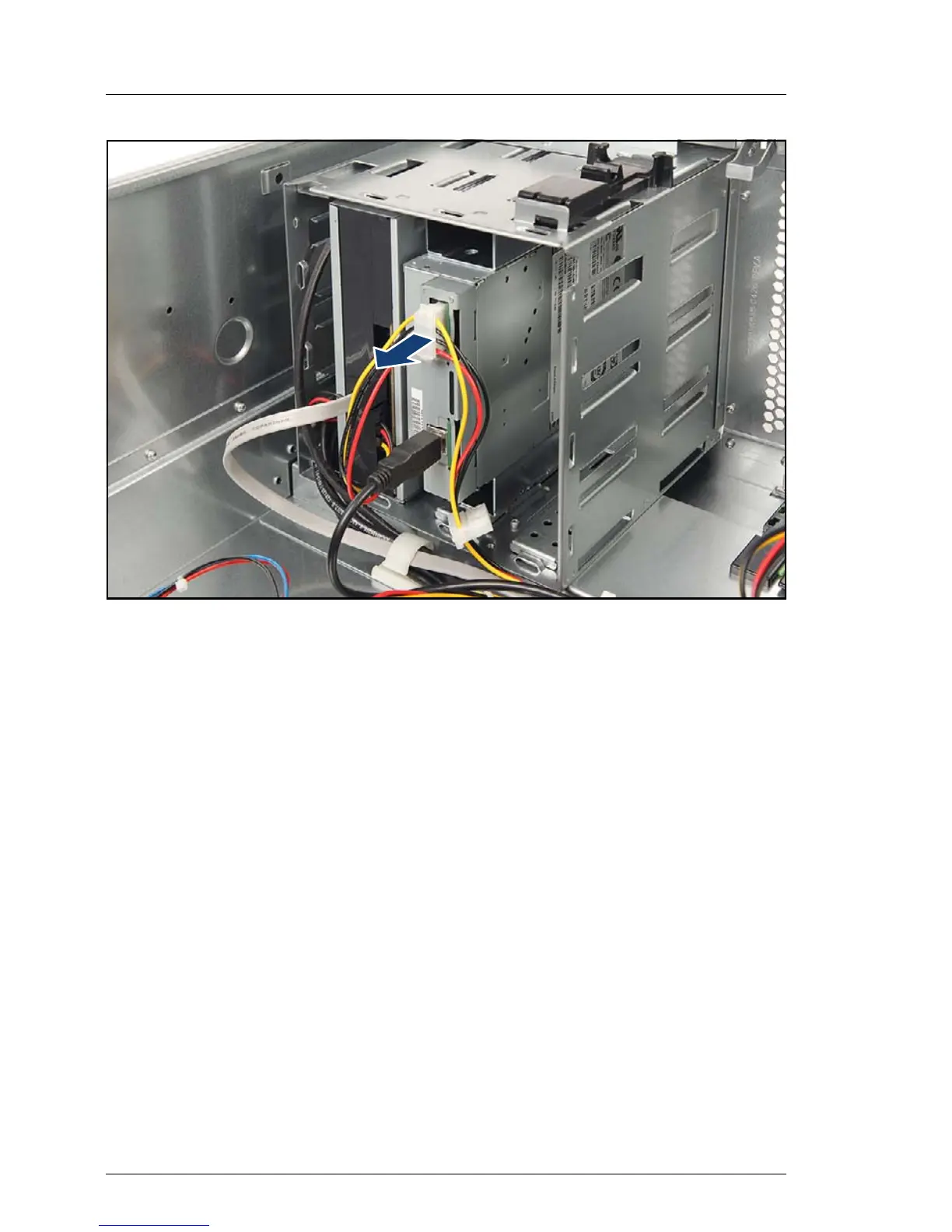

Figure 346: Disconnecting the power cable from the backup drive
Ê Disconnect the power connector from the backup drive:
– Power connector P3 if installed in middle bay
– Power connector P2 if installed in bottom bay
