Fujitsu PRIMERGY TX140 S1 Upgrade And Maintenance Manual

TX140 S1 Upgrade and Maintenance Manual 515
Cabling

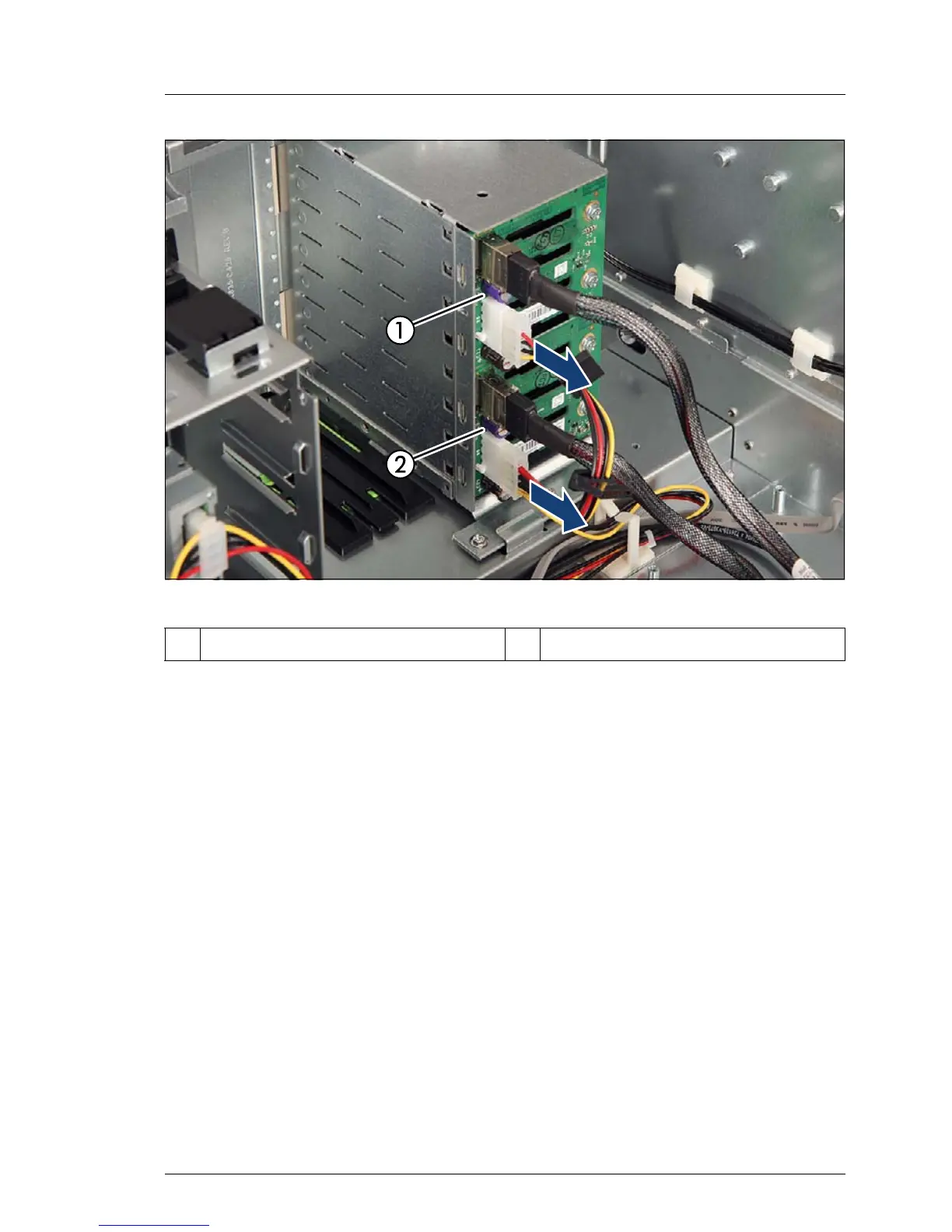

Figure 347: Disconnecting power cables from the 2.5-inch HDD SAS / SATA backplane
Ê Remove all power connectors from the 2.5-inch HDD SAS / SATA
backplane:
– Connector P9 from primary SAS / SATA backplane connector X6
– Connector P6 from secondary SAS / SATA backplane connector X6
1 primary HDD backplane 2 secondary HDD backplane
