Cabling

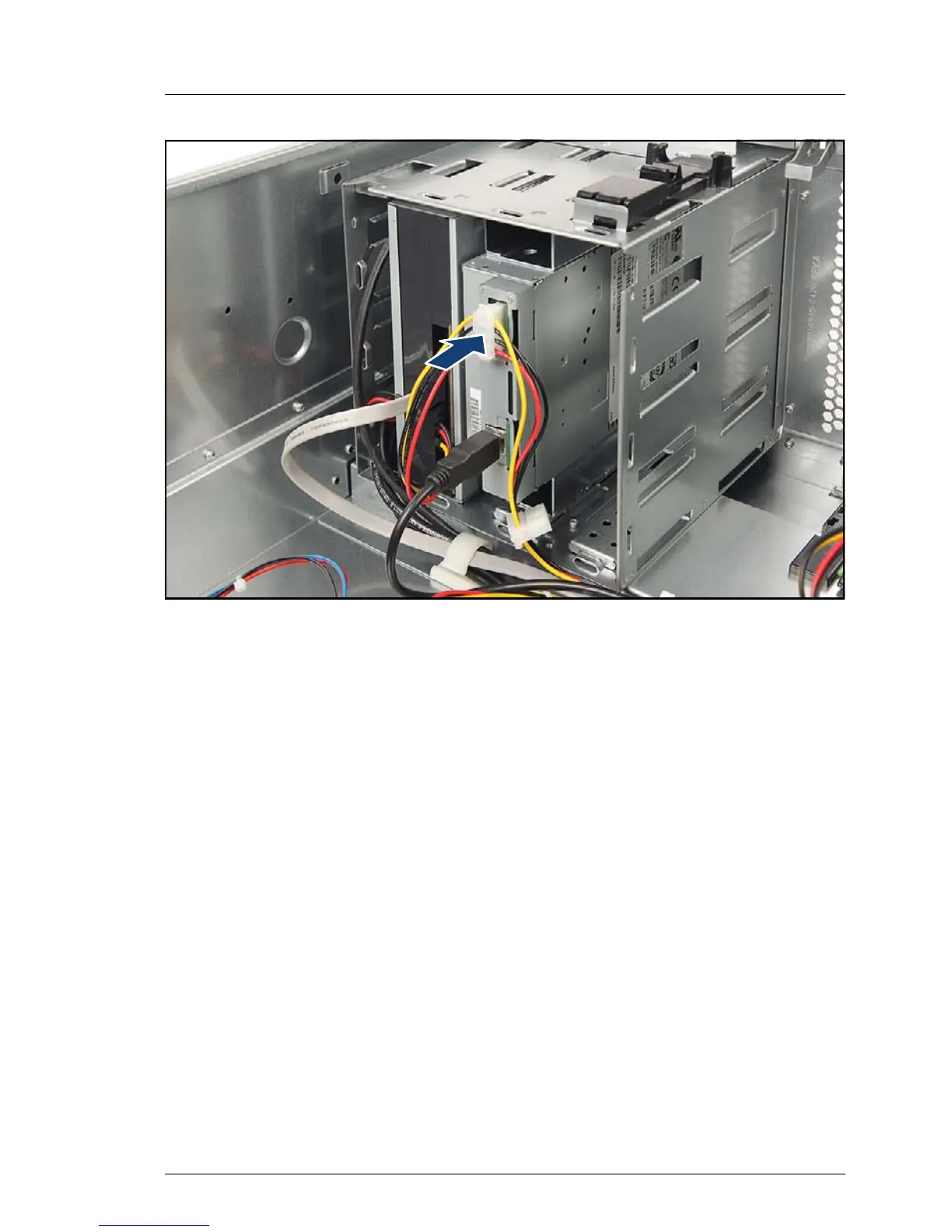

Figure 351: Connecting the power cable to the backup drive
Ê Connect a power connector to the backup drive:
– Power connector P3 if installed in middle bay
– Power connector P2 if installed in bottom bay
