520 Upgrade and Maintenance Manual TX140 S1
Cabling

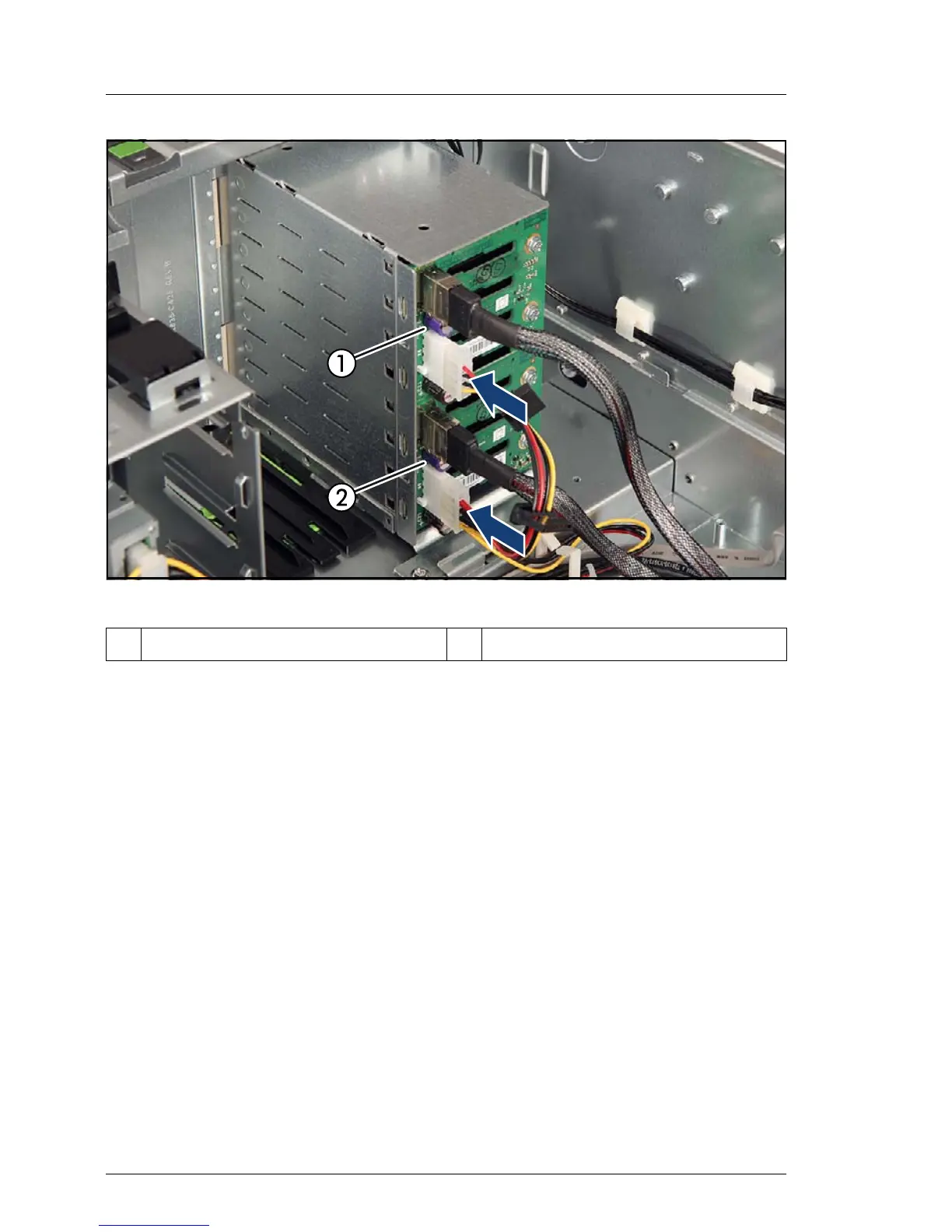

Figure 352: Connecting the power cable to the 2.5-inch HDD SAS / SATA backplane
Ê Connect power connectors to both 2.5-inch HDD SAS / SATA backplane:
– Connector P9 to primary SAS / SATA backplane connector X6
– Connector P6 to secondary SAS / SATA backplane connector X6
1 primary HDD backplane 2 secondary HDD backplane
