TX140 S1 Upgrade and Maintenance Manual 521
Cabling

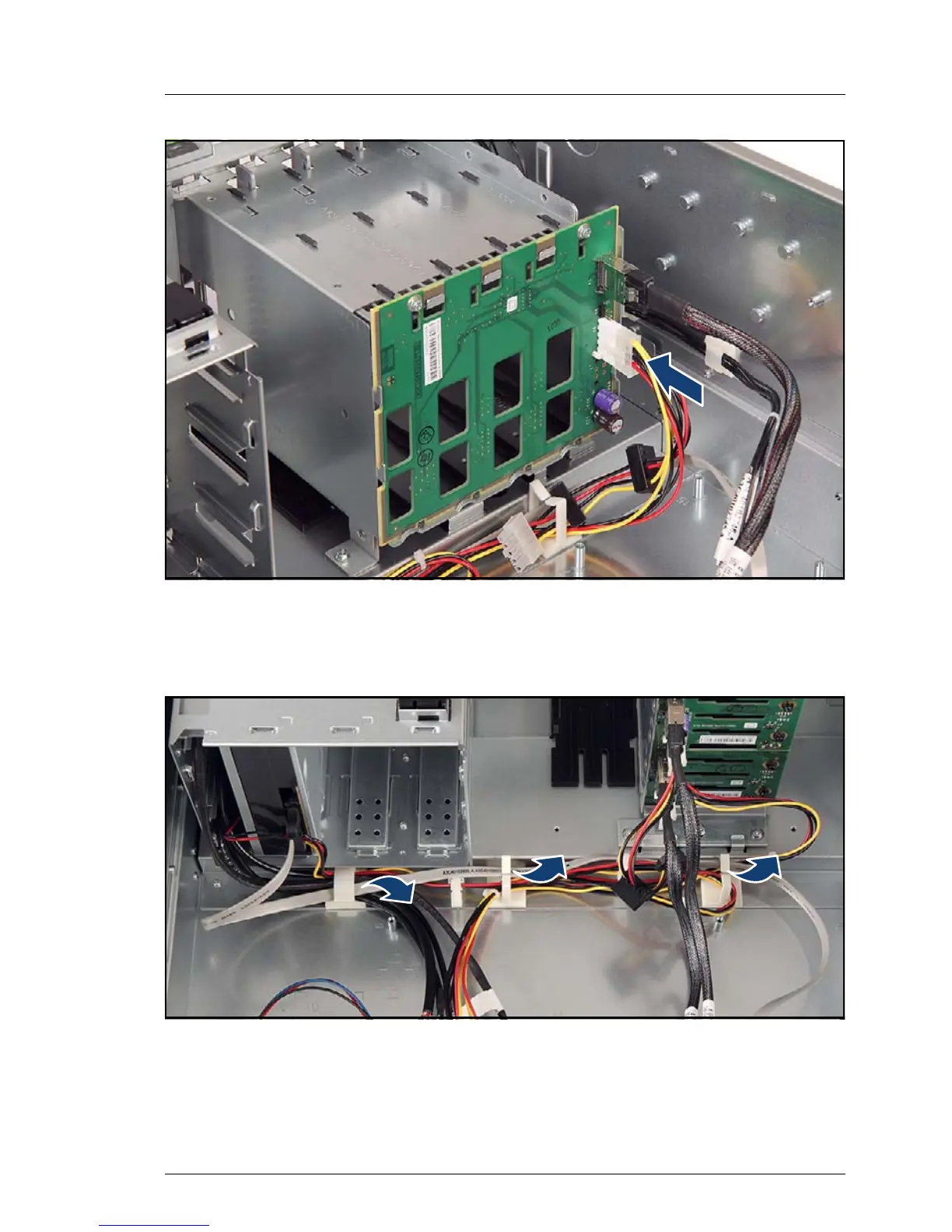

Figure 353: Connecting the power cable to the 3.5-inch HDD SAS / SATA backplane
Ê Connect the power cable connector P6 to the SAS / SATA backplane
connector X6.
Figure 354: Routing the power cable
Ê Run the power cable through the three cable clamps next to the drive bays
as shown.
