554 Upgrade and Maintenance Manual TX140 S1
Cabling

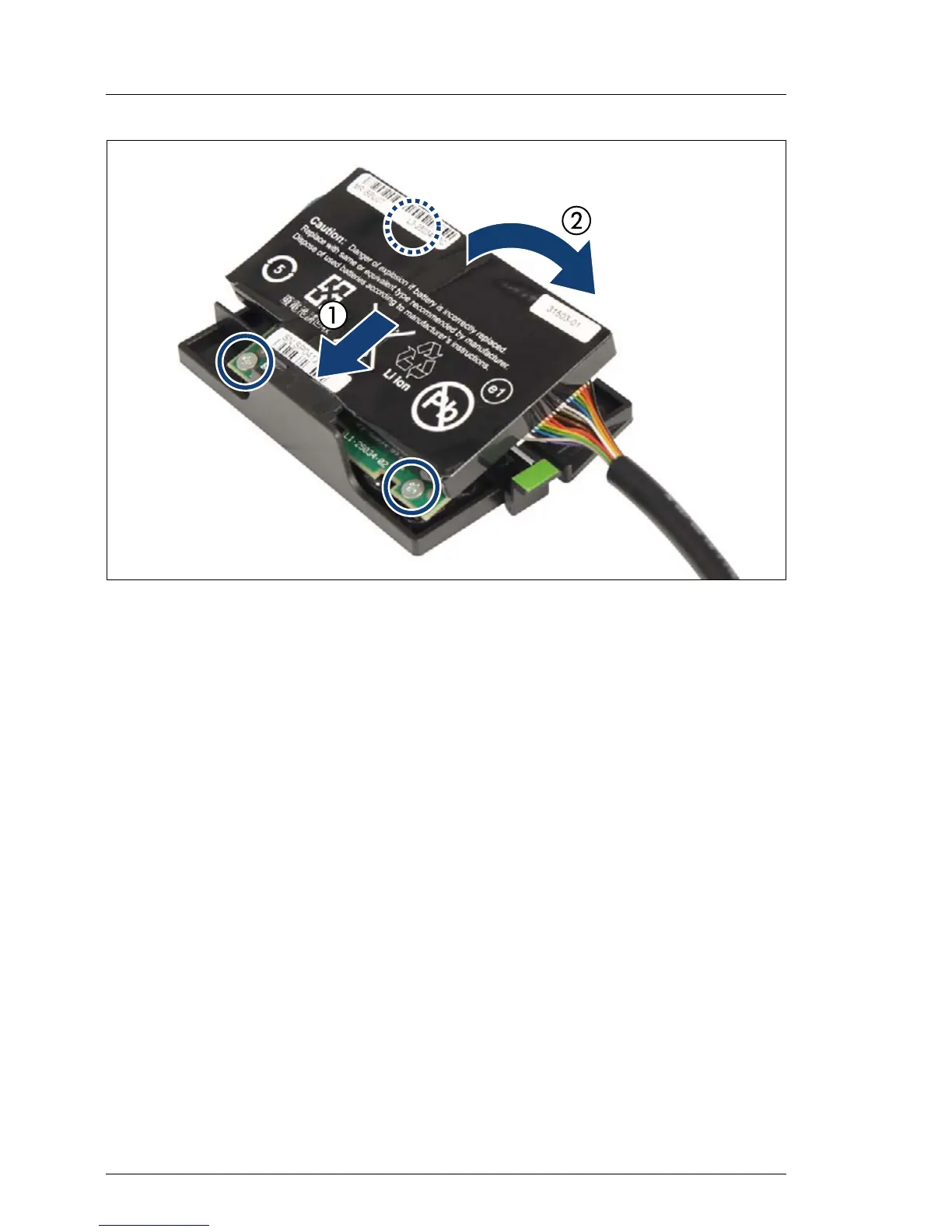

Figure 383: Installing the BBU in the BBU holder (A)
Ê At a slight angle, fit the BBU under the right retaining bracket on the BBU
holder (C26361-K644-C942) as shown (1).
Ê Fold down the BBU until it locks in place (2).
