TX140 S1 Upgrade and Maintenance Manual 555
Cabling

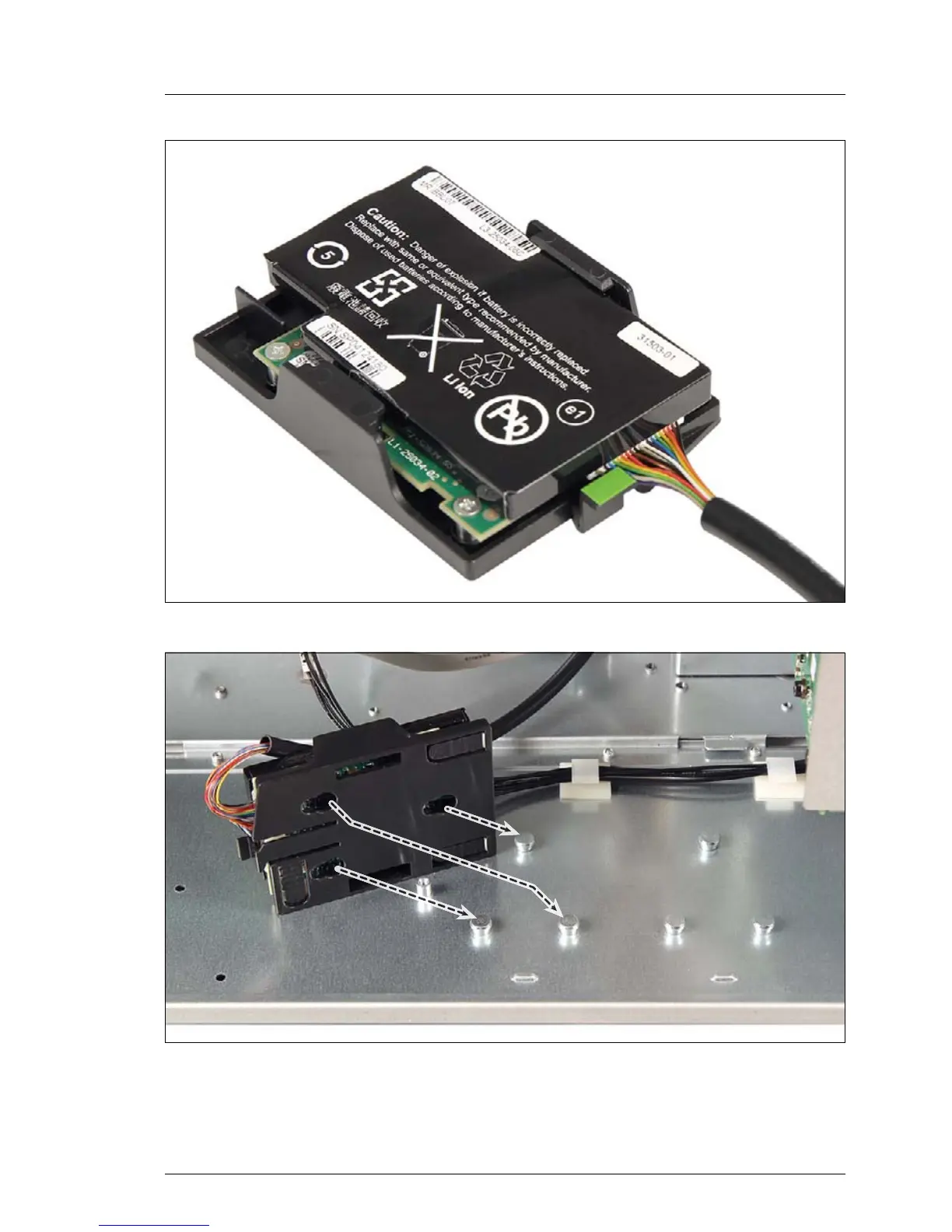

Figure 384: Installed BBU in BBU holder
Figure 385: Installing the BBU holder (A)
I Note the positions of the fixation bolts on the chassis floor and keyhole
slots on the BBU holder.
