TX140 S1
Upgrade and Maintenance Manual
557
Cabling

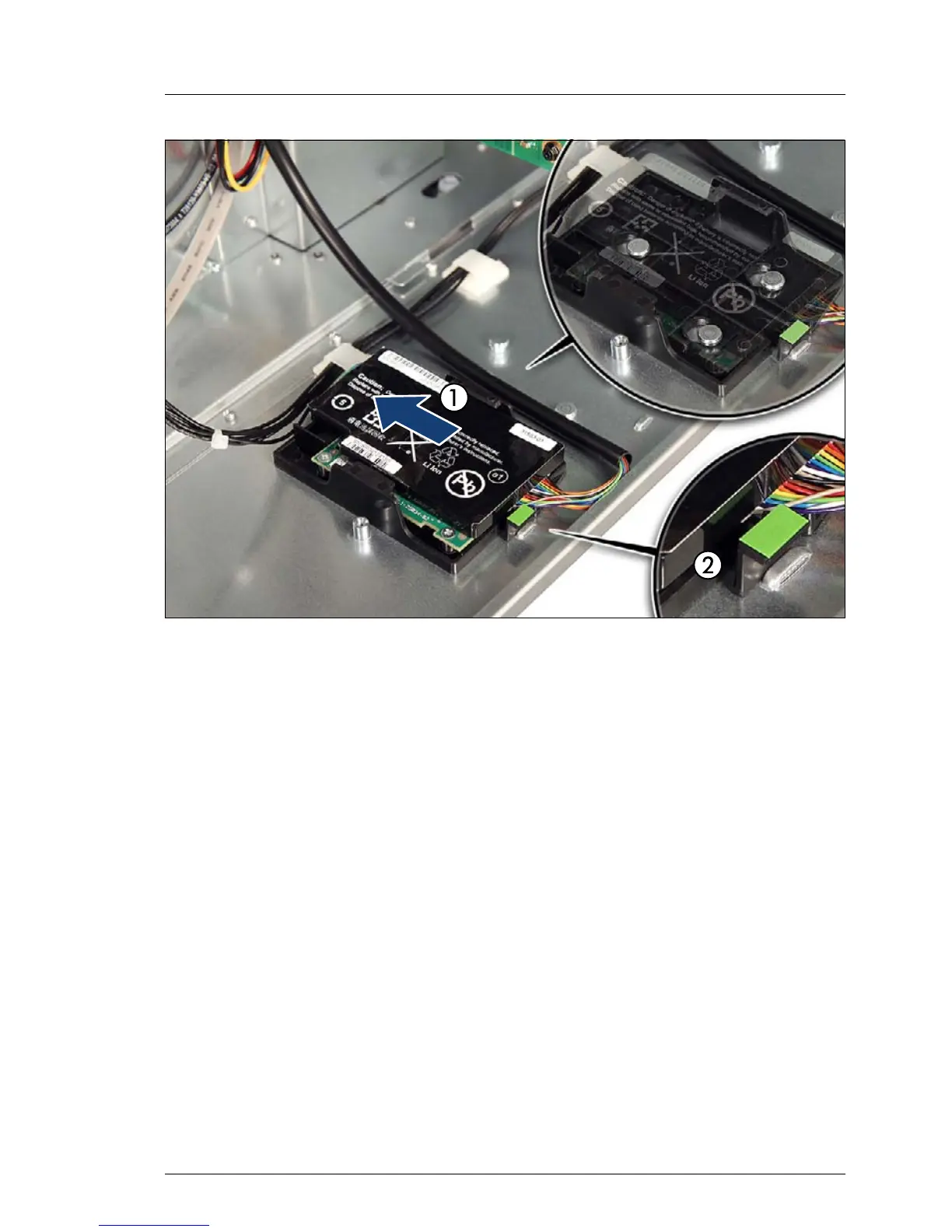

Figure 387: Installing the
BBU
holder (C)
Ê
Slide the BBU holder to the right as far as it will
go (1).
The fixation bolt
s on the chassis floor will lock
in the narrow ends of the
keyhole slot
s on the BBU holder (see close-up).
Ê
Ensure that the locking handle on the BB
U holder properly snap
s in place
(2).
