558 Upgrade and Maintenance Manual TX140 S1
Cabling

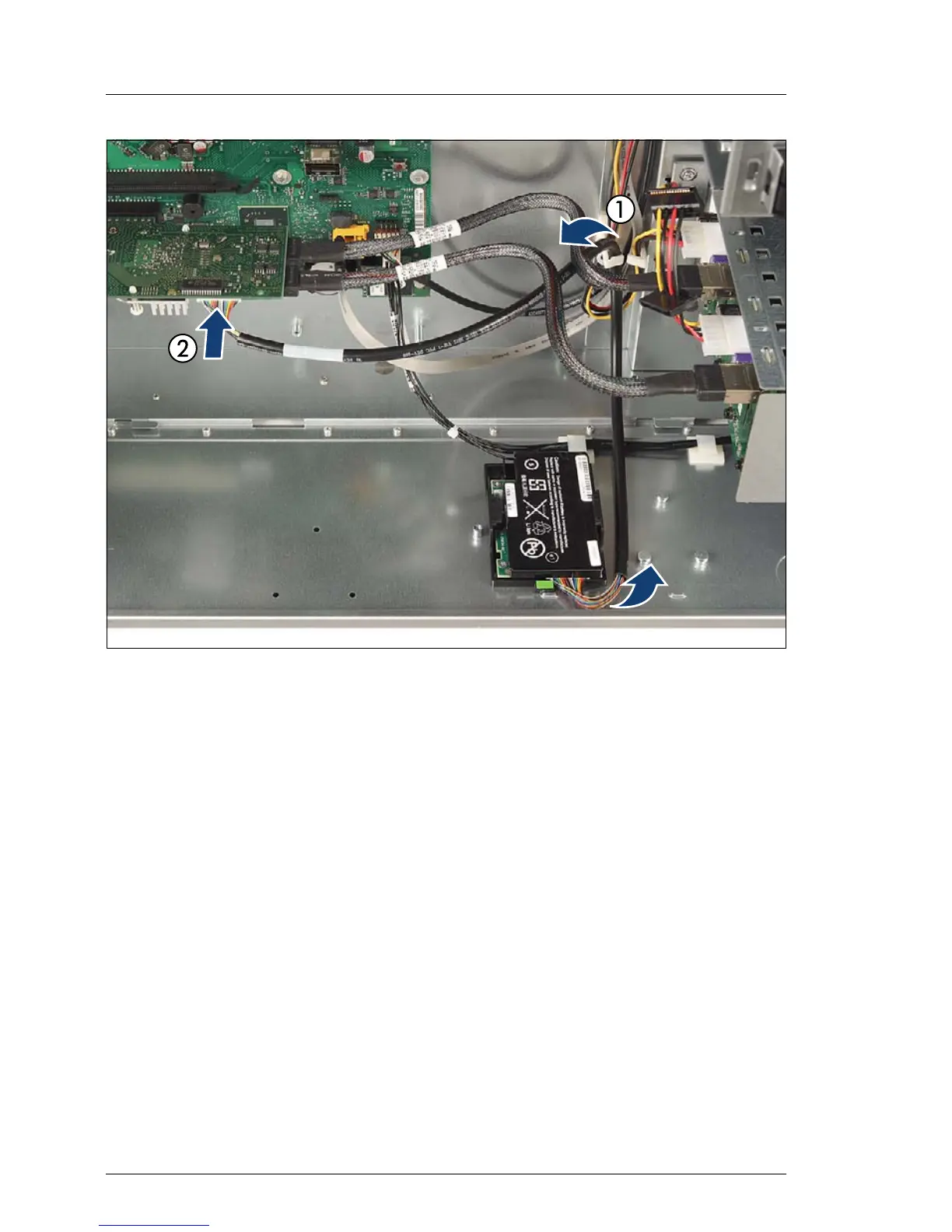

Figure 388: Connecting the BBU to the controller
Ê Run the BBU cable through the cable clamp next to the HDD cage as shown
(1).
Ê Connect the BBU cable to the RAID controller (2).
I The connector side with the three dots points towards you.
