TX140 S1 Upgrade and Maintenance Manual 63
Basic hardware procedures
Disconnecting power cords

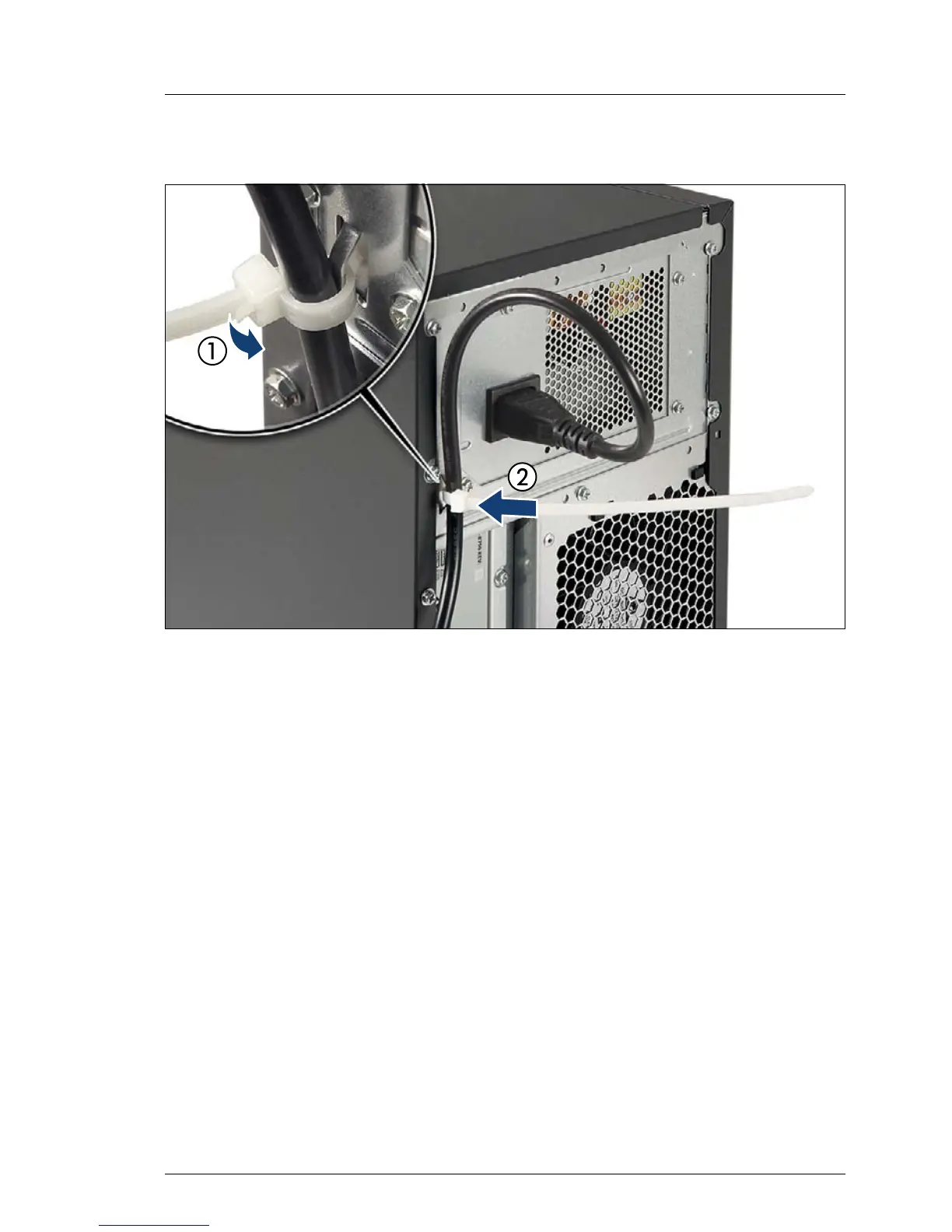

Figure 9: Removing the power cord from the PSU cable tie (example: standard PSU)
Ê Pull out on the locking lever on the PSU cable tie (1) and loosen the loop (2).
Ê Disconnect the power cord from the PSU and remove it from the cable tie.
I If you are using a redundant power supply with two hot-plug PSU
modules, proceed with the second PSU in the same way.
