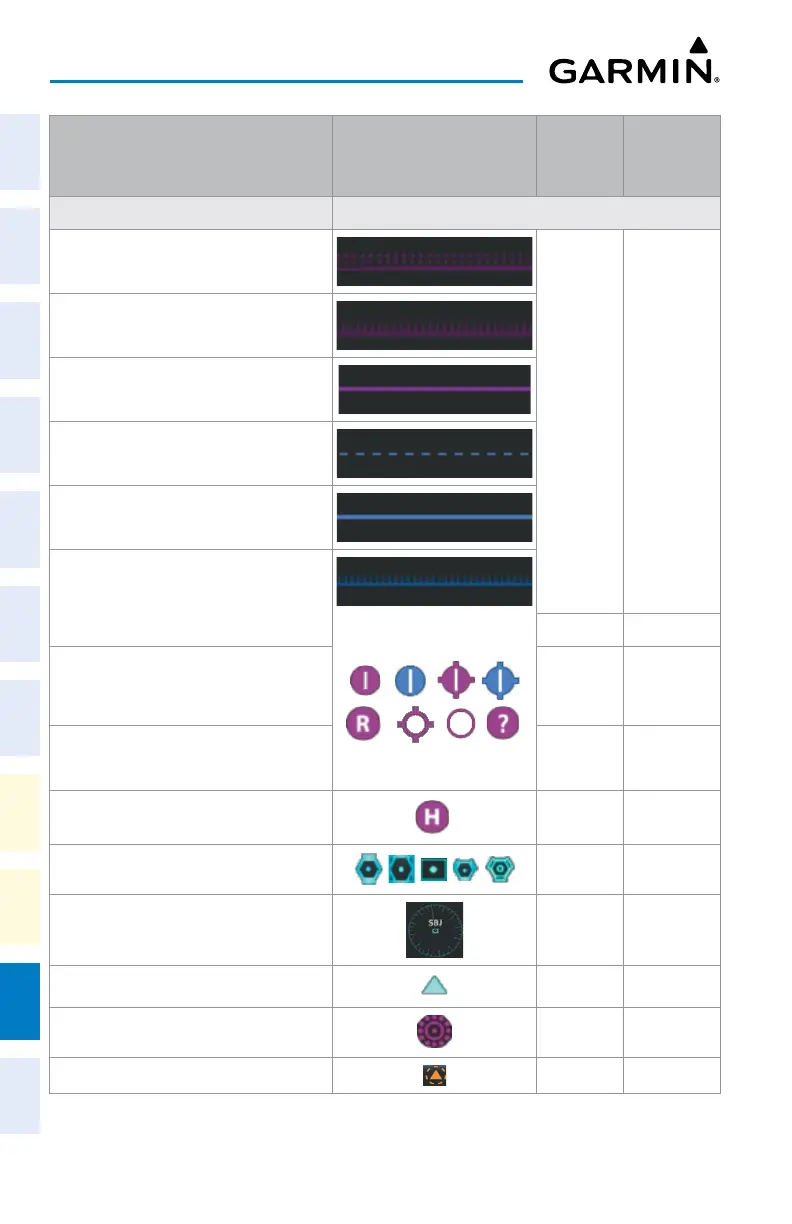

Aviation Symbols Symbol
Default
Range
(nm)
Maximum
Range
(nm)
Other (see below)
- ADIZ
50 250
- Alert
- Class E
1
- Class G
1
- Temporary
1
- Danger, Warning, Unknown, Special
Rules
1
, and Training
1
Large Airport (Longest Runway ≥ 8100 ft) 100 1000
Medium Airport (8100 ft > Longest
Runway ≥ 5000 ft, or Longest Runway <
5000 ft with control tower)
50 400
Small Airport (Longest Runway < 5000 ft
without control tower)
25 150
Heliport 25 150
VOR Waypoint 50 250
- VOR Compass Rose On/Off N/A N/A
INT Waypoint 10 40
NDB Waypoint 25 50
VRP Waypoint
25 40
