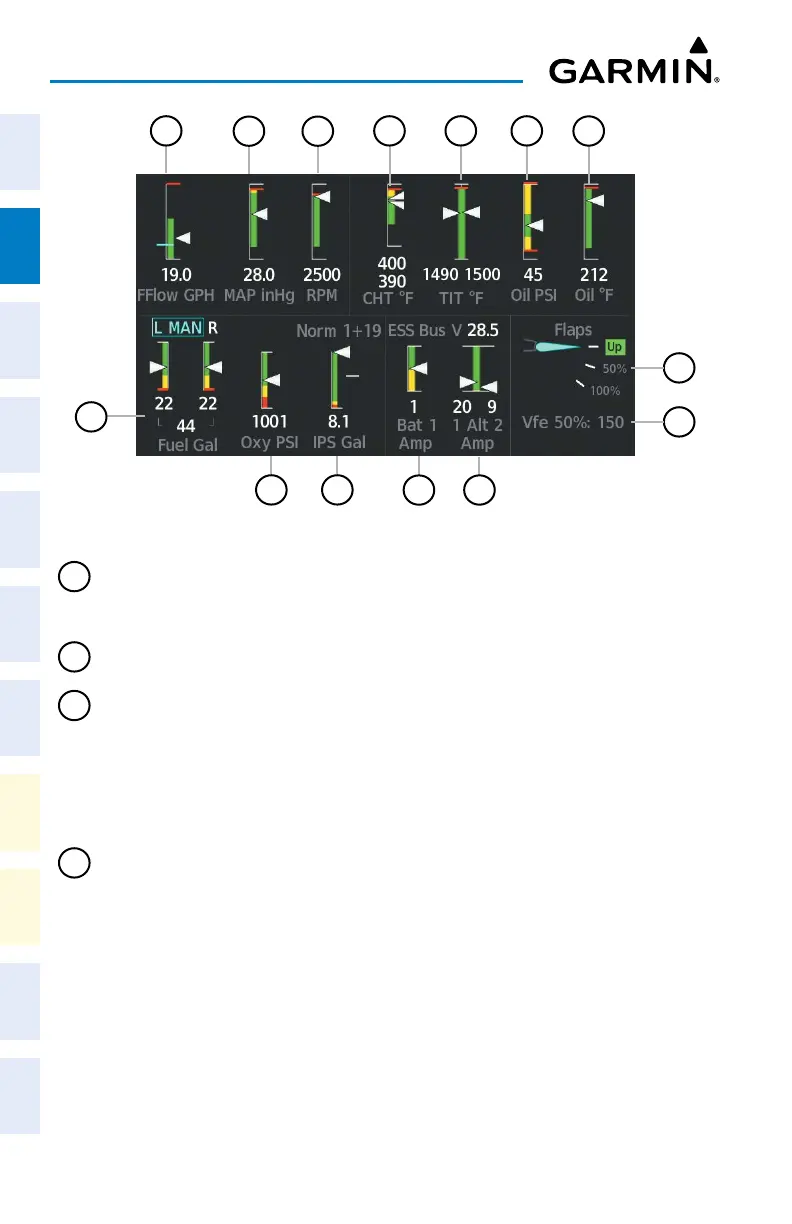

EIS Display (Reversionary)
2
12
5
7
4 3
11
15
13
98
10
14
6
1
% Power
A digital display and a white pointer along a green band indicate the
% power normal operating range. The gauge will display 0 to 100%
power while the numerical display will display 0 to 140%.
2
Fuel Flow (GPH)
This indicates the current fuel flow in Gallons Per Hour (GPH).
3
Exhaust Gas
Temperature (EGT)
or Turbo Inlet
Temperature (TIT)
Exhaust Gas Temperature
Displays the coldest and hottest Exhaust Gas Temperatures in degrees
Fahrenheit.
Turbo Inlet Temperature
Displays the left and right Turbo Inlet Temperatures in degrees
Fahrenheit.
4
Cylinder Head
Temperature (CHT)
Displays the head temperature of the hottest and coldest cylinder.
