Installatio
n
3-7

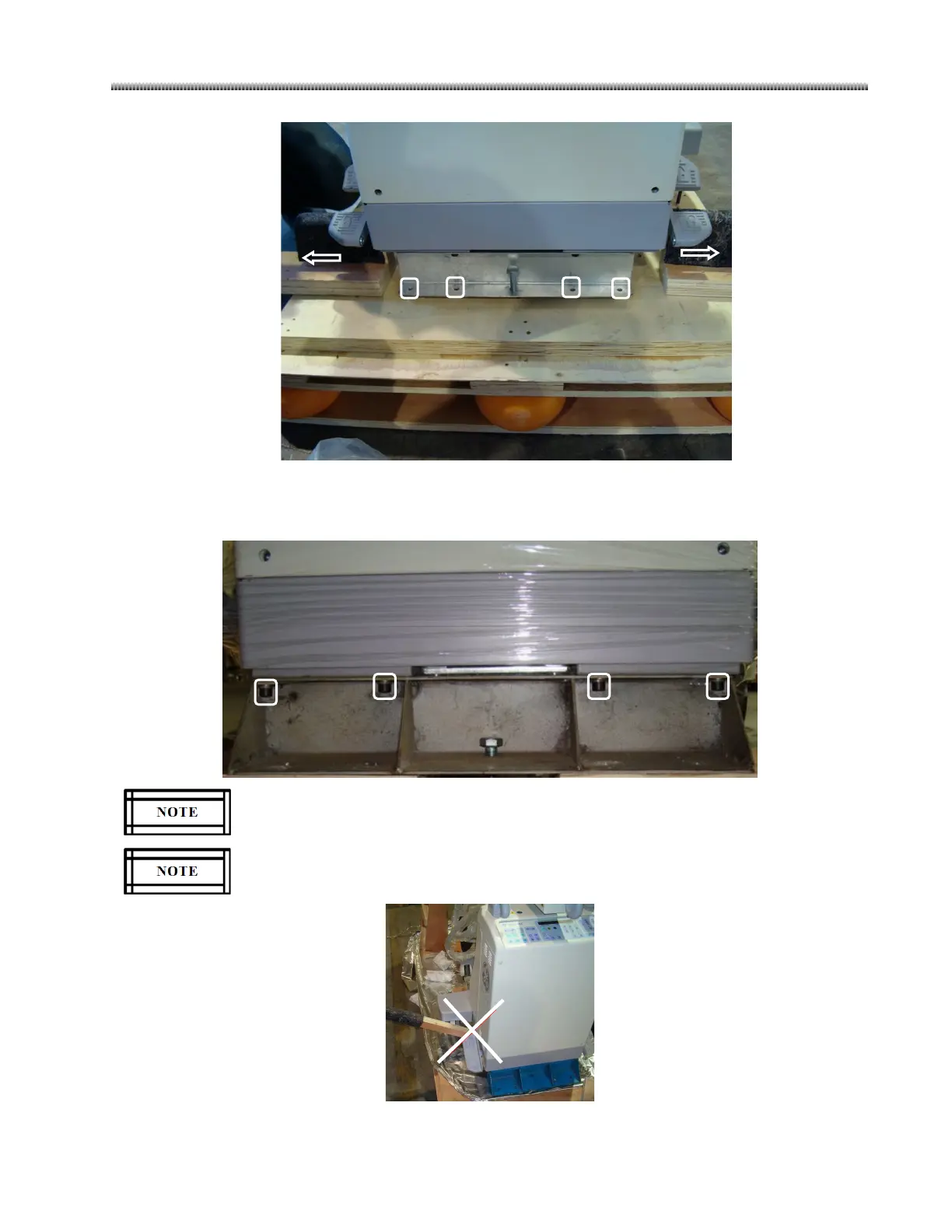

6.
Fasten
the
jackscrew
to li
ft
the back
of mainfram
e to remove th
e wood supp
ort, as abov
e picture.
A
fter removi
ng the wood
support, rel
ease central
screw to lan
d steering
wheels on pallet
, and
then remove th
e metal bracket.
Lock the steering brake
before release the
centra
l screw.
Don
’
t pr
y
the side the side metal cover of Mainframe
142
144
Table of Contents
default chapter
11
Table of Contents
11
Introduction and Safety
19
Introduction
20
Manual Organization and Use
20
Objective
20
Qualifications
20
Scope
20
Service Philosophy
20
Unauthorized Modifications
20
Ingress of Fluids
22
Safety
22
Safety Hazard Alerts
22
Electrical Shock
23
Explosion
23
Equipment Stability
24
Thermal Hazards
24
X-Radiation
24
Motorized Mechanical Movement
25
Safety Interlock
25
Work on Parts with Lead Materail
25
Labels
26
Locations of the Labels
40
Symbols
43
Electromagnetic Compatibility Statement
45
Lock-Out, Tag-Out
52
System Overview
55
System Descriptions
56
System Overview
56
Component Locator
58
System Block
60
Power Distribution and Control
61
Subsystem
61
Mother Board
70
Mainframe Control Board
71
Display Board
86
Keyboard Control Board
89
Updown Board
91
System Interface Board
96
Collimator Control Board
101
Kv Control and IGBT Assembly
104
Filament Driver Board
109
Monoblock
113
X-Ray/Key Switch and Emergency Switch
115
Image Chain
117
Computer and Peripheral
129
Ups
131
Chapter3
137
Installation
137
Overview
138
Pre-Installation
138
Dimensions and Weights of System
138
Site Requirement
138
Power Supply Requirement
139
Environments
139
Tools and Test Equipment
140
Unpacking
141
Shipping Container Inspection
141
Unpack C-Arm
142
Unpack Workstation
146
System Inspection
148
Label Inspection
148
External Inspection
152
Internal Inspection
153
System Setup
154
Power Supply Adaption
154
UPS Setup
155
System Power on
157
Facility Leakage Current and Ground Continutiy Test Notificataion
157
System Configuration in Admin Interface
158
DICOM Setup and Check
161
DICOM Worksheet
169
Functional Checks
172
Workstation Checks
172
C-Arm Checks
175
Auto Technique Tracking
181
Image Resolution
182
Dose Limitation Check
182
Beam Alignment Check
183
DAP Accuracy Check
183
System Status Backup
183
Fill in the Product Locator Card
184
Options Installation
185
CD/DVD Burner Installation
185
Laser Aimer
186
Video Distributor
189
Printer
193
Film Cassette Holder
195
Tube Skin Spacer
196
Pedal Switch
197
Removable Filter and Sensor Installation
197
Removable Grid
198
Wireless DICOM
200
Mono LCD Monitor Installation
206
Software Option Installation
206
Room Interface (RIF)
206
Fill in the Product Locator Card for Option
207
Installation Check List
209
Reporting
211
Chapter4
212
Calibration
212
Overview
213
Kv Measurement and Adjustment
214
Kv Measurement and Accuracy Check
214
Kv Adjustment
216
Ma Measurement and Calibration
220
Ma Measurement and Accuracy Check
220
Ma Calibration
224
Mas Measurement and Calibration
232
Mas Measurment and Accuracy Check
232
Mas Calibration
232
X-Ray Generator Warm-Up
232
Beam Alignment and Image Calibration
233
Camera Centering
233
BAFT/UBAT Installation
238
Collimator Centering
242
Collimator Check and Calibration
245
Field Size Check and Calibration
254
Limiting Field Size (Collimator Iris Field Size)
256
ABS Tracking Check and Adjustment
257
Limiting Resolution
261
Shading Correction Check and Calibration
267
DAP Accuracy Verification and Calibration
269
DAP Calibration Verification
269
DAP Accuracy Application Verification
271
DAP Calibration
274
Monitor Brightness and Contrast Adjustment
276
Keys Assignment and Operation LED
276
Lock and Unlock the OSD Menu
276
Key Functions in the OSD Menu
276
Brightness and Contrast Adjustment
277
Power Input Tolerance Check
279
Input Voltage Check
279
Input Voltage Calibration
280
Software
284
Overview
285
Service Tool
285
System Information
286
Configure Product
287
Calibration
288
Exposure Management
289
Imaging Processing Config
294
Maintenance
296
Log Viewer
297
Software Installation and Upgrade
300
Install Operating System
300
Install/Upgrade Application Software
306
Firmware Upgrade
311
MCU Firmware Upgrade
311
CPLD Upgrade
319
Troubleshooting
335
Overview
336
Error Recovery Steps
336
Event Messages
336
Structure of Message Code
336
Definition of Code
337
Message List
339
Troubleshooting Guide
403
Workstation and Control Panel Boot up Display
403
Shut down Workstation and Control Panel Display
403
Troubleshooting Tree
404
Replacement
408
FRU List
409
Locations of FRU
417
Replacement
419
General Screws Fastening Torque Reference
419
Calibration Matrix
421
Calibration Tool Matrix
422
Compatibility Matrix
423
System Covers
424
Brake, Handle and Wheel
430
Monoblock
437
Collimator
439
Pwas
440
Parts in Computer and Peripheral
449
Exposure Indicator (5331638)
452
Monitors
453
CCD Camera
454
Image Intensifier with Power Supply
455
Image Intensifier Power Supply
457
UPS (5075513) or UPS Battery (5781170)
459
Misc. Parts
460
Interconnect Cable Kit (5075971)
469
Bundle Cable: (5075970)
473
Fuse Kit (5075919)
476
Linear Actuator (5075921)
477
Switches
481
Orbital Rolling Wheels Kit (PN: 5599917)
482
Others
484
Periodic Maintenance
488
Overview
489
Safety
489
Tools and Test Equipment
490
PM Checklist
491
Administrative Information
493
Safety Inspection
493
Antistatic Drag Wires
493
Electrical Plug and Power Cord
493
Interconnect Cable and Connector
493
Footswitch Cable and Pins
493
Ground Continuity
494
Facility Leakage Current Test Notification
494
PC Clean and UPS Performance Check
495
PC Clean
495
UPS Performance Check
496
System Function Checks
497
Perform Power on Checks
497
C-Arm Checks
497
Workstation Checks
500
X-Ray Generator Accuracy Tests
501
Kvp Accuracy
501
Ma Accuracy
501
Mas Accuracy
501
Image Quality Check
503
Field Size Check
503
Auto Technique Tracking
503
Image Resolution
503
Shading Correction Check
504
Dose Check
504
Dose Rate Check
504
DAP Accuracy Check
504
Reporting
504
Install Equipment Covers
504
Complete PM Comments
504
Technical Reference
505
Overview
506
System Specifications
506
Safety Classification
506
Environmental Requirements
506
Power Requirements
506
Circuit Breaker
507
Earth Leakage Current
507
Physical Specifications
508
Specification of Key Components
510
X-Ray Generator
510
X-Ray Tube
512
X-Ray Tube Assembly
513
Collimator
513
Others
514
Tube Rating Chart
515
Filament Emission Characteristics
515
Single Load Ratings
516
Thermal Characteristic
517
Radiation Safety Specification
518
Scatter Data
518
Scatter Radiation Specification
519
Material Safety Data Sheets
525
Material Recycling
525
Appendix-System Schematics
526
