GE Brivo OEC 715 - UPS (5075513) or UPS Battery (5781170)

Brivo OEC 715/785/865 Mobile C-Arm X-Ray Product Service Manual
7-52
7.3.16. UPS (5075513) or UPS Battery (5781170)
1. Power off the system and
disconnect Workstation’s AC plug
from the AC receptacle.
2. Remove the rear cover, left and
right side covers of the Workstation.
3. Open the Power Distribution
package.
4. Disconnect the power cable
connected to UPS. Use the handle
to remove the UPS.

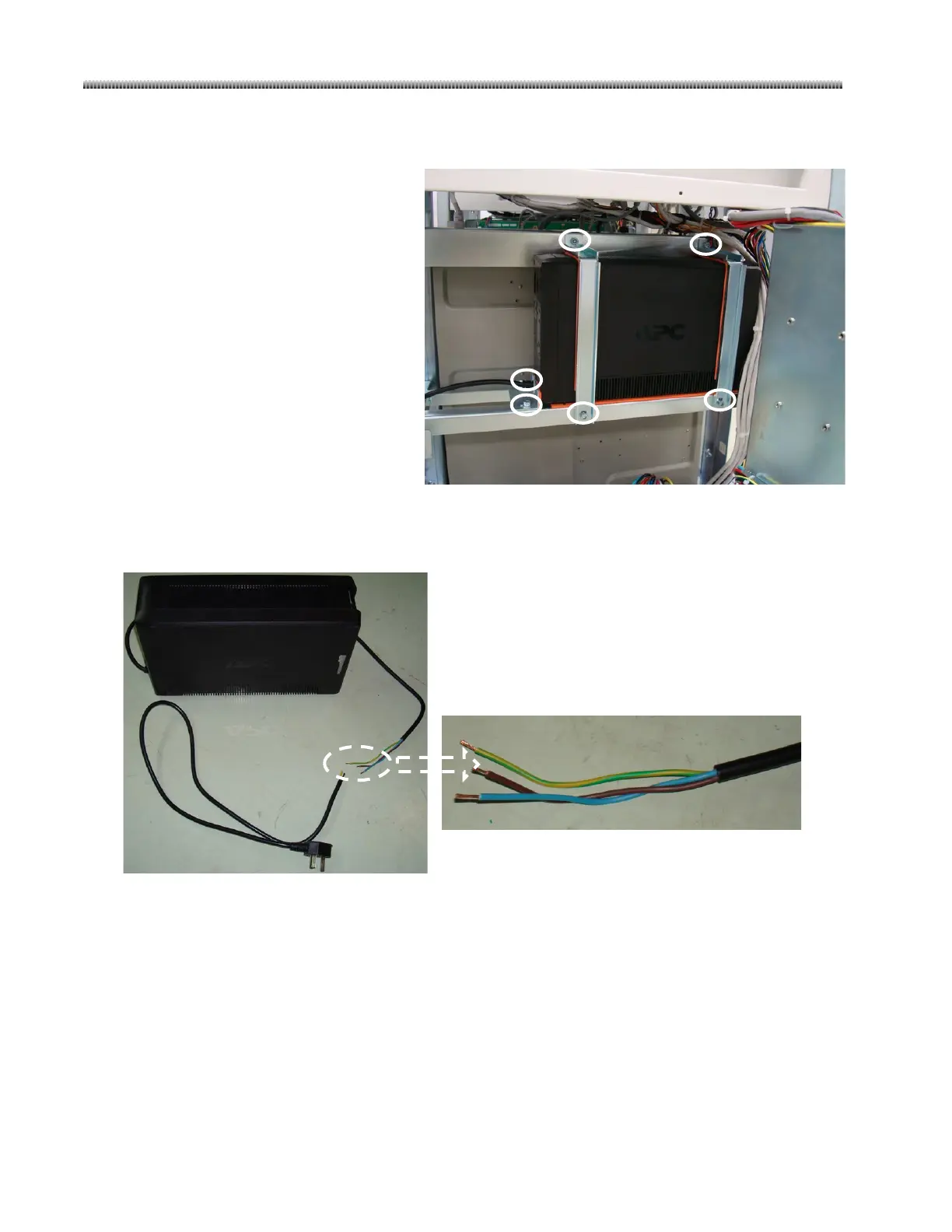

5. Release 6 secure screws of the
baffle, and then remove UPS.
6. For UPS battery (5781170), replace the New UPS battery and go to step 8 directly.
7. For UPS (5075513), Plug the UPS battery connector of new UPS. Cut off the other end of the
power supply cable and strip off 3 wire ends.
8. Reassemble the UPS and connect the cable.
9. Connect the interconnect cable to C-Arm. Plug the power cord into appropriate AC receptacle.
10. Power on the system. Verify that the system can power on normally. Power off the system. Verify
that the system can shut down without error.
11. Install all the covers of the Workstation.
