3.7.3. Video Distributor
The video distributor provides DVI-D (DVI-Digtal) Video output Signal, So only the DVI-I and DVI-D
connectors are available as the DVI Video output connector.

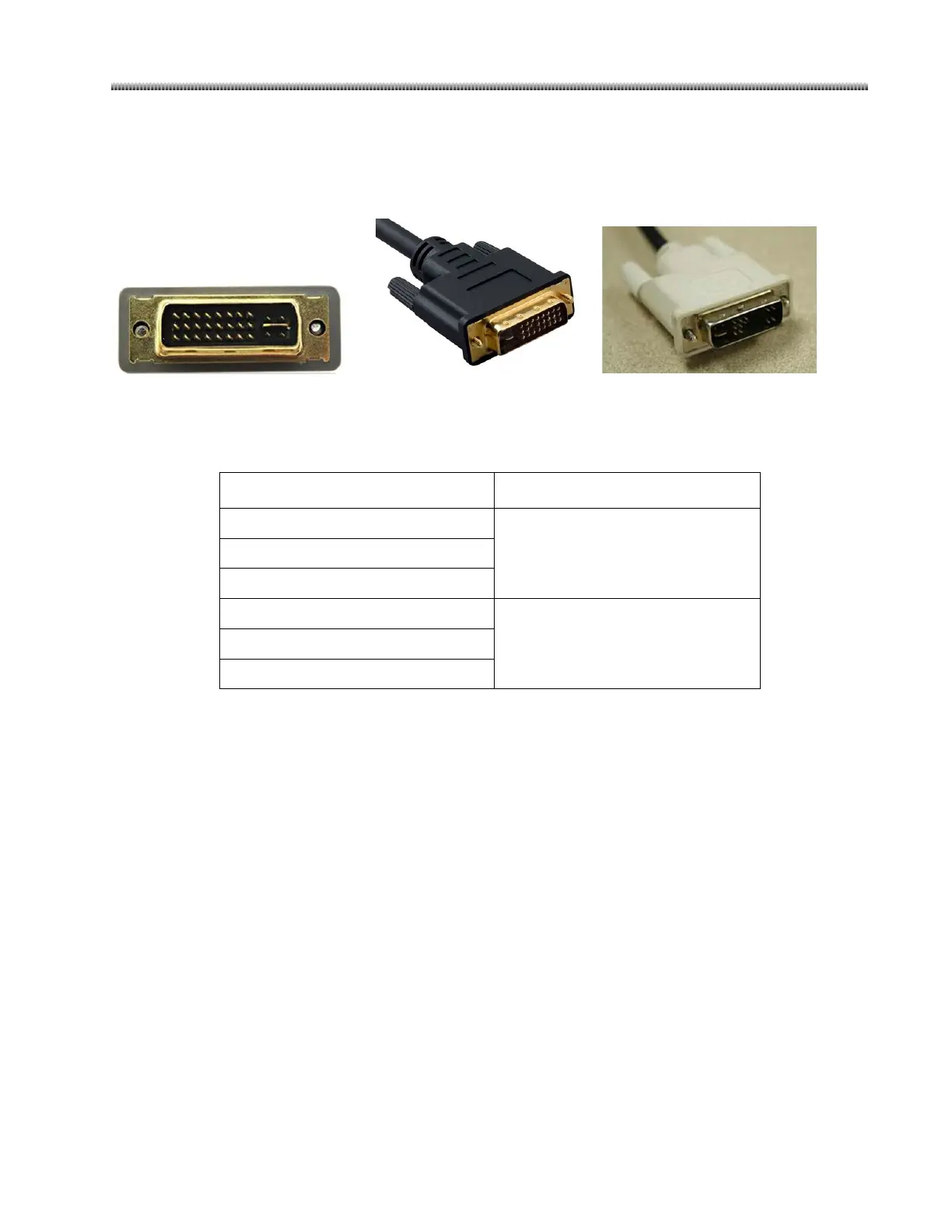

DVI-I(Available) DVI-D(Available) DVI-A(Non-available)
Following convertor list is provided as frequently-used type for reference.
There are two type of video distributor (FRU: 5332898 and FRU: 5075968) with different Dimension.
Perform the following procedures to install the video distributor (FRU: 5332898).
1. Power off the system. Remove the rear and low side covers of the workstation.
2. Pull out the cabinet of workstation and remove the cosmetic cover for distributor.
3. Connect video cable (PN: 5085777) to video distributor output 4. Connect power cable (PN: 5085717)
and route power cable to the bottom of Workstation.
4. Connect video cable (PN: 5085777) to left monitor video cable.
Available
Non-available
