7.3.21. Linear Actuator (5075921)

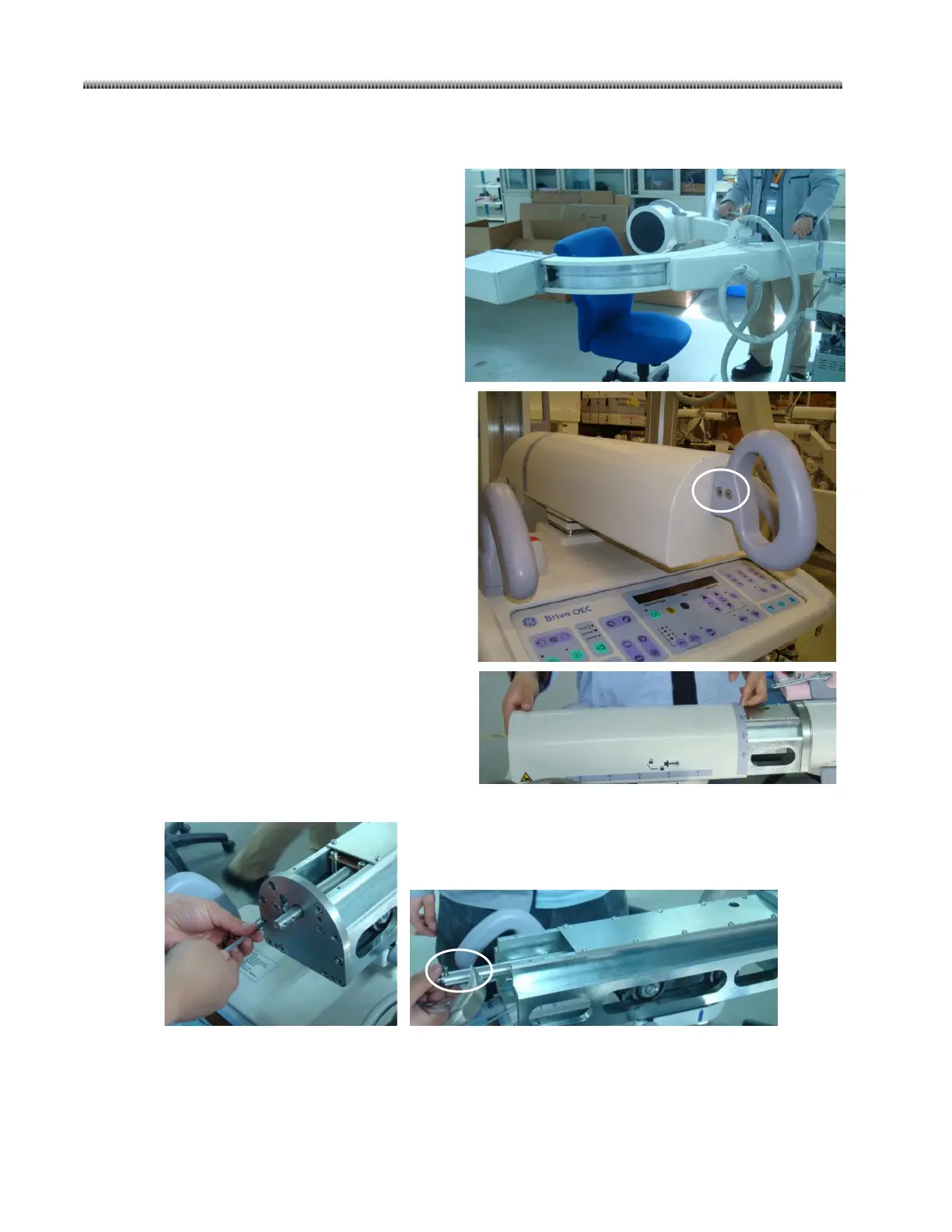

1. Remove the C-Arm console covers. Rotate the
C-Arm
to the horizontal position. Lock the
orbital, wig-wag and lateral brakes.
2. Loosen 2 screws from horizontal brake handle
and remove the handle.
3. Remove the screws of the cross-arm cover and
remove the cover.
4. Loose the screws and remove the rear plate. Remove the pin in the shaft.
