Replacement
7-71

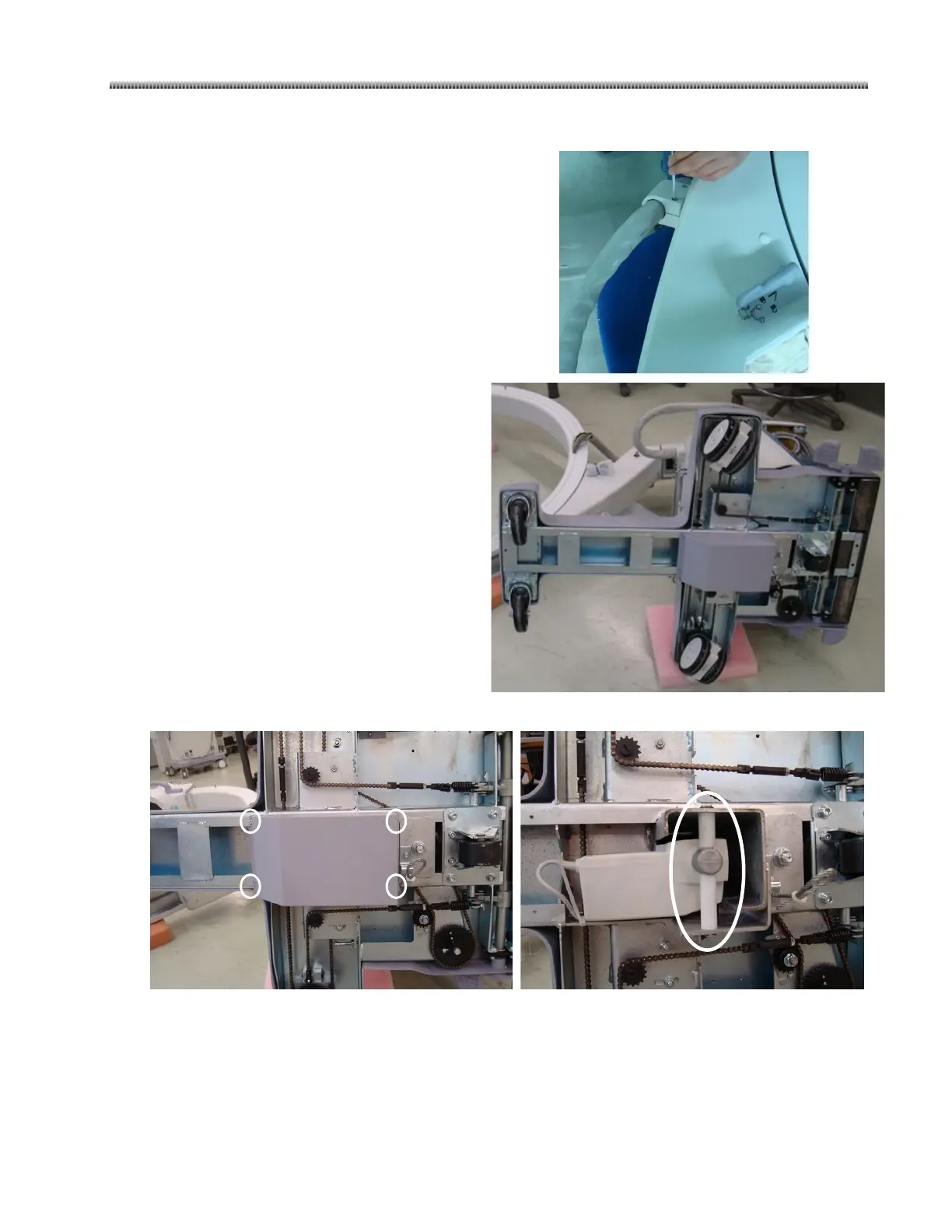

5. Put a wood block or equivalent to under console to prevent the base from tilting backward.
6. Loosen the screws on cable holder and release
the cable. Draw out the C-Arm and Cross-arm
assembly slowly.
7. Use a wood block or equivalent to support the
C-arm. Place something between the floor and
base (for example: foam). Lay the C-Arm
console down as pictured to the right side.
8. Remove the bottom cover under the linear actuator. And then remove the lower shaft.
9. Unplug the J4 from the up down drive board. Cut off the 2 wires. Cut off the binding tie and then draw
out the cable from the hole.
To Next Page
