Brivo OEC 715/785/865 Mobile C-Arm X-Ray Product Service Manual
3-58

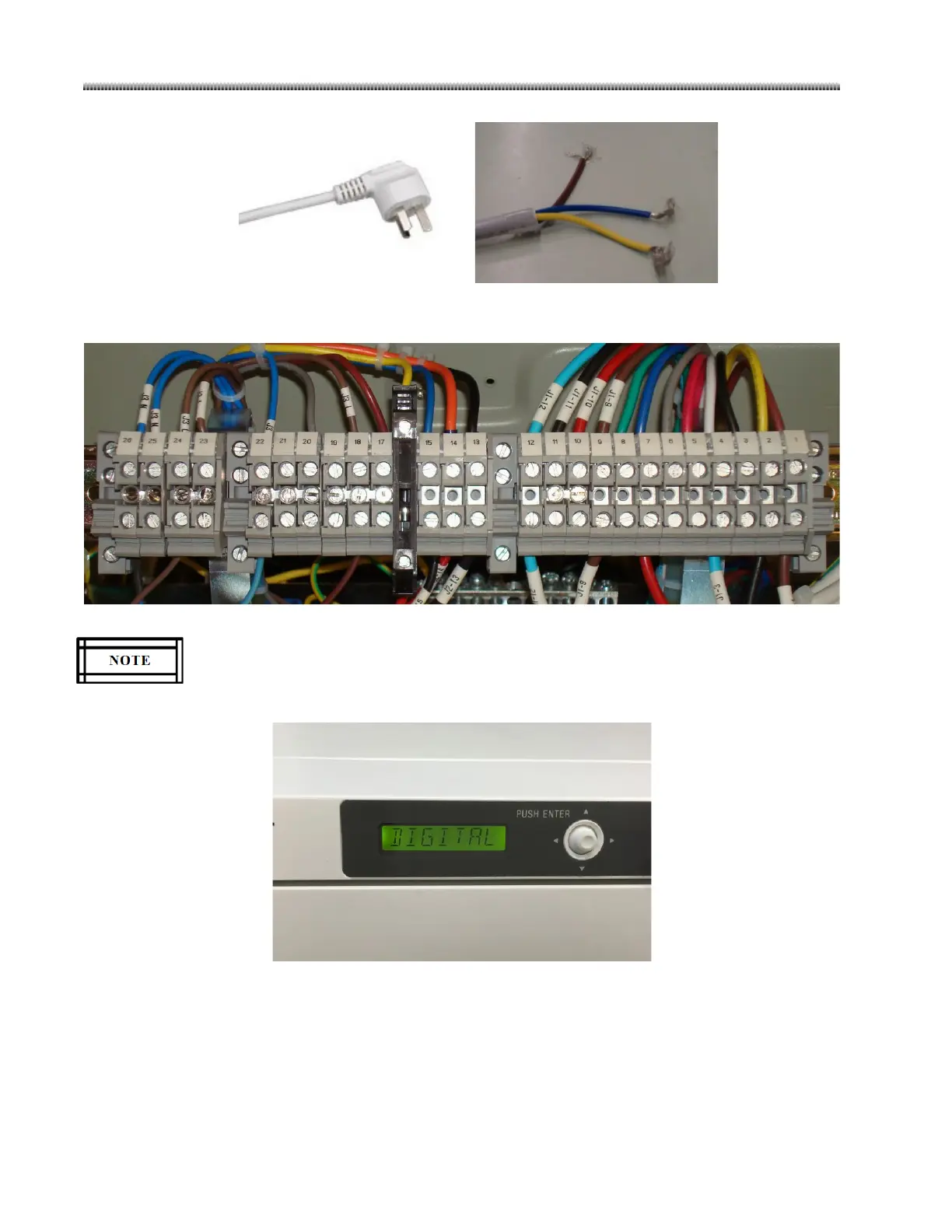

5. Connect the wires to the terminal blocks at the bottom of the workstation (connect the L line (brown)
to connector 17 or 18 or 19, N line (blue) to 20 or 21 or 22 and the ground line (yellow and green) to
earth port. Put the power supply cable along the wiring harness to get a good layout.
For UP-991AD /UP-971AD/UP-X898MD/ UP-D898MD, they shall be configured to legacy
driver before use.
6. Power on printer, Press the menu button and scroll down or up to select DIGITAL option.
7. Press the menu button and scroll down or up to select DRIVER option.
