GE P742

Measurements and Recording
P74x/EN MR/N
a7
MiCOM P74
1, P742, P743
(MR) 8-
11
MR
2.5 Viewing event records via S1 support software
When the event records are extracted and viewed on a PC they look slightly different than
when viewed on the LCD.
The following shows a P741 example of how various events appear when displayed using
S1:

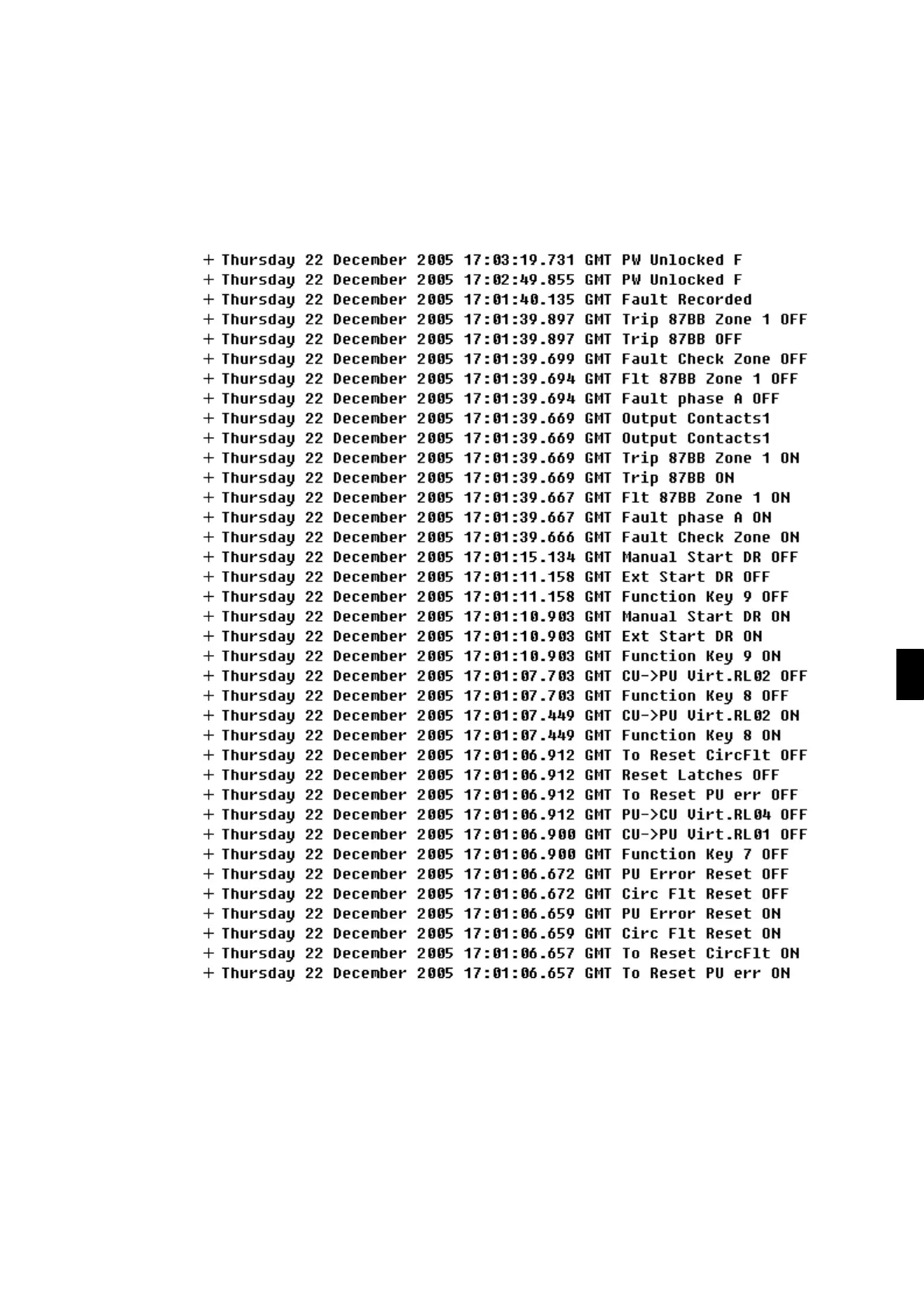

The following shows a P742 example of how various events appear when displayed using
S1:
