GE P742

P74x/EN GS/Na7
Getting Started
(GS) 3
-
28
MiCOM P741, P742, P743
GS
1. To view the available parameters in the board that is connected, click the Get RSTP
Parameters button.
2. To set the configurable parameters such as Bridge Max Age, Bridge Hello Time,
Bridge Forward Delay, and Bridge Priority, modify the parameter values and click
Set RSTP Parameters as below:
S.No Parameter
Default Value
(seconds)
Minimum Value
(seconds)
Maximum Value
(seconds)
1 Bridge Max Age 20 6 40
2 Bridge Hello Time 2 1 10
3 Bridge Forward Delay 15 4 30
4 Bridge Priority 32768 0 61440

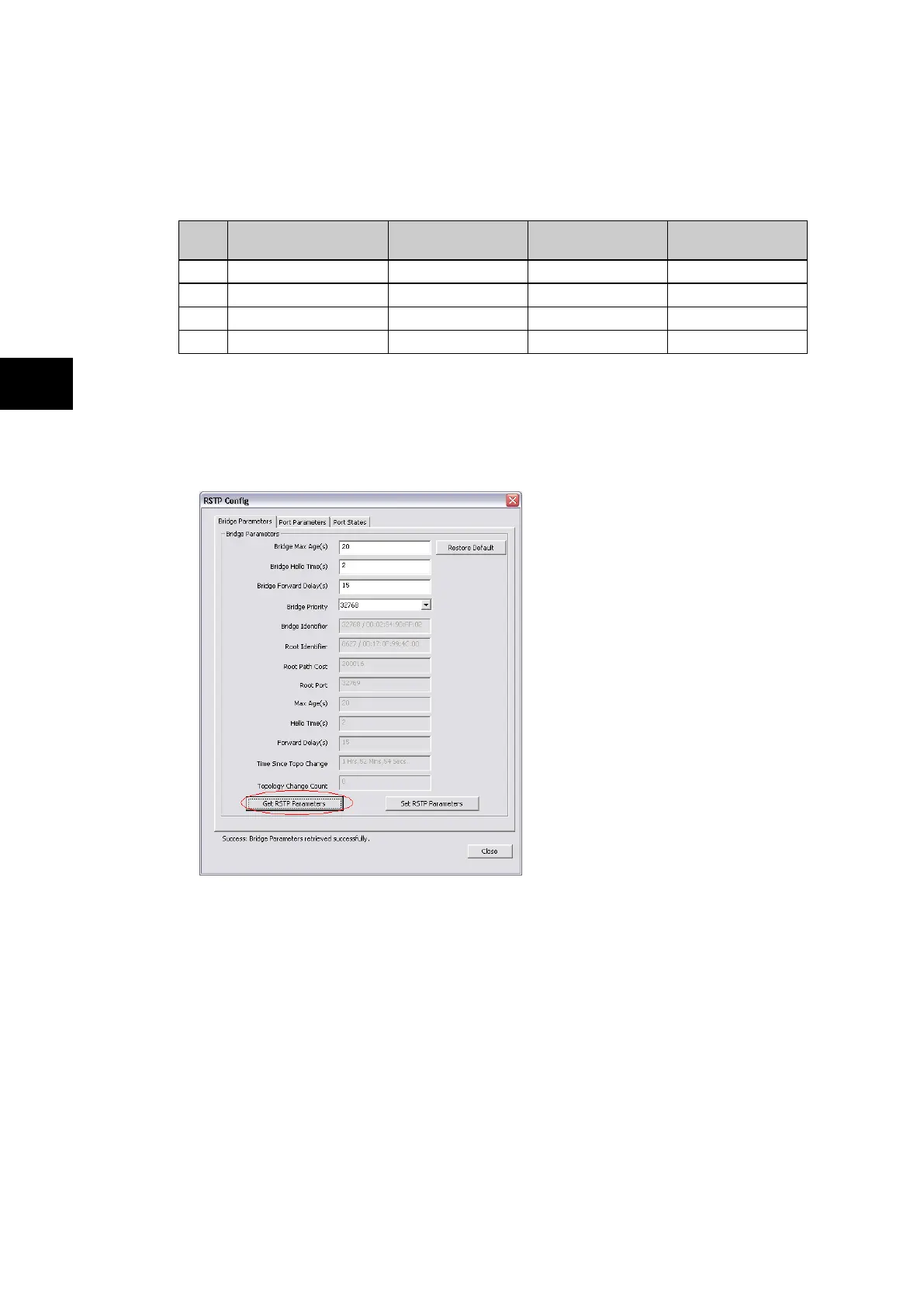

Bridge Parameters
1. To read the RSTP bridge parameters from the board, go to the main window and click
the device address to select the device. The RSTP Config window appears and the
default tab is Bridge Parameters.
2. Click the Get RSTP Parameters button. This displays all the RSTP bridge
parameters from the Ethernet board.
1. To modify the RSTP parameters, enter the values and click Set RSTP Parameters.
2. To restore the default values, click Restore Default and click Set RSTP Parameters.
3. The grayed parameters are read-only and cannot be modified.
Port Parameters
This function is useful if you need to view the parameters of each port.
1. From the main window, click the device address to select the device and the RSTP
Config window appears.
2. Select the Port Parameters tab, then click Get Parameters to read the port
parameters.
3. Alternatively, select the port numbers to read the parameters.
