P74x/EN FD/N
1, P742, P743
(FD) 9-

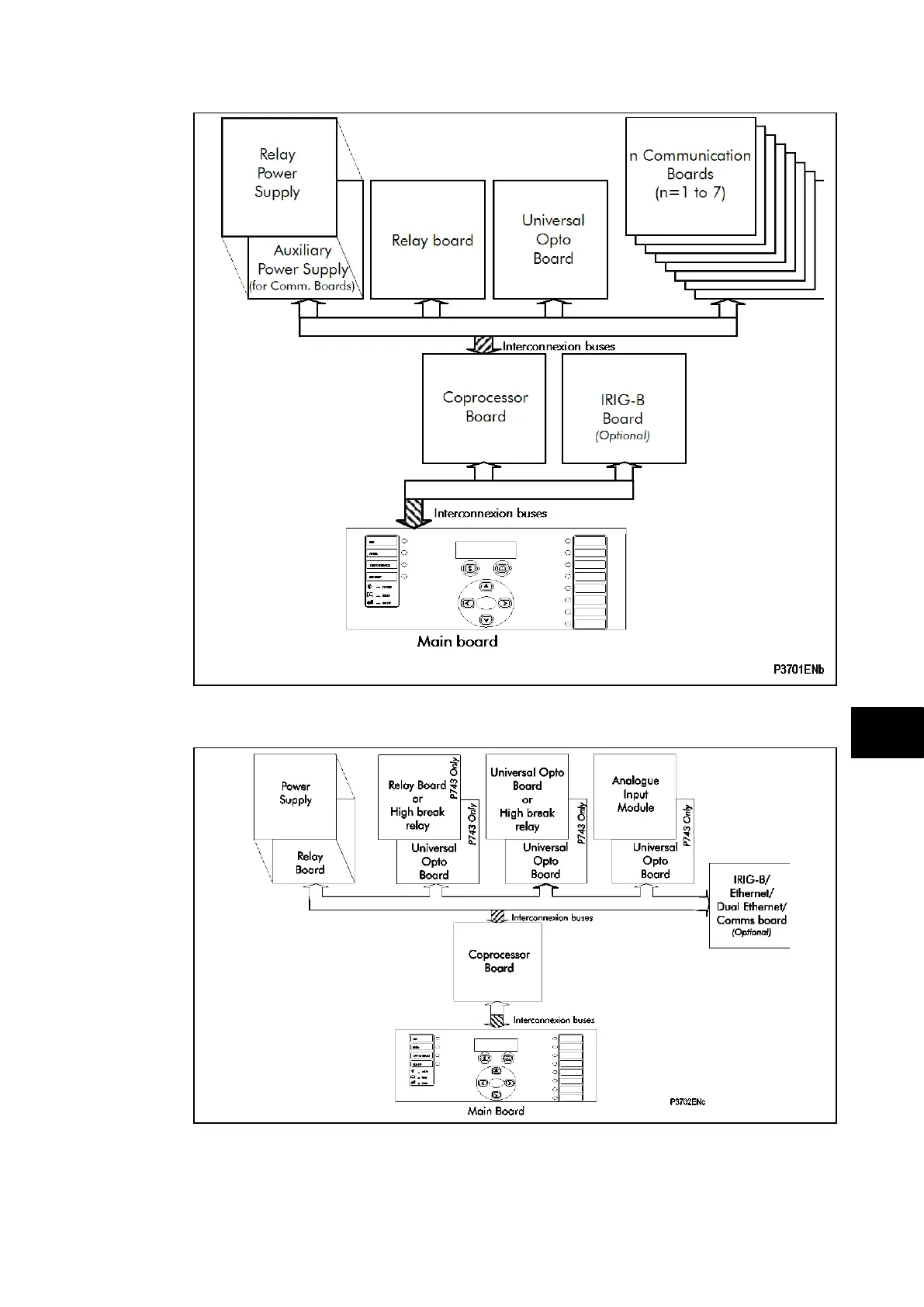

FIGURE 1: P741 ARCHITECTURE
FIGURE 2: P742 & P743 ARCHITECTURE
1.1.8 Second rear comms and EIA(RS)232 InterMiCOM board (optional) (P741 and P743)
The optional second rear port is designed typically for dial-up modem access by protection
engineers/operators, when the main port is reserved for SCADA traffic. Communication is via
