(GS) 3-
2. Enter the required SNTP MAC and server IP address, then click OK. The updated
SNTP server IP address appears in the main screen.
Equipment

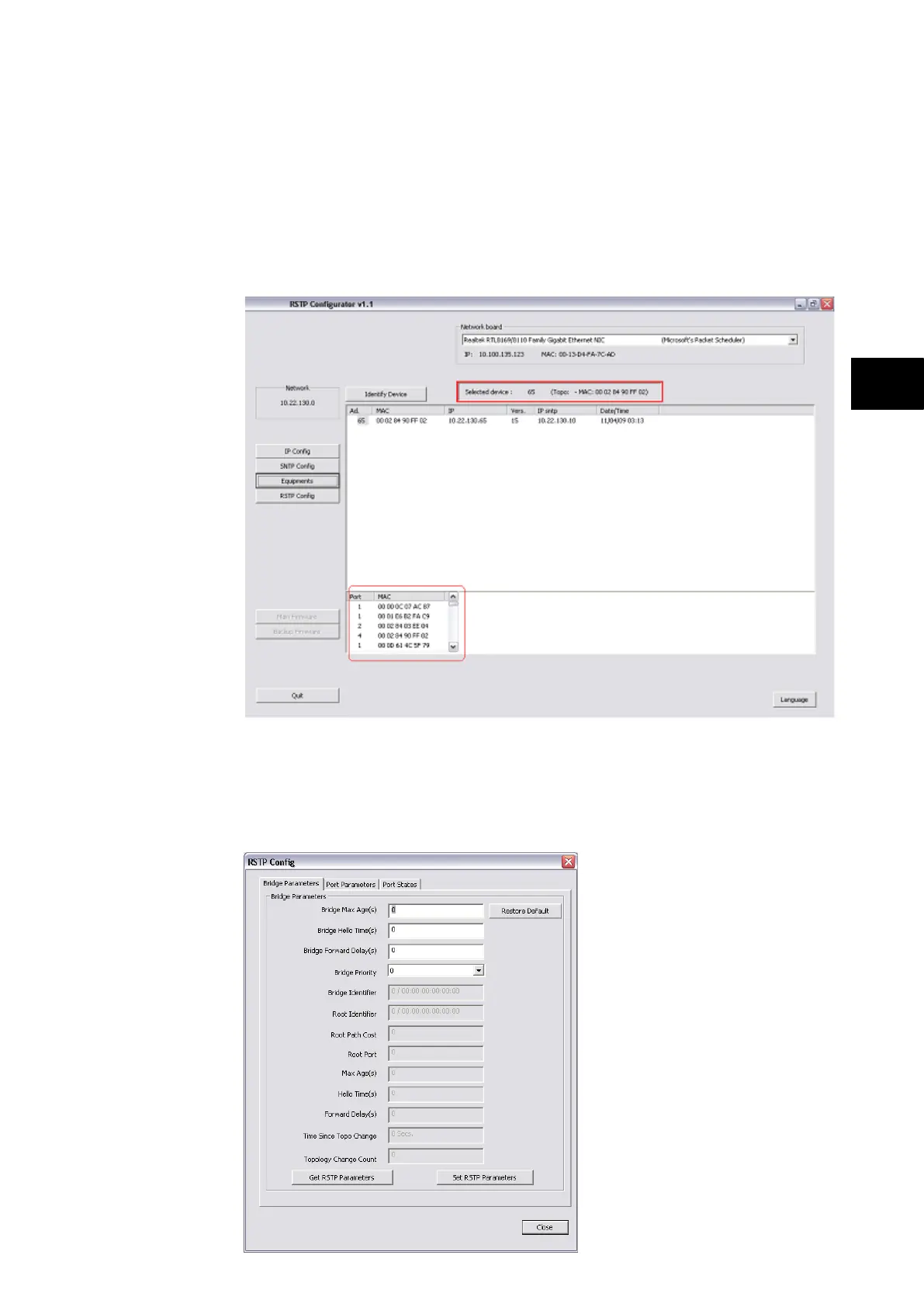

1. To view the MAC addresses learned by the switch, go to the main window and click
the Identify Device button. The selected device MAC address then appears
highlighted.
2. Click the Equipment button. The list of MAC addresses learned by the switch and the
corresponding port number are displayed.
RSTP Parameters
1. To view or configure the RSTP Bridge Parameters, go to the main window and click
the device address to select the device. The selected device MAC address appears
highlighted.
2. Click the RSTP Config button. The RSTP Config screen appears.
To Next Page
