Chapter 3 - Installation 3-67
10) If EchoPAC Network is required, make sure that the EchoPAC Network checkbox is selected, as
shown in Figure 3-49, above, then proceed as follows:
a.) Enter ECHOPAC7-OOOXXX-DB in the Database Name field.
b.) Under Store Info, select the appropriate checkbox Hard Drive, Removable Media, or Both,
as required.
c.) Enter \\ECHOPAC7-000XXX\Archive in the Placement of Image Files field.
d.) Enter \\ECHOPAC7-000XXX\Archive in the Placement of Report Files field.
OR
If Image Vault Server is required, make sure that the Image Vault Server checkbox is selected, as
shown in Figure 3-50 below, then proceed as follows:
a.) Enter ECHOPAC7-OOOXXX-DB in the Database Name field.
b.) Under Store Info, make sure that the Hard Drive checkbox is selected.
c.) Enter \\ECHOPAC7-000XXX\Archive in the Placement of Image Files field.
d.) Select the Allow Multiframe and/or Allow Raw Data checkboxes, as required.
(It is recommended to leave both checkboxes activated, as shown in Figure 3-50 below).
e.) Under the Image Settings field, select the required settings.

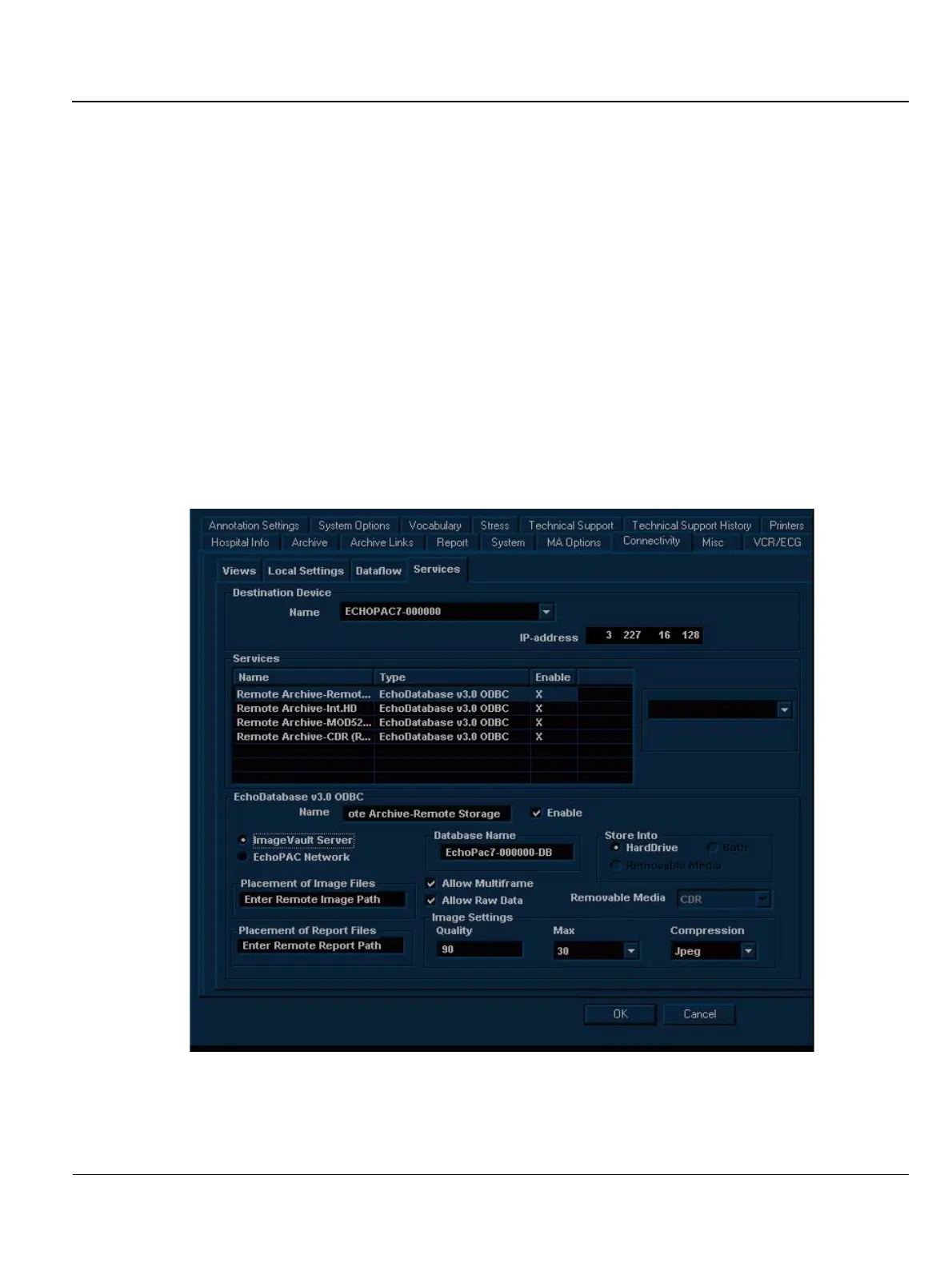

Figure 3-50 Services Tab - Image Vault Server Expanded
11) Trackball to OK and press Select.
