8) Slide the UP-21MD Color Video Printer into the side compartment, as shown in Figure 8-132 below.

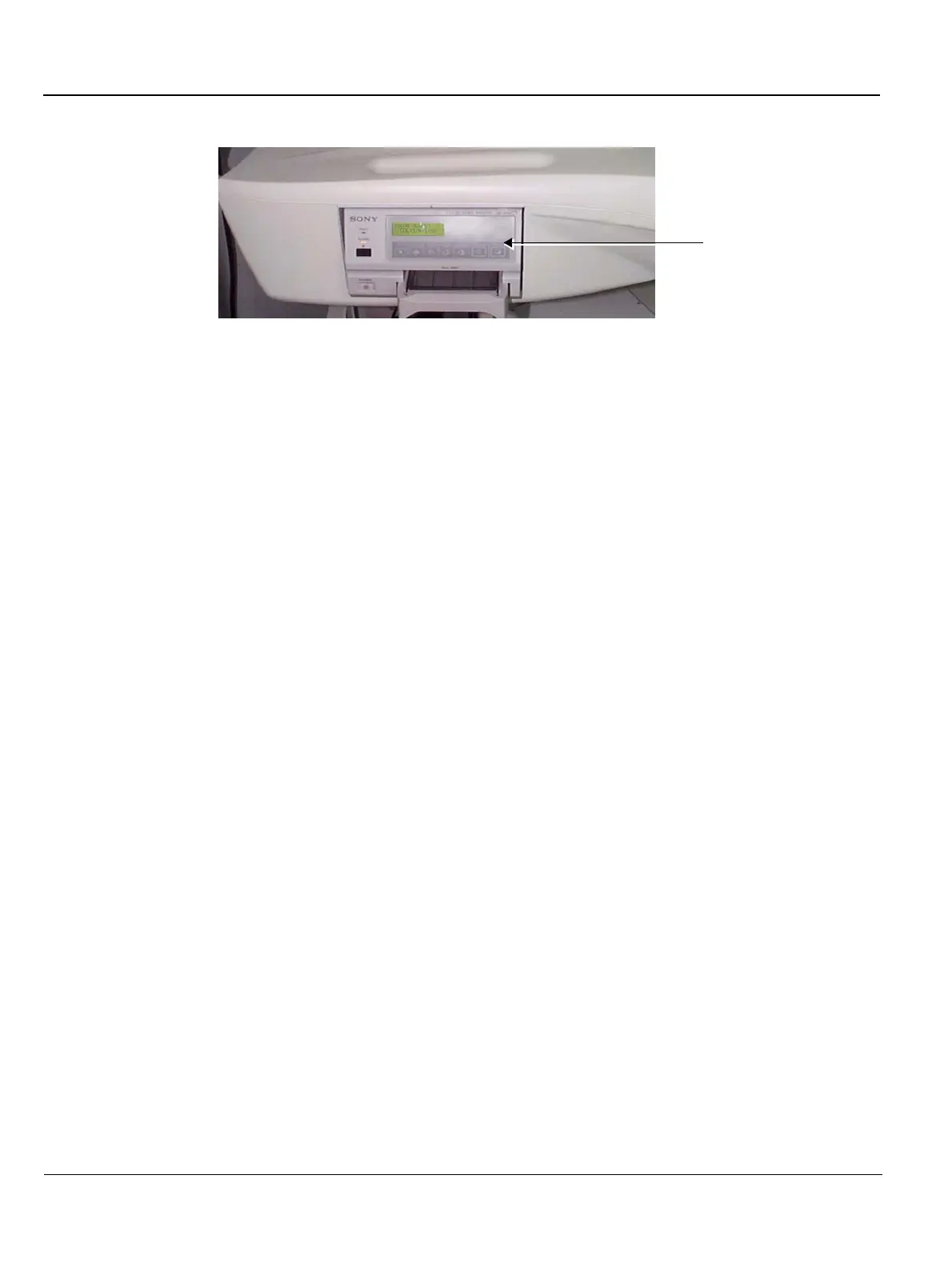

Figure 8-132 Sony UP-21MD Color Video Printer Installed on the Vivid™ 4
8-8-5-4 Sony UP-21MD Color Video Printer Removal Procedure
1) Shut down the Vivid™ 4 ultrasound unit, as described in Chapter 3 - Installation.
2) Slide the UP-21MD Color Video Printer out of the side compartment.
3.) Disconnect all the cables and remove the printer from the Vivid™ 4.
4.) Make sure that all the loose cables are placed safely in the side compartment.
UP-21MD
Color Video Printer
