3-46
Chapter 3 Settings and Measurement
Contents General Description
Checks and Preparation
Settings and Measurement
Example of Use Specification

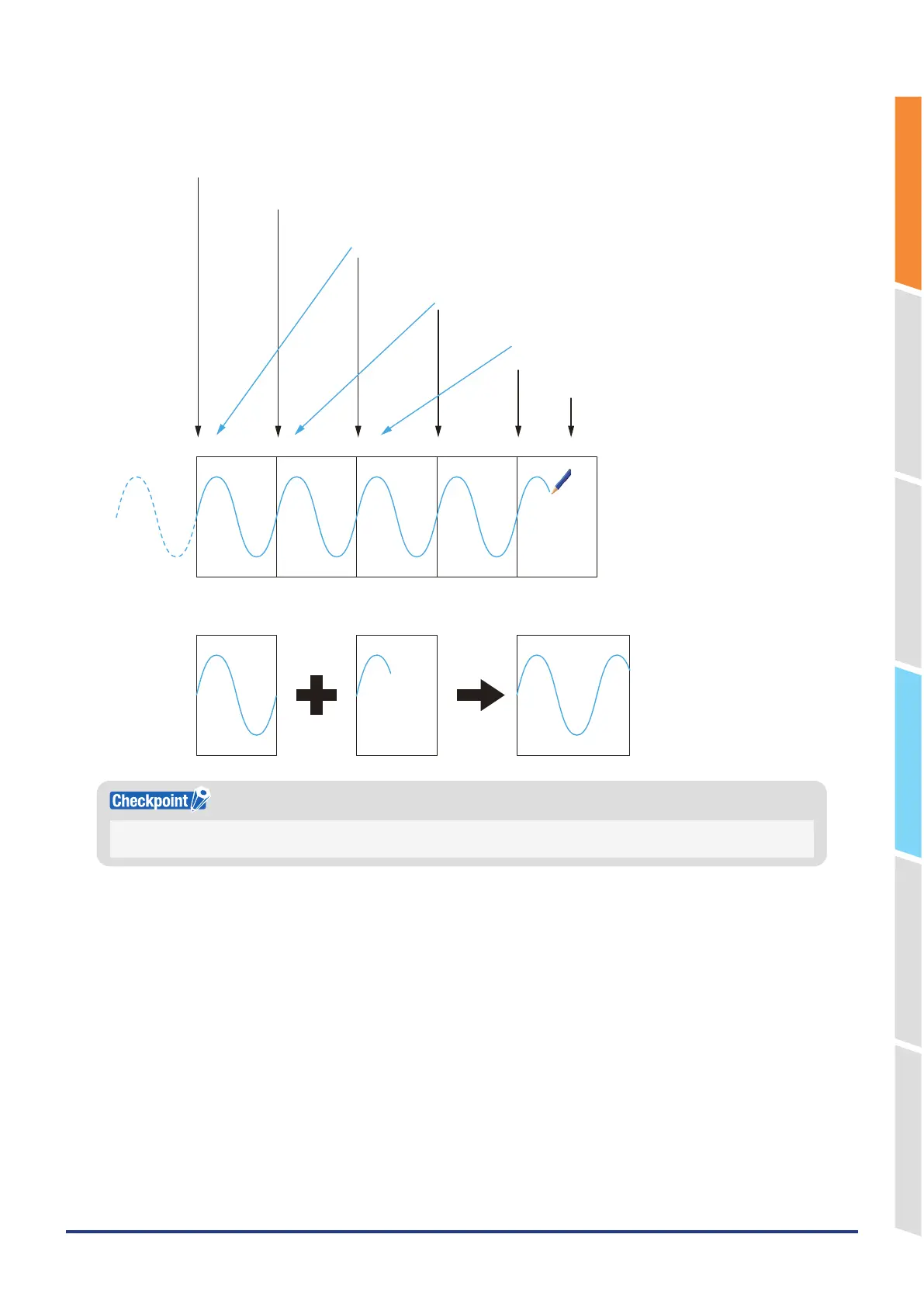

Ring Capture Function
File1 File2 File3 File4 File5
File4 File5 Filexx••• : Saved
When capturing is stopped at the STOP point above, the File 4 and File 5 remain.
These files are consolidated into one file and it is saved. Then the ring capture is completed.
Start capturing data
Captured data is saved into the File 1.
When the specified number of data are saved into the File 1, the captured data is saved into the File 2.
The number of data is specified in the “Ring Capture Points” menu.
When the specified number of data are saved into the File 2,
the captured data is saved into the File 3.
File 1 is deleted at this point.
When the specified number of data is saved into the File 3,
the captured data is saved into the File 4.
File 2 is deleted at this point.
When the specified number of data is saved into the File 4,
the captured data is saved into the File 5.
File 3 is deleted at this point.
* Repeat this action.
Stop capturing data
•
Twice as many files as the Number of Ring Capture Points will be created at the maximum.
•
If ring capture is On, the backup function is not available.
