H3C S3100 Series User Manual

4-3

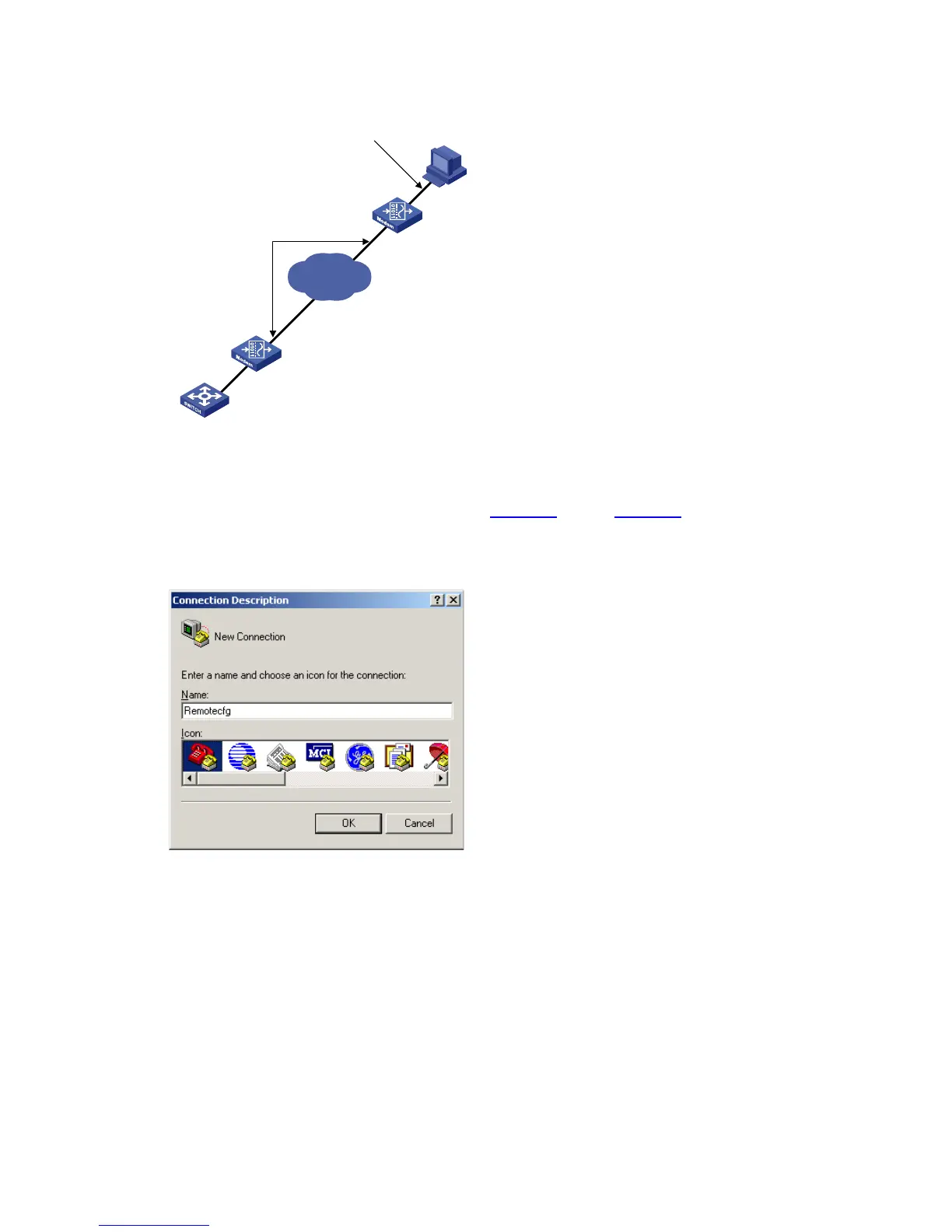

Figure 4-1 Establish the connection by using modems
Console port
PSTN
Telephone line
Modem serial cable
Telephone number
of the romote end:
82882285
Modem
Modem
4) Launch a terminal emulation utility on the PC and set the telephone number to call the modem
directly connected to the switch, as shown in
Figure 4-2 through Figure 4-4. Note that you need to
set the telephone number to that of the modem directly connected to the switch.
Figure 4-2 Create a connection
