Displaying QoS Profile Configuration
After the above configuration, you can execute the display command in any view to view the running
status of the QoS profile and verify the configuration.
Table 2-5 Display QoS profile configuration
Operation Command Description
Display QoS profile
configuration
display qos-profile { all | name
profile-name | interface interface-type
interface-number | user user-name }
Available in any view
Configuration Example
QoS Profile Configuration Example
Network requirements
All departments of a company are interconnected through a switch. The 802.1x protocol is used to
authenticate users and control their access to network resources. A user name is someone, and the
authentication password is hello. It is connected to Ethernet 1/0/1 of the switch and belongs to the
test.net domain.
It is required to configure a QoS profile to limit the rate of all the outbound IP packets of the user to 128
kbps and configuring to drop the packets exceeding the target packet rate.
Network diagram

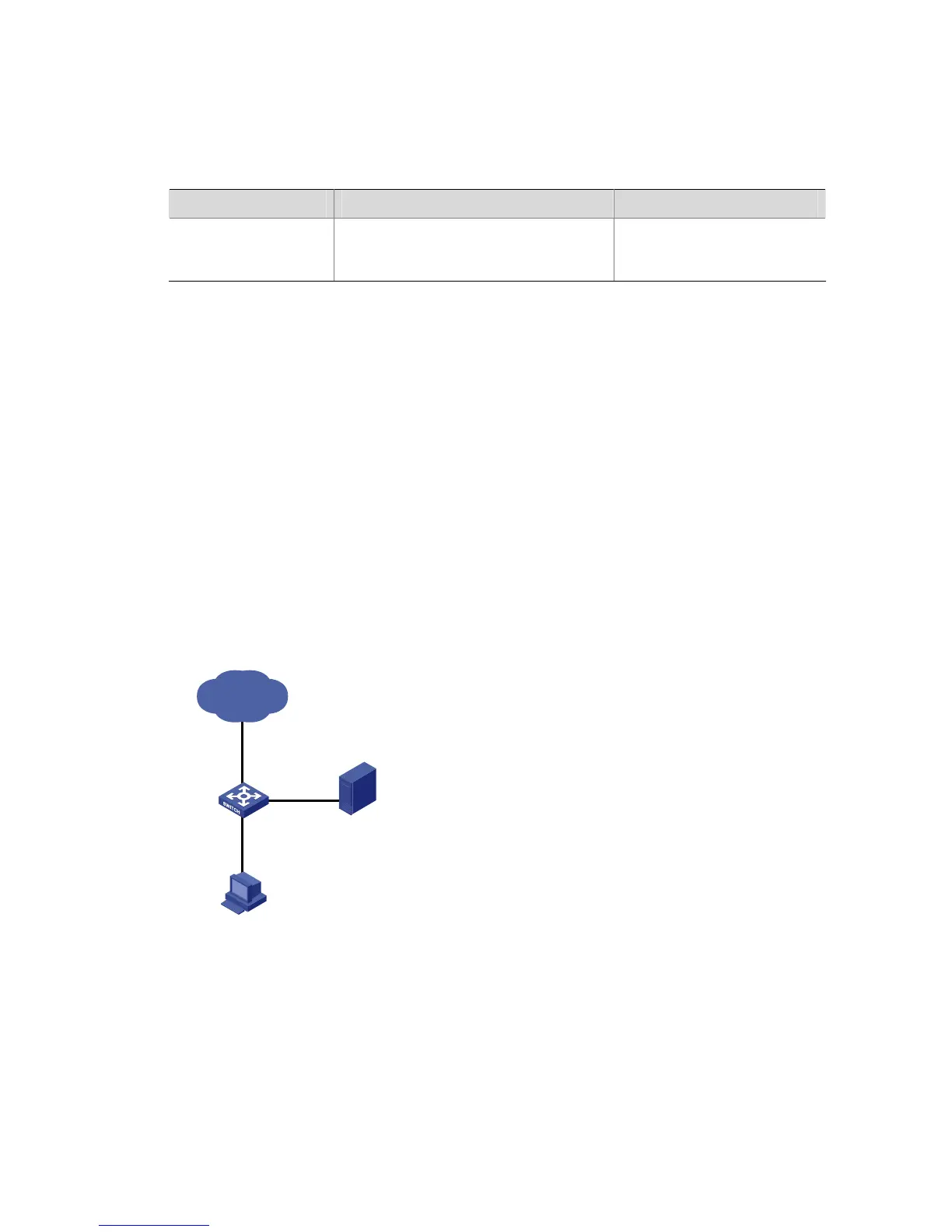

Figure 2-1 Network diagram for QoS profile configuration
User
Switch
Network
AAA Server
Eth1/0/1
Configuration procedure
1) Configuration on the AAA server
# Configure the user authentication information and the matching relationship between the user name
and the QoS profile. Refer to the user manual of the AAA server for detailed configuration.
2) Configuration on the switch
# Configure IP addresses for the RADIUS server.
